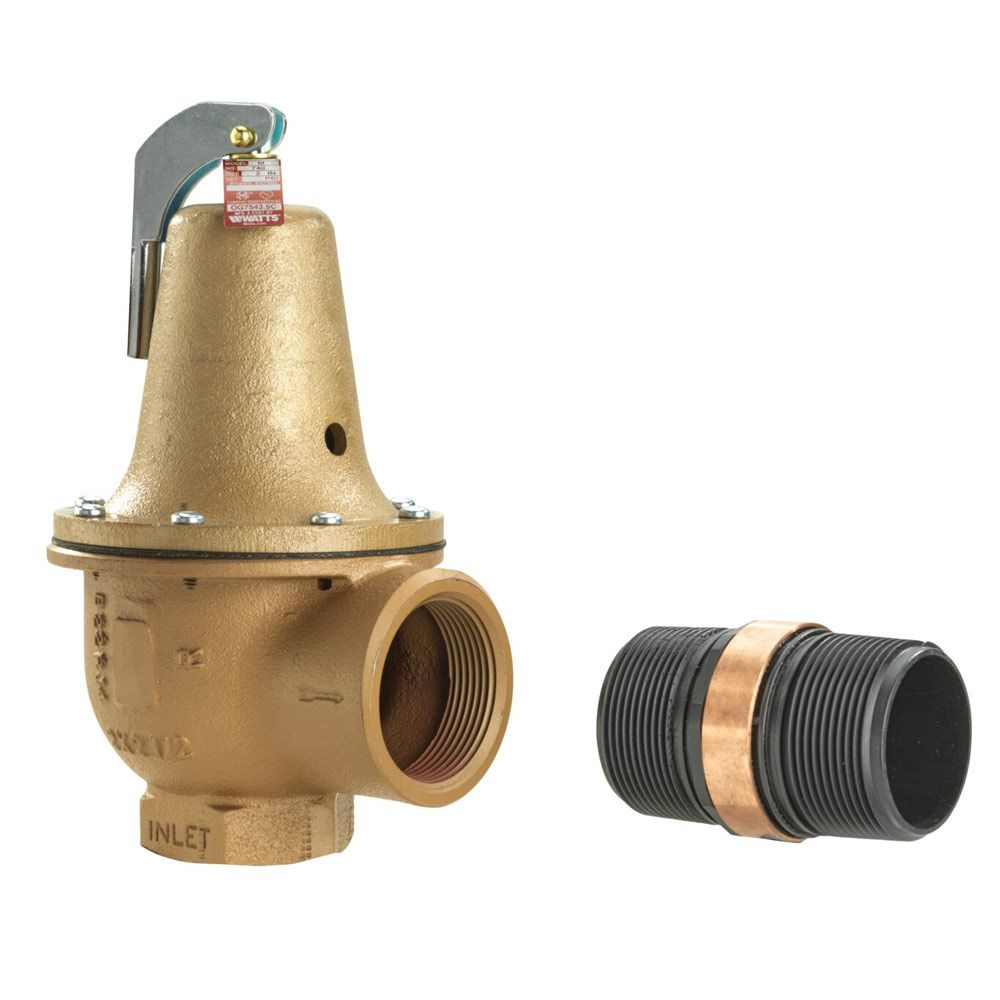

Watts F384292 740-050-FS Pressure Relief Valve 50 PSI REPLACEMENT MPN

Product Description

The Watts F384292 model 740-050-FS pressure relief valve has a 2 inch NPTF female inlet, 2-1/2 inch NPTF female outlet, and a pressure relief setpoint of 50 psi with a maximum capacity of 7,672,000 btu/hr. The valve is designed for hot water space heating boiler applications, protecting against excessive pressure. It features an iron body, non-metallic disc-to-metal seating, and test lever.

• 2 inch NPTF female inlet and 2-1/2 inch NPTF female outlet.
• Pressure relief setpoint of 50 psi and maximum capacity of 7,672,000 btu/hr.
• Includes a nonrestrictive discharge drain line flood sensor with SentryPlus Alert technology.

Product Highlights

The Watts pressure relief valve is suitable for hot water boiler applications, featuring a flood sensor and robust iron body.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: F384292

Technical Specifications

• MPN: F384292
• Brand: Watts
• Model: 740-050-FS-2
• Body Material: Iron Body
• Valve Application: Hot Water
• Valve Size: 2"
• Valve Connection: NPT
• Piping Configuration: Angle
• Max Pressure: 50 psi
• UPC: 098268587906
• Replaces: 740-050-2, 0384292
• Inlet Connection Size: 2 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPTF
• Outlet Connection Size: 2 1/2 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPTF
• Part Number: F384292
• Pressure Relief Setting-PSI: 50
• Series: 740
• Maximum Working Pressure-PSI: 40
