Watts F344276 340/340X Re-Seating T&P Relief Valve 1-1/2 inches

Product Description

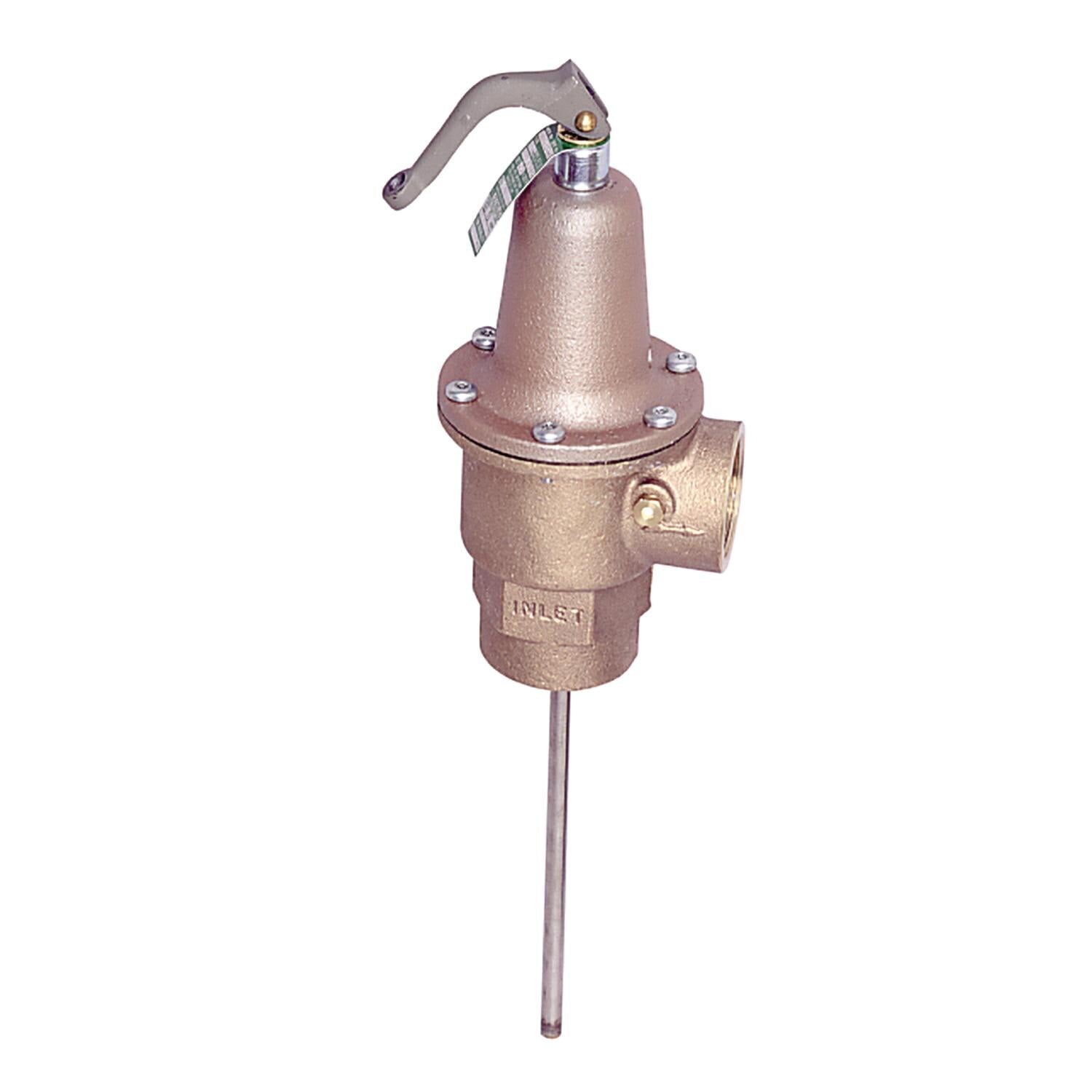

The WATTS F344276 automatic reseating temperature and pressure relief valve features a 1 1/2 inch NPTF female inlet and outlet, and a 3 inch stainless steel thermostat. The valve has a pressure relief setpoint of 150 psi and a temperature relief setpoint of 210 degrees F. It includes a nonrestrictive discharge drain line flood sensor with SentryPlus Alert technology.

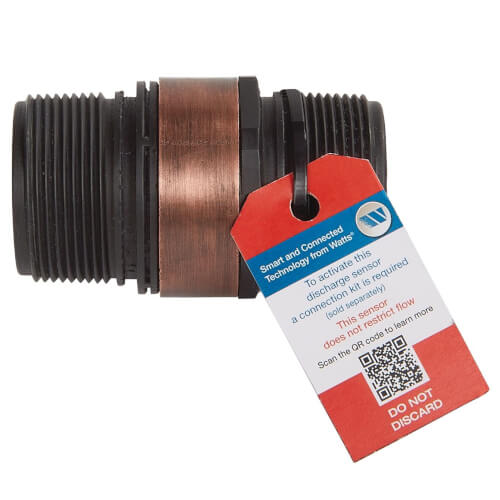

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Requires purchase of activation kit to activate sensor
• Bronze body

Product Highlights

Automatic reseating temperature and pressure relief valve with flood sensor connectivity for commercial applications.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: F344276

Technical Specifications

• Body Material: Bronze
• Inlet Connection Size: 1-1/2 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPTF
• Lead Free: NO
• Maximum Temperature-Fahrenheit: 210
• Maximum Working Pressure-PSI: 112
• Outlet Connection Size: 1-1/2 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPTF
• Pressure Relief Setting-PSI: 150
• Temperature Relief-Fahrenheit: 210
• Thermostat Material: Stainless Steel
• Thermostat Probe Length: 3 IN
• Size: 1-1/2"
• Thermostat Length: 3"
• CSA Rating (BTU/HR): 1150000
• Inlet Type: FNPT
• ASME Rating (BTU/HR): 6379000
• Pressure Set Point: 150 psi
• Outlet Type: FNPT
• Maximum Pressure: 150 psi
• Brand: Watts
• Protection Type: Temperature And Pressure
• Series: 340
• Manufacturer (Brand): Watts
• Manufacturer Item Number: F344276
• Material: Bronze
• Pressure Relief: 150 PSI
• Feature: Genuine OEM
• Valve Size: 1 1/2 Inch
• Model Number: 340
