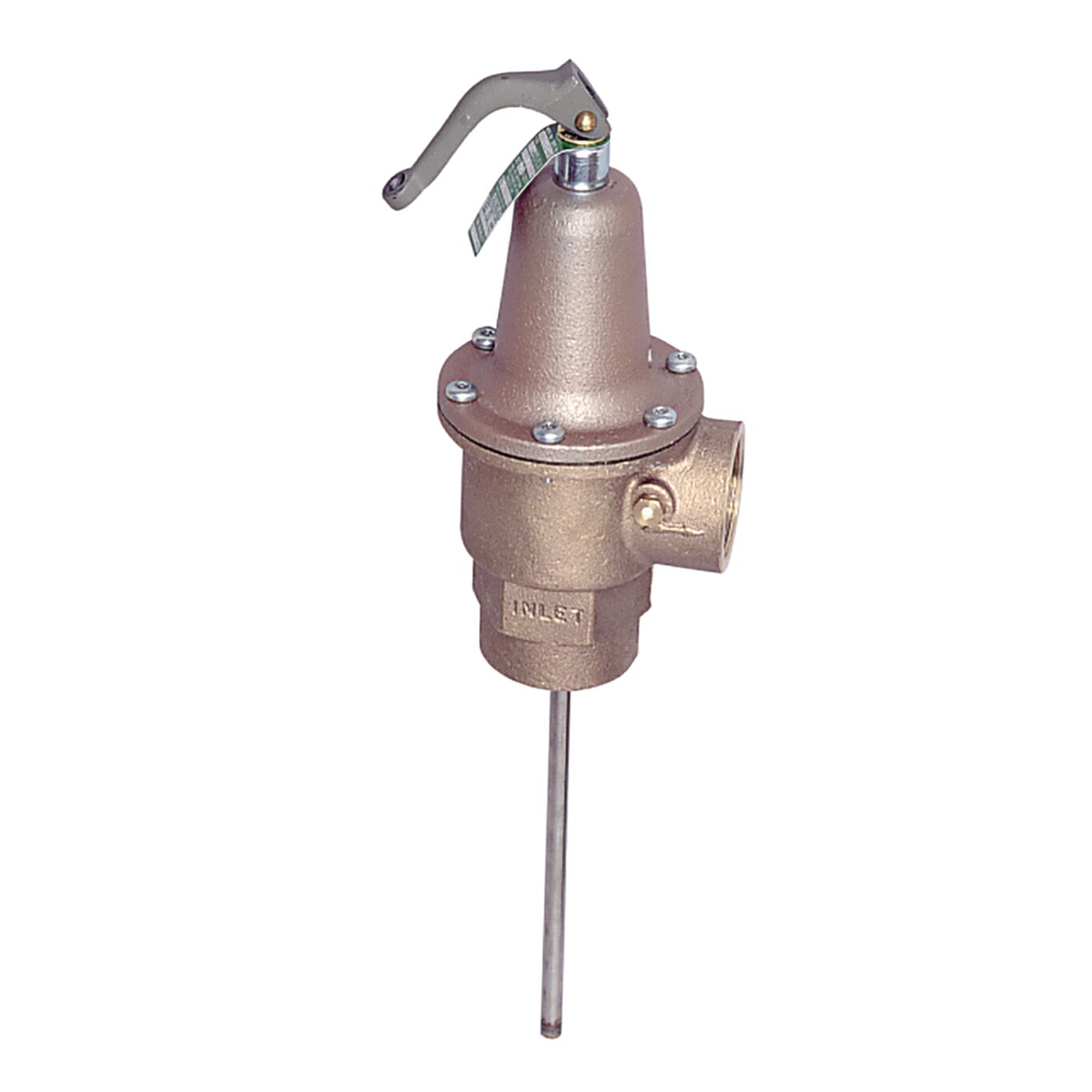

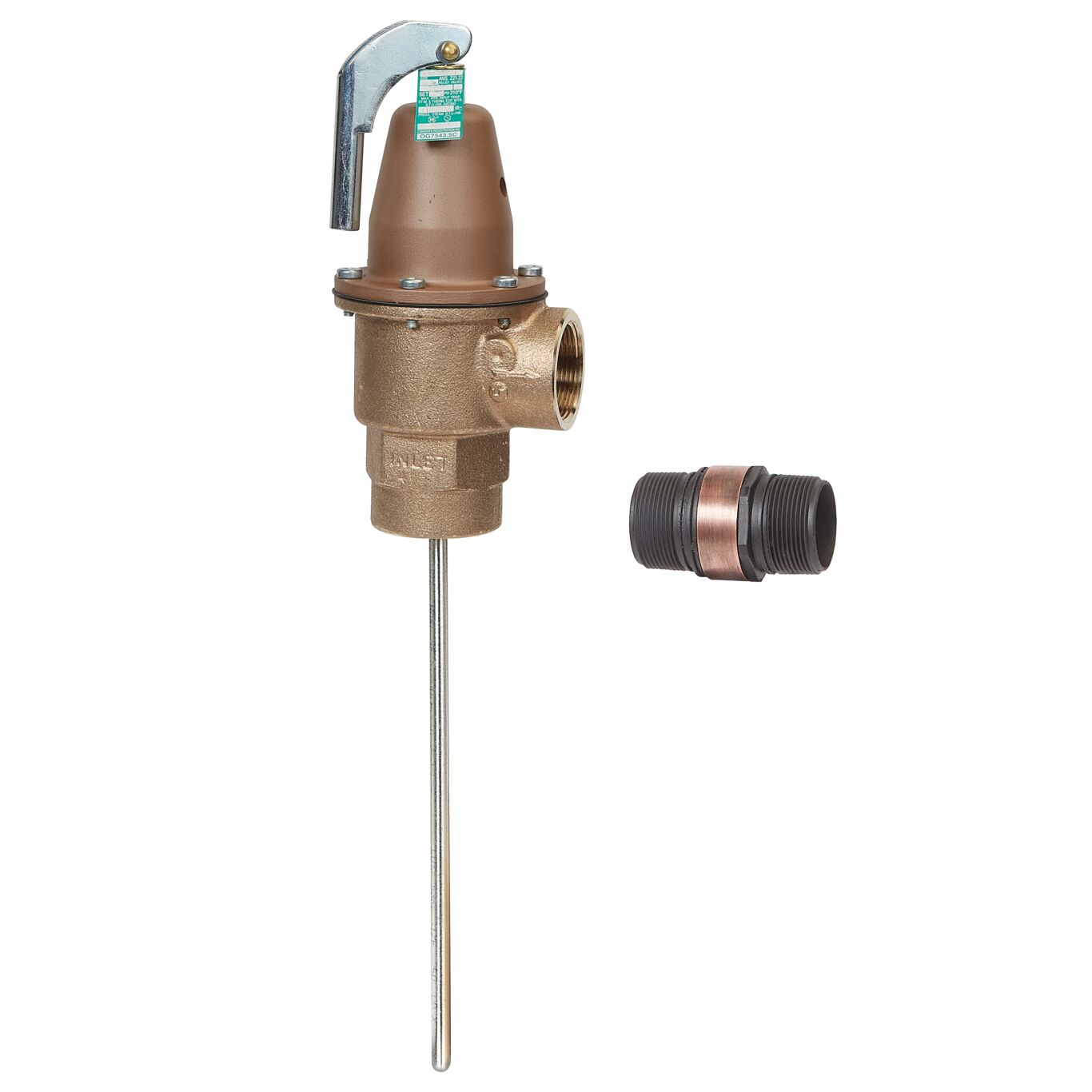

WATTS F344116 1 1/2 IN 340-3 Bronze Automatic Reseating Temperature and Pressure Relief Valve

Product Description

The WATTS F344116 is an automatic reseating temperature and pressure relief valve designed for effective protection of hot water supply tanks. It features a one and a half inch NPTF female inlet and outlet and a three inch stainless steel thermostat. This valve operates at a pressure relief setpoint of 125 psi and a temperature relief setpoint of 210 degrees Fahrenheit. It is suitable for commercial applications and includes a flood sensor to monitor discharge.

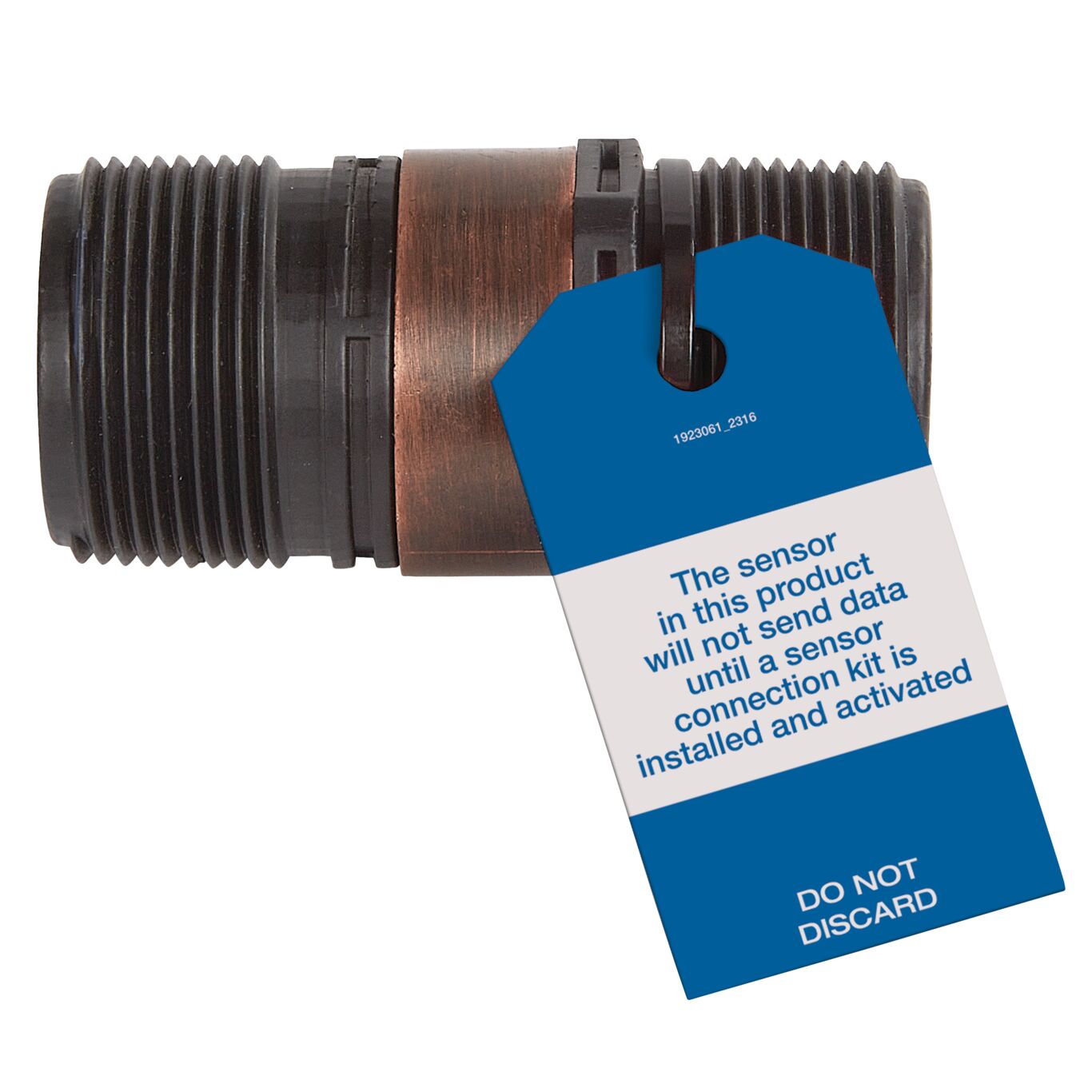

• Includes SentryPlus Alert technology flood sensor to detect excessive water discharge.
• Requires activation kit for flood sensor functionality.
• Constructed with a durable bronze body.

Product Highlights

This valve ensures safety and compliance with pressure and temperature control in heating systems.

Product Information

Standard Information

• Brand: WATTS
• Part Number: F344116

Technical Specifications

• Body Material: Bronze
• Inlet Connection Size: 1 1/2 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPTF
• Maximum Temperature: 210°F
• Outlet Connection Size: 1 1/2 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPTF
• Pressure Relief Setting: 125 psi
• Protection Type: Temperature and Pressure
• Series: 340
• Thermostat Material: Stainless Steel
• Thermostat Probe Length: 3 IN
• Pressure Relief Range: 75 to 150 psi
