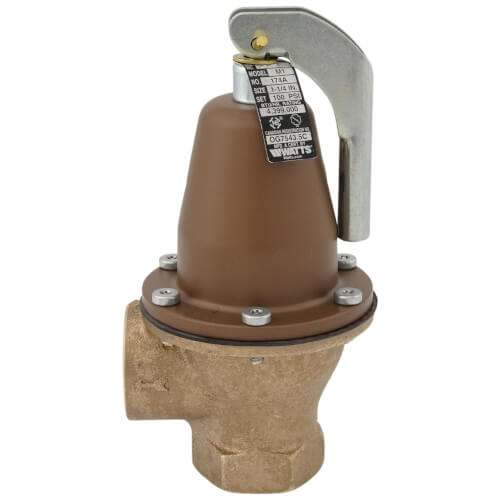

Watts F275950 1 1/4 174A 100 FS

Product Description

The Watts F275950 is a valve designed for water media applications. This valve belongs to the 174A series and features automatic reseating functionality. It has a nominal size of one and one-quarter inches with female NPTF end style. The valve operates at a maximum pressure of seventy-five psi and is rated for temperatures up to two hundred fifty degrees Fahrenheit.

• Requires activation kit purchase to enable sensor
• Automatic reseating mechanism
• Non-mechanical seat to disc alignment

Product Highlights

This valve is ideal for hot water space heating boiler applications, providing protection against excessive pressure.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Part Number: F275950

Technical Specifications

• Body Material: Bronze
• Nominal Size: 1-1/4 in
• Pressure Rating: 75 psi
• Temperature Rating: 250 deg F
• Media: Water
• End Style: Female NPTF
• Series: 174A
• Dimensions: 8-1/2 in H x 4-1/4 in L
• Trim Material: Non-Metallic
• Domestic/Import: Domestic
