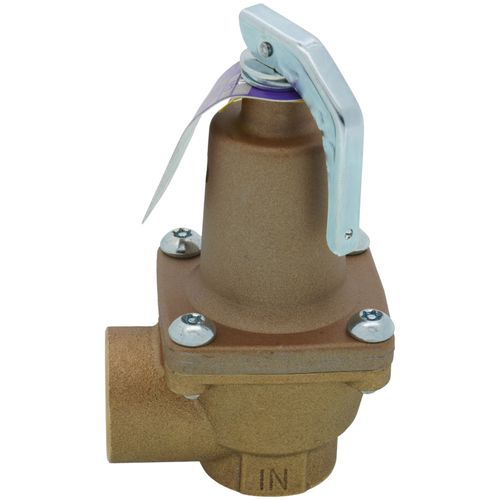

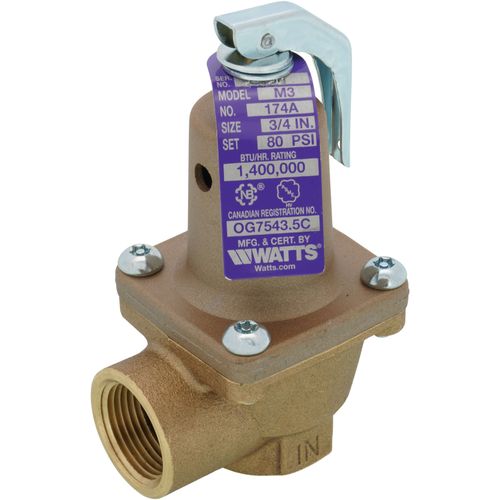

Watts F274612 174A Relief Valve 80 psi 3/4 inches

Product Description

The Watts F274612 174A relief valve features a 3/4 inch NPTF female inlet and outlet and a 80 psi pressure relief setpoint. It is designed for hot water space heating boiler applications to protect against excessive pressure. The valve has a bronze body, non-metallic disc-to-metal seating, and test lever. It includes a flood sensor with SentryPlus Alert technology to detect excessive water discharges.

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Requires purchase of activation kit to activate sensor
• Bronze body

Product Highlights

This valve is ideal for heating applications, offering reliable pressure relief and flood detection capabilities.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: F274612

Technical Specifications

• Body Material: Bronze
• Inlet Connection Size: 3/4 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPTF
• Lead Free: NO
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPTF
• Pressure Relief Setting-PSI: 80
• Capacity: 1320000 BTU/hr
• Application: Heating
• Pressure Set Point: 80 psi
• Size: 3/4"
• Material: Bronze
• Connection Type: Threaded
• Thread Type: Female
• Temperature Range (F): 250°F Max
• ASME: Yes
• Brand: Watts
• Part Number: F274612
• Series: 174A
