Watts F274598 3/4 174A 075 FS

Product Description

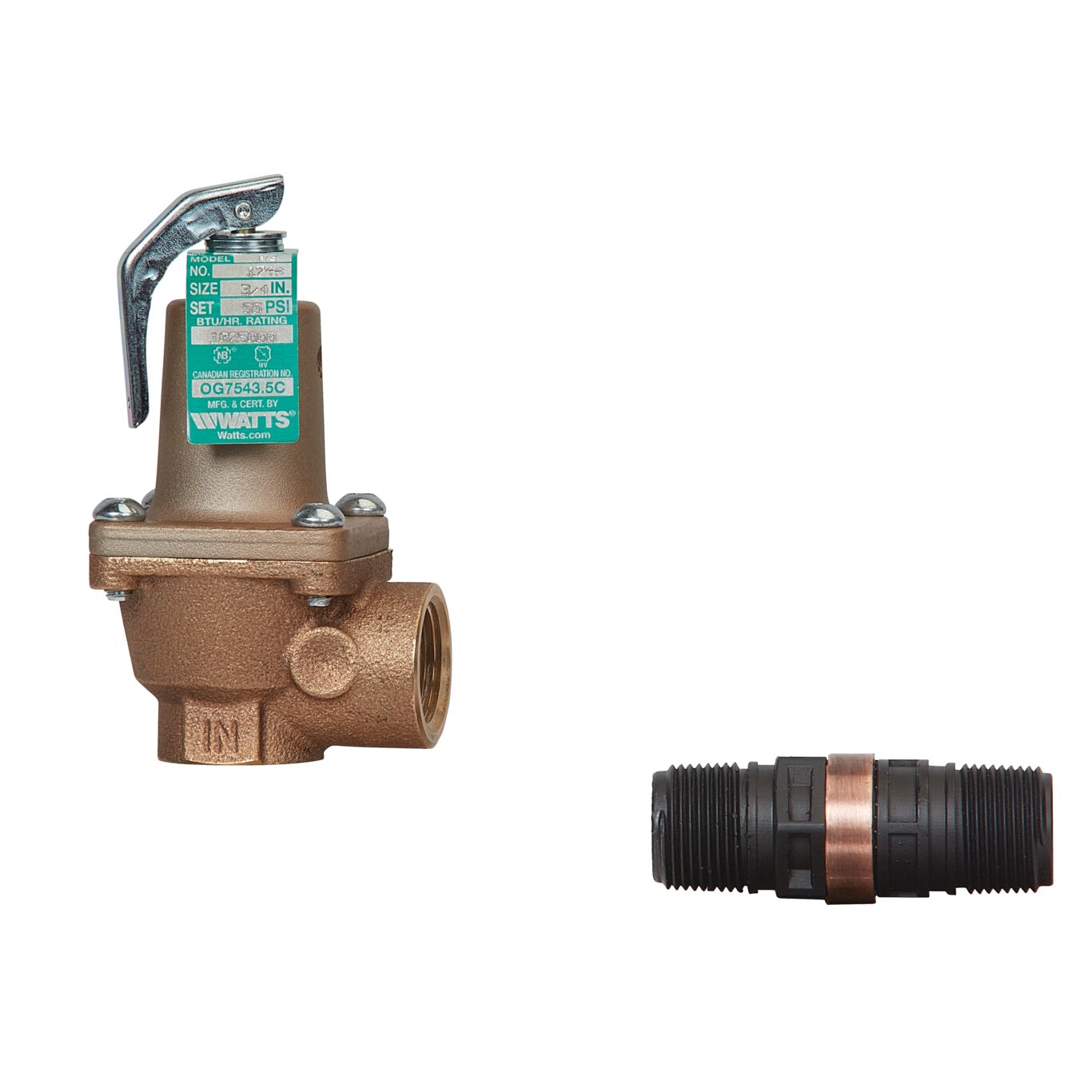

The Watts Regulator Company F274598 is an automatic reseating valve designed for use in hot water space heating boiler applications. This valve connects through a three-quarter inch female NPTF end style and operates at a pressure of fifty-six psi. It is constructed with a bronze body and non-metallic trim, suited for water media, and has a temperature rating of two hundred fifty degrees Fahrenheit.

• Automatic reseating function
• Non-mechanical seat to disc alignment
• Designed for safe pressure relief

Product Highlights

This valve protects against excessive pressure while also resisting corrosion.

Product Information

Standard Information

• Brand: Watts Regulator Company
• MPN: F274598

Technical Specifications

• Body Material: Bronze
• Dimensions: Four and a half inches high by two and three-quarters inches long
• End Style: Female NPTF
• Media: Water
• Nominal Size: Three-quarter inch
• Pressure Rating: Fifty-six psi
• Series: 174A
• Temperature Rating: Two hundred fifty degrees Fahrenheit
• Trim Material: Non-Metallic
