Watts F163720 1 IN 40XL-4 Bronze Automatic Reseating Temperature and Pressure Relief Valve, 125 psi, 210 degree F, 4 IN Coated Thermostat

Product Description

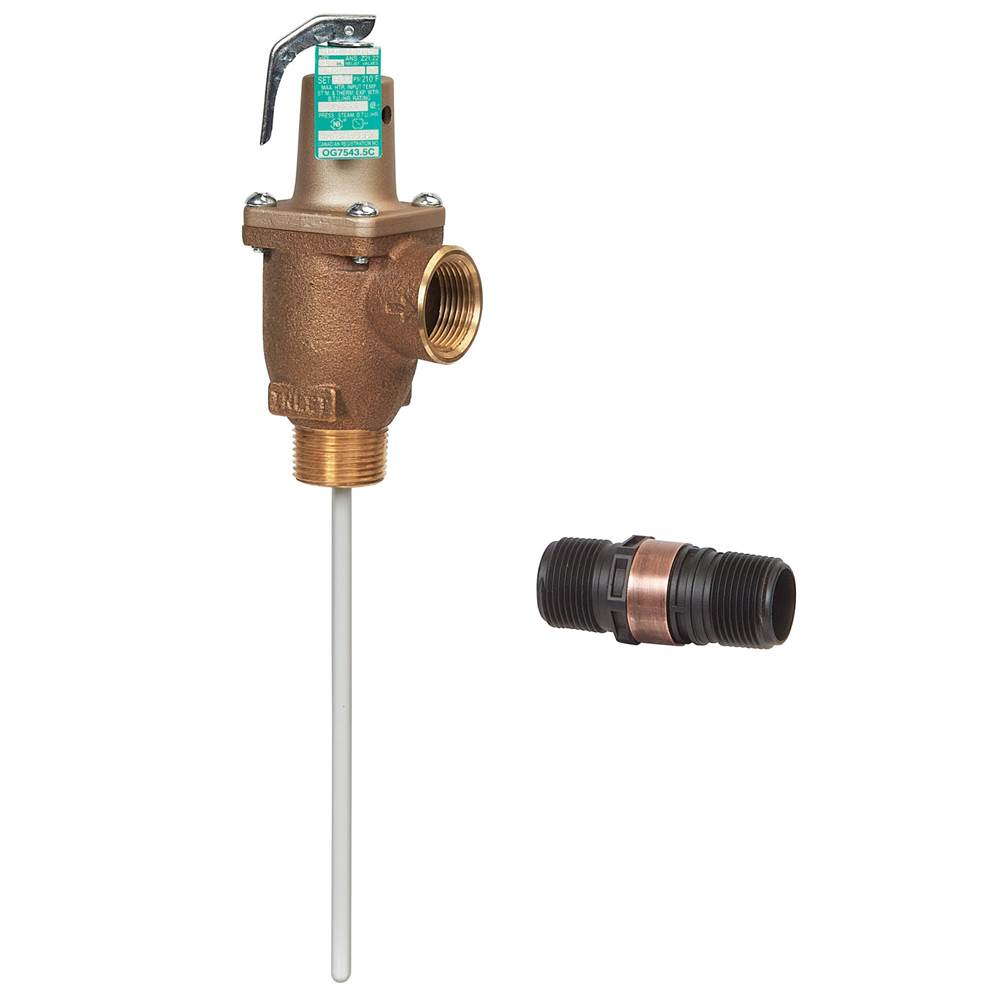

The WATTS F163720 automatic reseating temperature and pressure relief valve features a 1 inch NPTF male inlet, 1 inch NPTF female outlet, and a 4 inch coated extension thermostat. With a pressure relief setpoint of 125 psi and a temperature relief setpoint of 210 degrees F, it provides protection for hot water supply tanks and heaters in commercial applications. Includes a flood sensor to detect excessive water discharge.

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Requires purchase of activation kit to activate sensor
• Bronze body

Product Highlights

Automatic reseating temperature and pressure relief valve with bronze body, tamper resistant bonnet screws, and flood sensor.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: F163720
• Country of Origin: USA

Technical Specifications

• Body Material: Bronze
• Brand: Watts
• EAN: 098268566284
• Inlet Connection Size: 1 IN
• Inlet Connection Type: Male Threaded
• Inlet Thread Type: NPTF
• Lead Free: NO
• Maximum Temperature-Fahrenheit: 210
• Outlet Connection Size: 1 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPTF
• Part Number: F163720
• Pressure Relief Setting-PSI: 125
• Protection Type: Temperature And Pressure
• Series: 40L
• Temperature Relief-Fahrenheit: 210
• Thermostat Material: Nylon Coated Copper
• Thermostat Probe Length: 4 IN
• Actuator Type: Test Lever
• Domestic/Import: Domestic
• End Style: Male NPTF x Female NPTF
• Media: Water
• Nominal Size: 1 in
• Temperature Rating: 210 deg F
• Trim Material: Nylon Coated Copper
• Application Type: For commercial applications to provide protection for hot water supply tanks and hot water heaters
• Standard Approvals: ASME Rated, CSA, FHA requirements, ANSI Z21.22, Military Spec. MIL-V-136-12D, Type I
• Inlet Size: 1 inch NPTF male
• Outlet Size: 1 inch NPTF female
• Thermostat Extension: 4 inch coated
• Pressure Relief Setpoint: 125 psi
• Temperature Relief Setpoint: 210 degrees F
• Product Type: Relief Valve
• Width: 2.5"
• Height: 11"
• Depth: 3"
• Material: Bronze
• Prop65 Warning: Lead
