Watts F156731 40XL Bronze Automatic Re-Seating Temperature and Pressure Relief Valve 3/4 in MNPT x FNPT Replacement MPN

Product Description

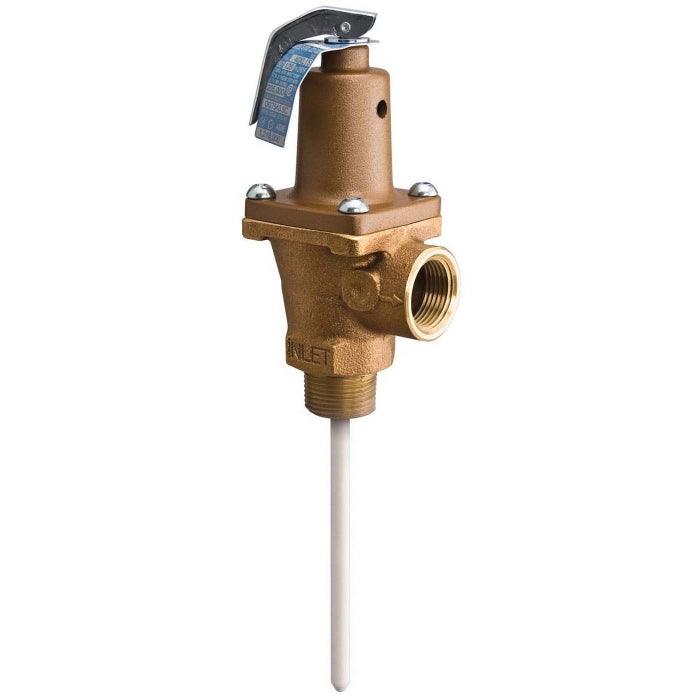

The Watts F156731 is a 40XL bronze automatic re-seating temperature and pressure relief valve. This valve has a three-quarter inch connection with male and female threads. It provides essential protection against excessive temperature and pressure in water heating systems.

• Automatic re-seating mechanism
• Pressure rating of one hundred fifty psi
• Temperature rating of two hundred ten degrees Fahrenheit

Product Highlights

This relief valve is designed for commercial water heater applications. It allows for safe operation of hot water supply tanks and heaters by releasing excess pressure and steam. The valve features a five-inch thermostat probe that can be installed in hot water outlets, providing continuous monitoring and safety.

Product Information

Standard Information

• Brand: Watts
• Manufacturer: Watts

Technical Specifications

• Capacity: 205000 Btu/hr CSA, 1438000 Btu/hr ASME
• Connection Size: 3/4 in
• Connection Type: MNPT x FNPT
• Dimensions: 5-5/8 in H x 2-5/8 in W
• Material: Bronze
• Operator Type: Test Lever Handle
• Pressure Rating: 150 psi
• Series: 40XL
• Temperature Rating: 210 deg F
• Type: Automatic Re-Seating
