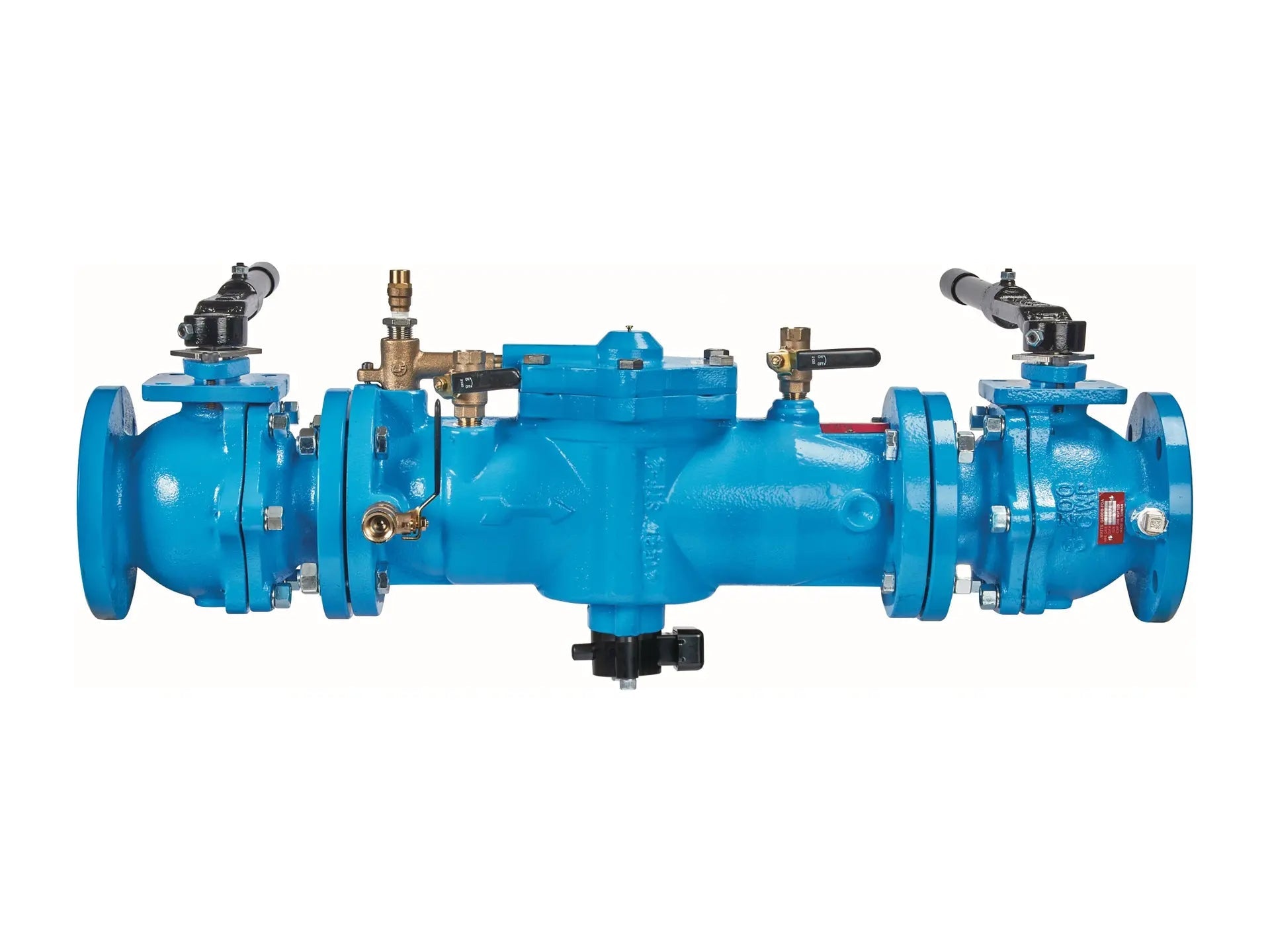

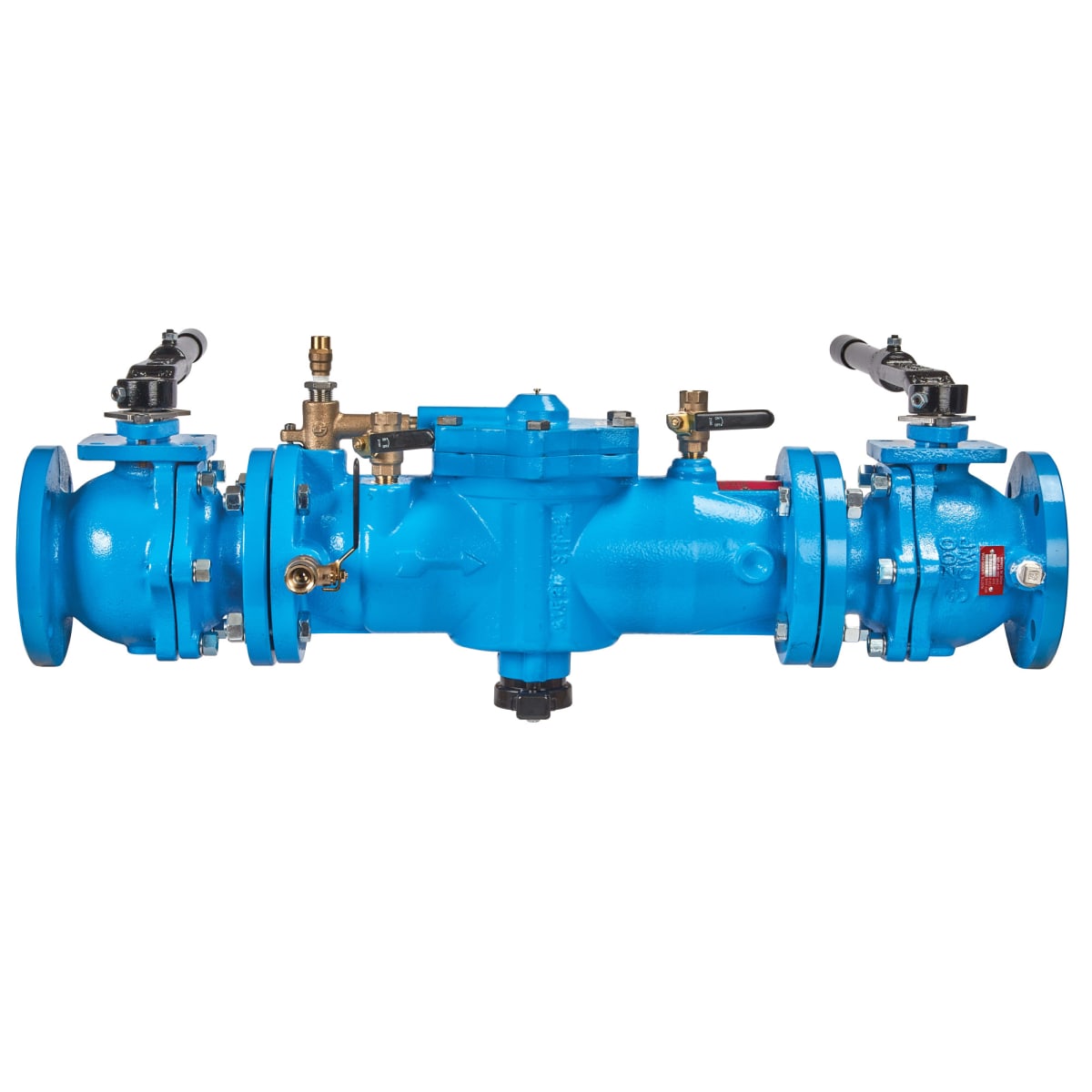

Watts F122645 2 1/2 inches Cast Iron Reduced Pressure Zone Backflow Preventer Assembly

Product Description

The Watts F122645 is a 2 1/2" lead free reduced pressure zone backflow preventer assembly designed to prevent polluted water from entering the potable water supply due to backsiphonage or backpressure. It is ideal for continuous pressure piping applications. Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges.

• Features flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Alert features available with add-on sensor connection kit
• Utilizes advanced ArmorTek coating technology to resist corrosion of internals

Product Highlights

This backflow preventer assembly consists of a cast iron body, NPT end connections, and FDA epoxy coated quarter turn ball valve shutoffs. It utilizes ArmorTek coating technology to resist corrosion.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: F122645
• Country of Origin: Domestic

Technical Specifications

• Type: Reduced Pressure Zone Assembly
• Bypass: No
• Material: Cast Iron
• Test_Status: Testable
• Connection_Size: 2 1/2"
• Connection_Type: Flanged Joint
• ArmorTek Technology: Yes
• Body Finish: Epoxy Coated Using ArmorTek Technology
• Body Material: Cast Iron
• Body Pattern: Inline
• Brand: Watts
• Bypass Size: Does Not Apply To Product
• Cap And Tether: No
• Disc Material: Rubber
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 2 1/2 IN
• Inlet Connection Size-Metric: 65 MM
• Inlet Connection Type: Flanged Joint
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: Does Not Apply To Product
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 12.10
• Maximum Working Pressure-PSI: 175
• Meter Type: No Meter
• Minimum Temperature - Celsius: 0.55
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 2 1/2 IN
• Outlet Connection Type: Flanged Joint
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: Does Not Apply To Product
• Part Number: F122645
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Seat Material: Stainless Steel
• Series: LF009
• Strainer: No
• Technologies: Flood Detection
• Nominal Size: 2-1/2 in
• Pressure Rating: 175 psi
• Temperature Rating: 33 to 140 deg F
• Manufacturer: Watts
