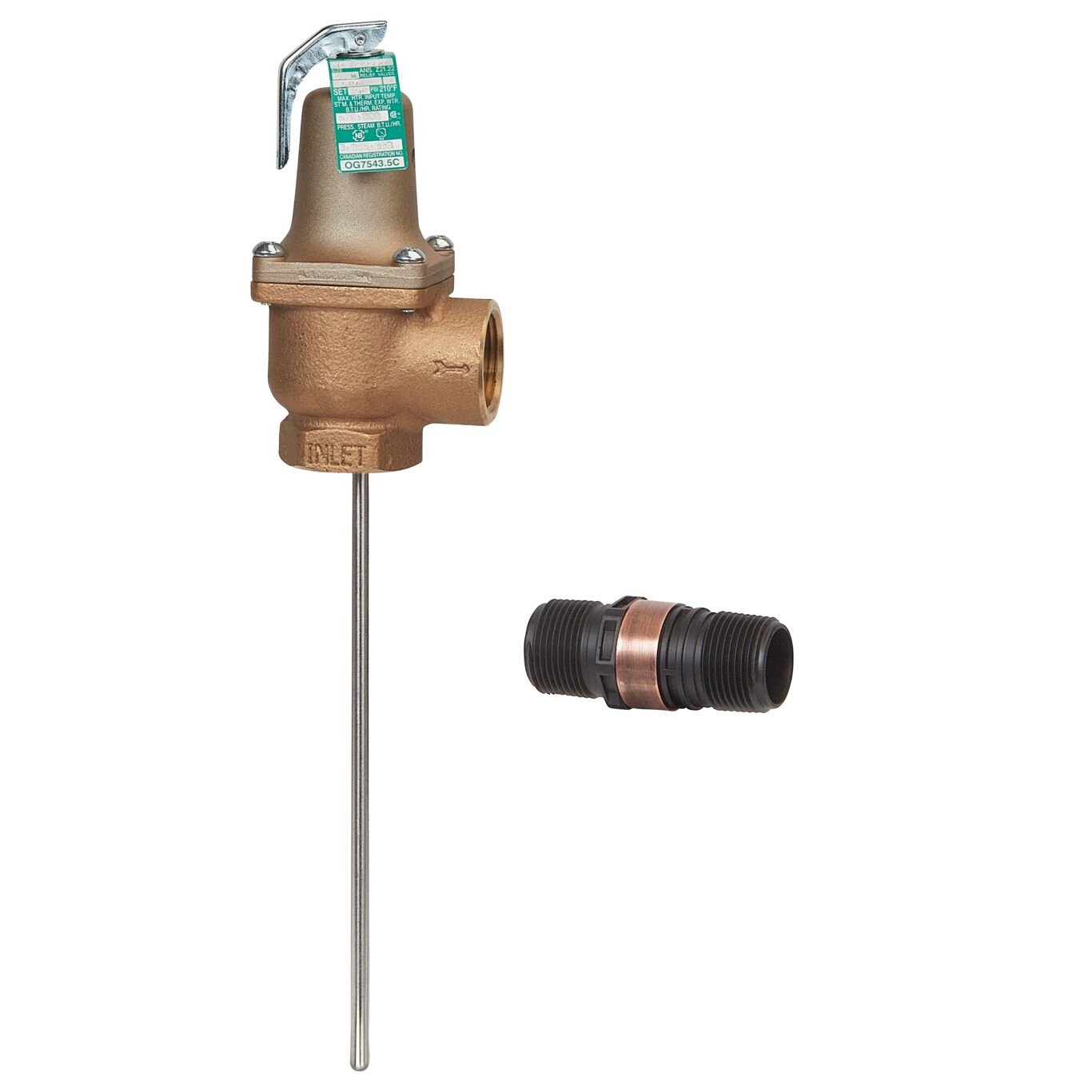

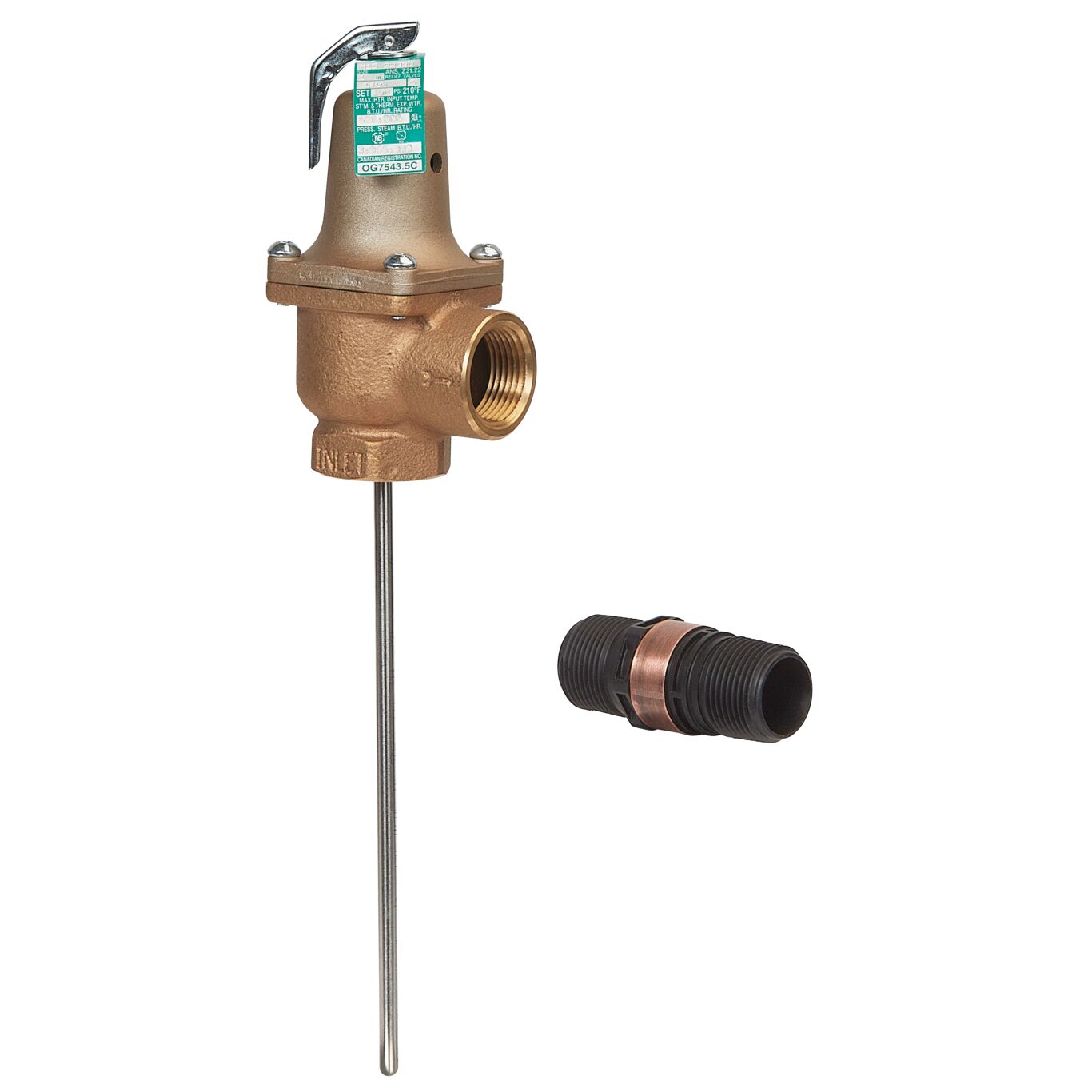

WATTS F121456 Lead Free Automatic Reseating Temperature and Pressure Relief Valve

Product Description

The WATTS F121456 is a lead free automatic reseating temperature and pressure relief valve designed for safety in hot water systems. This valve features a one inch NPTF female inlet and outlet, along with a six inch coated extension thermostat. It maintains a pressure relief setpoint of 125 psi and a temperature relief setpoint of 210 degrees F. Ideal for commercial applications, it protects hot water supply tanks and heaters.

• Includes flood sensor with SentryPlus Alert technology for water discharge detection.
• Activation kit needed for sensor operation.
• Made from lead free copper silicon alloy.

Product Highlights

This valve is essential for preventing excessive pressure and temperature in hot water systems, ensuring both performance and safety.

Product Information

Standard Information

• Brand: Watts
• Part Number: F121456

Technical Specifications

• Body Material: Lead Free Copper Silicon Alloy
• Inlet Connection Size: 1 IN
• Inlet Connection Type: Female Threaded
• Lead Free: Yes
• Maximum Temperature: 210 degrees F
• Outlet Connection Size: 1 IN
• Pressure Relief Setting: 125 PSI
• Thermostat Material: Stainless Steel
• Probe Length: 6 IN
• Dimensions: 5-3/4 in H x 3 in W
• Media: Water
• Type: Automatic Reseating
