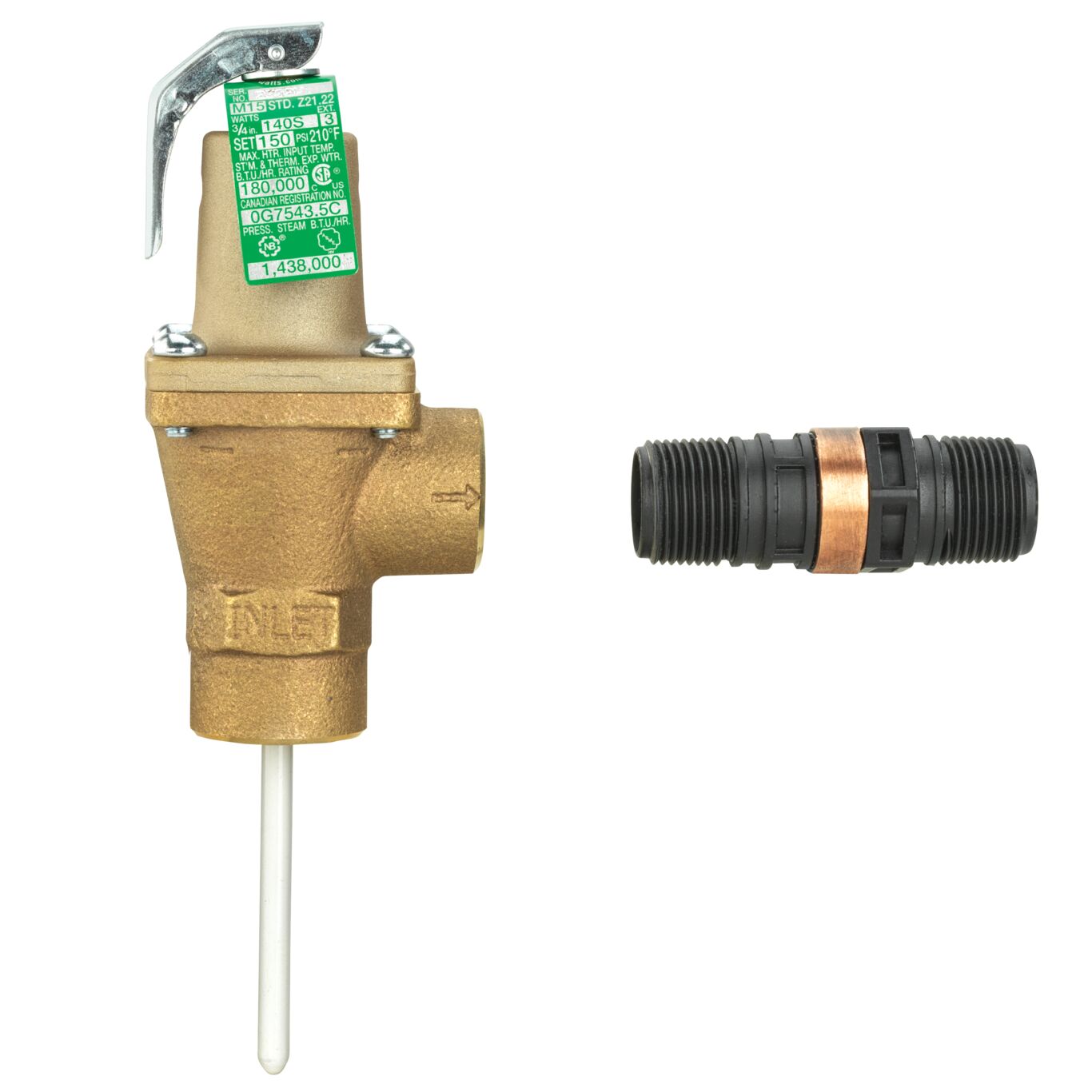

Watts F121448 3/4 IN LF140S-3 Lead Free Automatic Reseating Temperature and Pressure Relief Valve, 125 psi, 210 F, 3 IN Coated Thermostat

Product Description

The WATTS F121448 lead free automatically reseating temperature and pressure relief valve features a 3/4 inch NPTF female inlet and outlet, and a 3 inch coated thermostat. With a pressure relief setpoint of 125 psi and a temperature relief setpoint of 210 degrees F, it provides protection for hot water supply tanks and heaters in commercial applications.

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Lead free copper silicon alloy body with tamper resistant bonnet screws
• Includes a 3 inch coated thermostat

Product Highlights

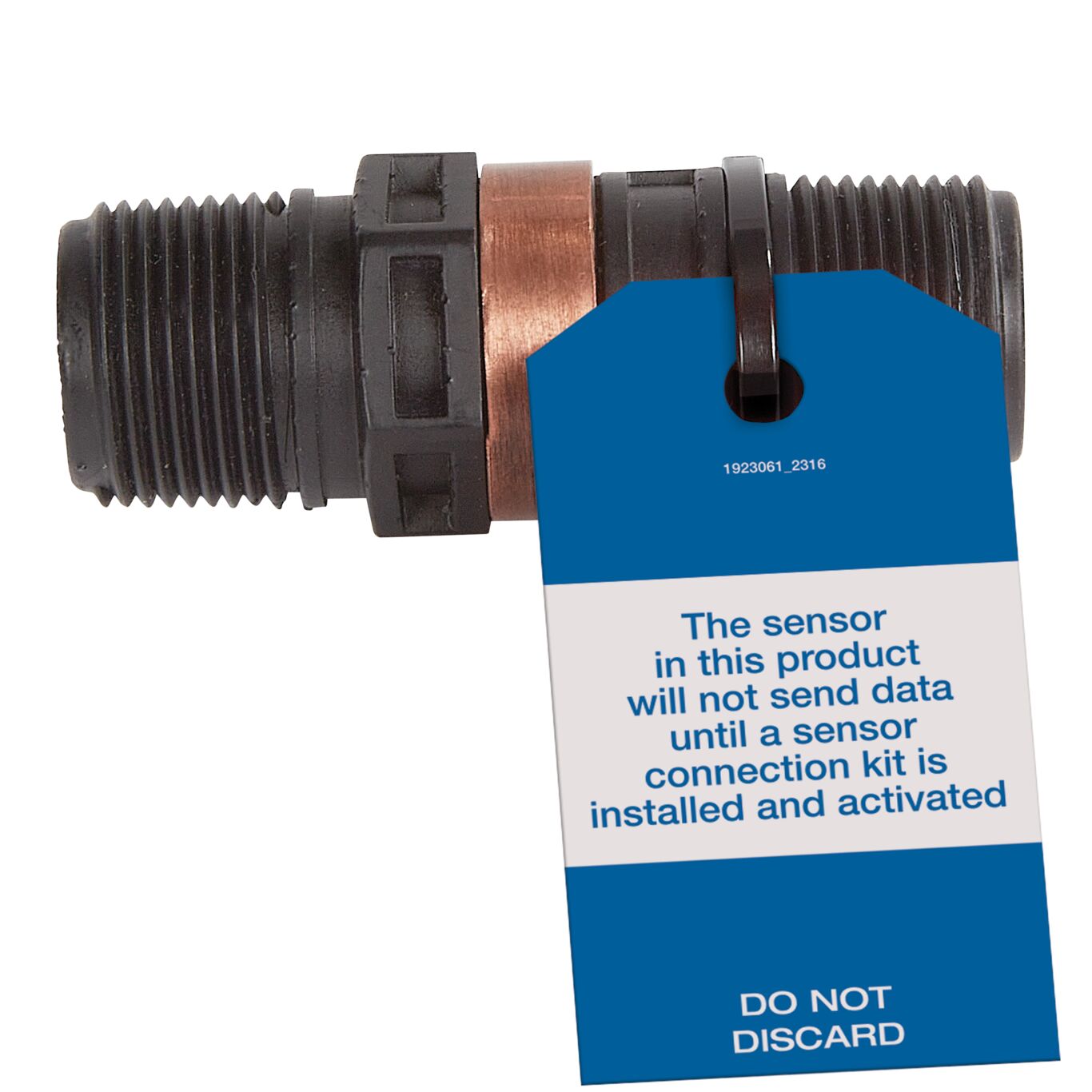

This valve includes a nonrestrictive discharge drain line flood sensor and requires the purchase of an activation kit to activate the sensor.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: F121448
• Country of Origin: USA

Technical Specifications

• Body Material: Lead Free Copper Silicon Alloy
• Brand: Watts
• Inlet Connection Size: 3/4 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPTF
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPTF
• Part Number: F121448
• Pressure Relief Setting-PSI: 125
• Protection Type: Temperature And Pressure
• Series: LF140
• Temperature Relief-Fahrenheit: 210
• Thermostat Material: Nylon Coated Copper
• Thermostat Probe Length: 3 IN
• Product Type: Relief Valve
• Maximum Temperature: 210
• Pressure - Maximum: 125 psi
• Valve Size: 3/4 in.
• Valve Body Material: Lead Free Copper Silicon Alloy
• Application: Water Heater
