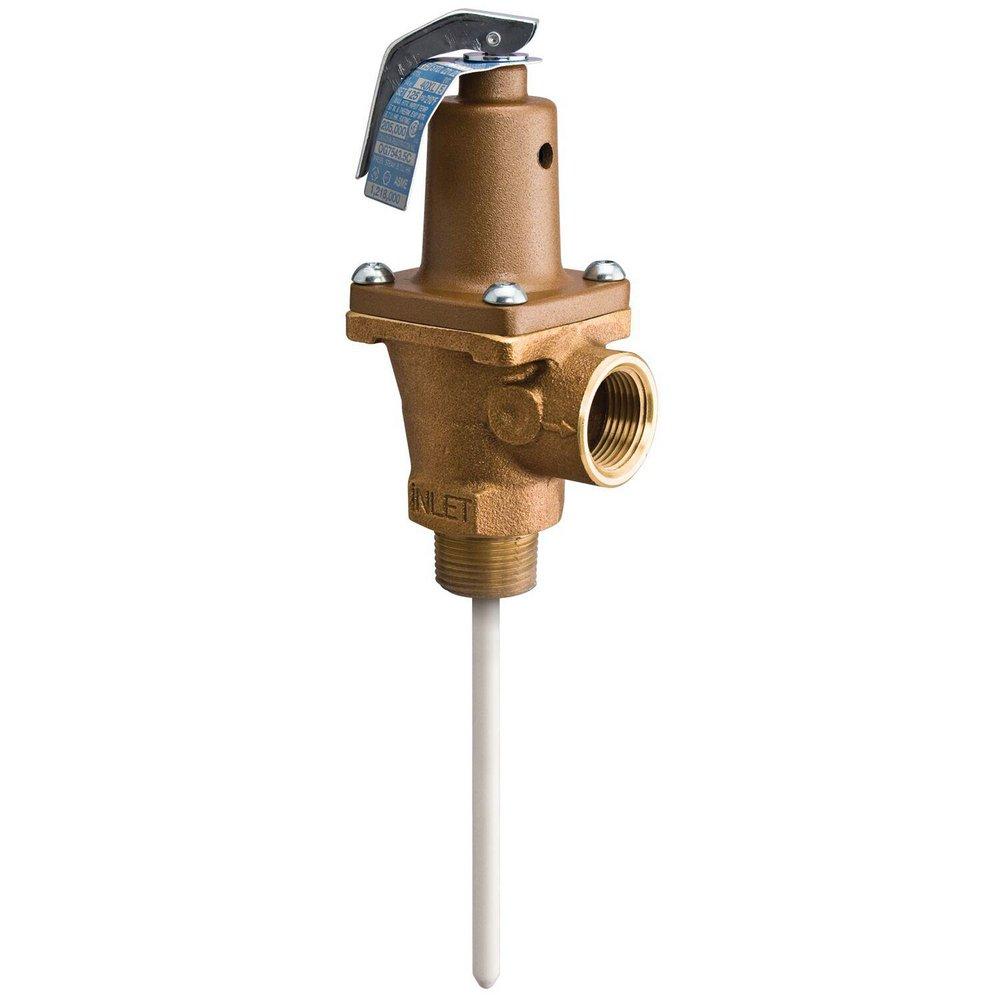

Watts F121427 1 in lf40xl-7 lead free automatic reseating temperature and pressure relief valve, 125 psi, 210 f, 7 in

Product Description

The WATTS F121427 lead free automatic reseating temperature and pressure relief valve features a 1 inch NPTF male inlet, 1 inch NPTF female outlet, and a 7 inch coated extension thermostat. The pressure relief setpoint is 125 psi and the temperature relief setpoint is 210 degrees F. It can be installed in hot water outlets for commercial applications to protect hot water supply tanks and heaters.

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Requires purchase of activation kit to activate sensor
• Lead free copper silicon alloy body

Product Highlights

Lead free valve with tamper resistant bonnet screws and a 7 inch coated thermostat. Includes flood sensor and requires activation kit.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: F121427

Technical Specifications

• Body Material: Lead Free Copper Silicon Alloy
• Brand: Watts
• Inlet Connection Size: 1 IN
• Inlet Connection Type: Male Threaded
• Inlet Thread Type: NPTF
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 210
• Outlet Connection Size: 1 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPTF
• Part Number: F121427
• Pressure Relief Setting-PSI: 125
• Protection Type: Temperature And Pressure
• Series: LF40L
• Temperature Relief-Fahrenheit: 210
• Thermostat Material: Nylon Coated Copper
• Thermostat Probe Length: 7 IN
• ANSI: ANSI Z21.22
• Application: Commercial, Water Heaters
• End Connection 1: MNPT
• End Connection 2: FNPT
• End Connections: MNPT x FNPT
• Material: Brass
• Maximum Temperature: 210
• Pressure Class: 125#
• Recommended Valve Application: Water
• Valve Body Material: Brass
• Valve Operator: Lever Handle
• Valve Size: 1 in
• Valve Type: Pressure Relief Valve
• MPN: F121427
• Actuator Type: Test Lever
• End Style: Male NPTF x Female NPTF
• Media: Water
• Nominal Size: 1 in
• Pressure Rating: 93 psi
• Probe Length: 7 in
• Temperature Rating: 210 deg F
• Trim Material: Nylon Coated Copper
• Type: Automatic Reseating
• Inlet Size: 1 inch NPTF male
• Outlet Size: 1 inch NPTF female
• Thermostat Length: 7 inch coated extension
• Pressure Relief Setpoint: 125 psi
• Temperature Relief Setpoint: 210 degrees F
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Domestic/Import: Domestic
