Watts F111589 10 SS Reduced Pressure Zone Assembly Backflow Preventer, OSY Shutoff Valves, Backflow Flood Sensor

Product Description

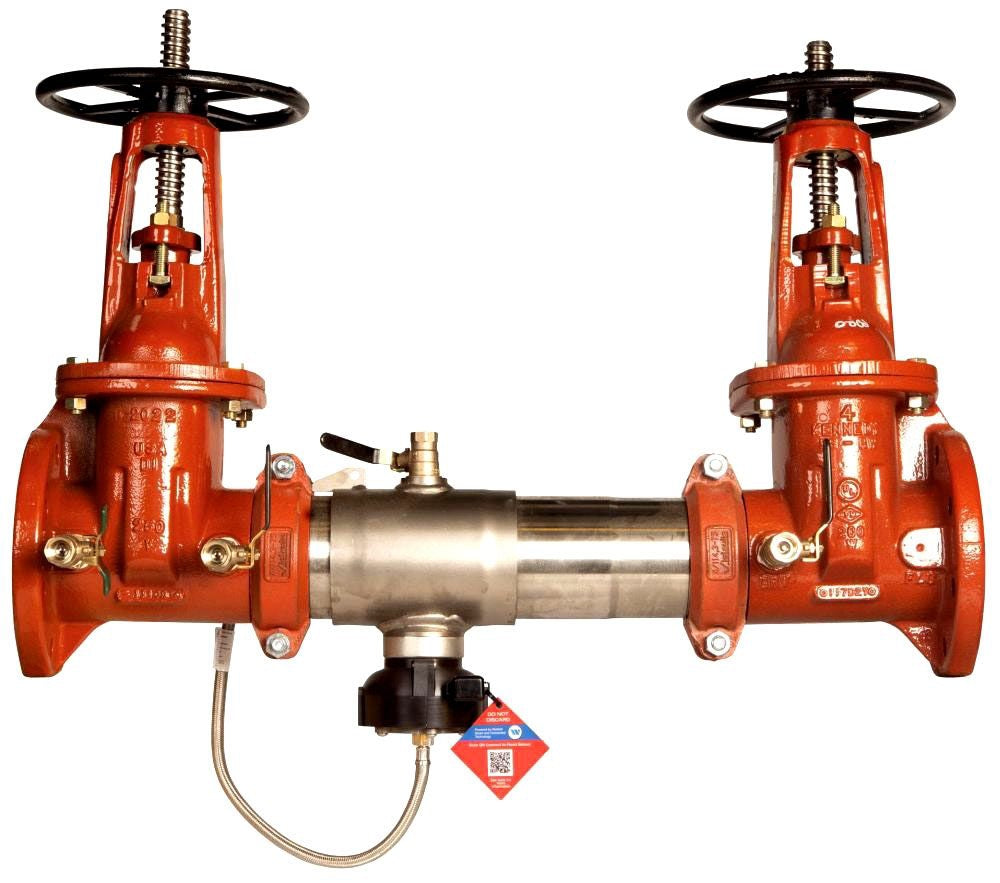

Watts F111589, an inline backflow preventer, is designed to stop the reverse flow of water due to backpressure or backsiphonage. This assembly consists of a robust stainless steel body with an integrated flood sensor, ideal for applications where a potential health hazard exists due to backflow. It can be installed horizontally and is built for easy maintenance.

• Compact design allows for installation in tight spaces.
• Maximum working pressure of one hundred seventy-five psi.
• Equipped with torsion spring check valves and resilient seated gate valves.

Product Highlights

This backflow preventer ensures water safety with its built-in flood detection system and durable materials.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Body Material: Stainless Steel

Technical Specifications

• Type: Inline
• Media: Water
• Nominal Size: 10 inches
• Pressure Rating: 175 psi
• Flow Rate: 7.5 fps
• Temperature Rating: 33 to 140 degrees Fahrenheit
• Backflow Type: Reduced Pressure Zone
• Dimensions: 57-3/4 inches wide x 20 inches deep
