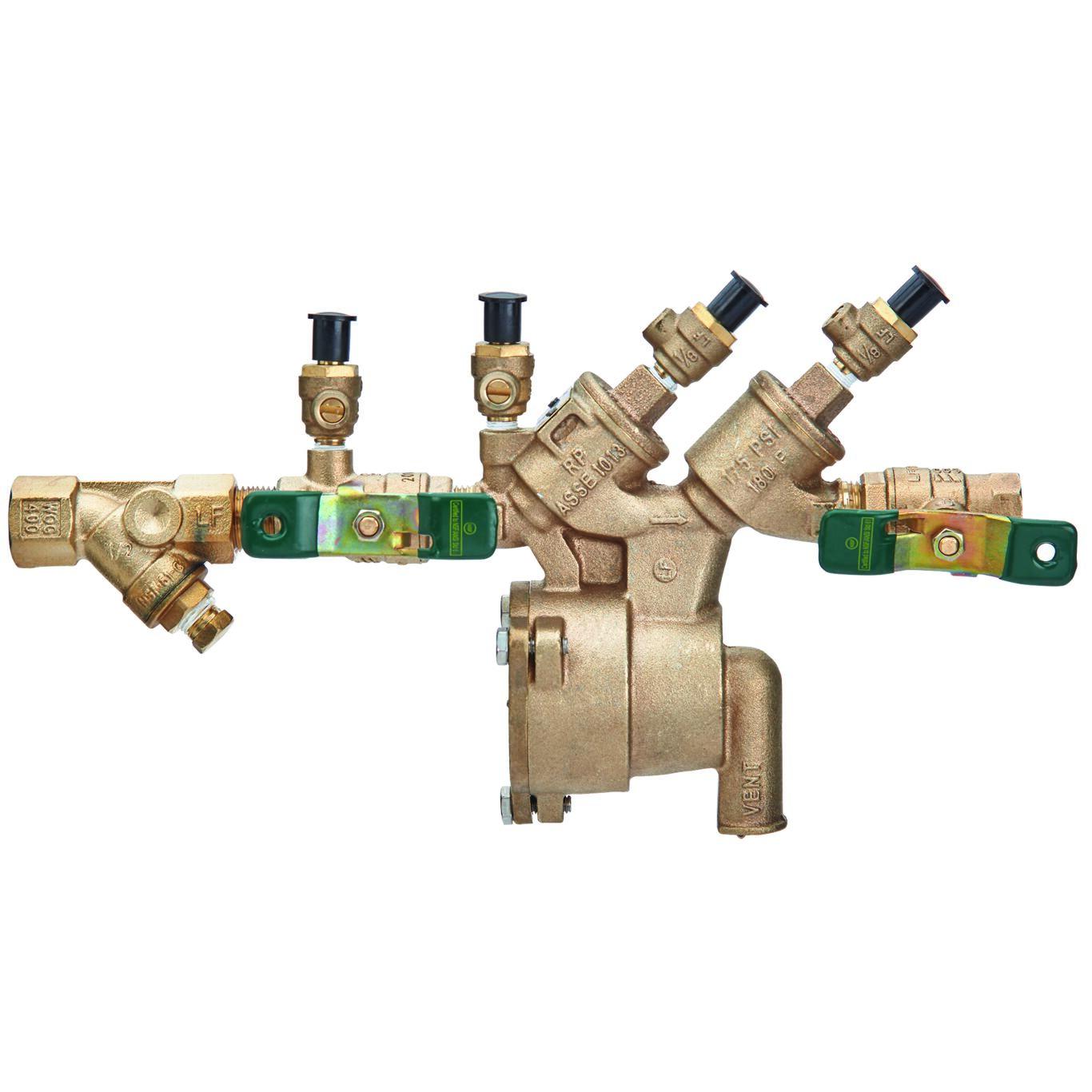

Watts F065377 1/2 In Lead Free Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Ball Valves, Bronze Strainer, Backflow Flood Sensor

Product Description

WATTS F065377 is a 1/2 inch lead free reduced pressure zone backflow preventer assembly. It features quarter turn ball valves, a bronze strainer, and a backflow flood sensor. This assembly is designed to prevent polluted water from entering the potable supply due to backsiphonage or backpressure, making it suitable for continuous pressure piping applications and health hazard cross-connections.

• Lead Free Reduced Pressure Zone Backflow Preventer Assembly
• Quarter Turn Ball Valves
• Bronze Strainer

Product Highlights

Equipped with a backflow flood sensor for discharge detection, ensuring protection against backsiphonage and backpressure.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: F065377

Technical Specifications

• Pittman Number: 224875
• ArmorTek Technology: No
• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Body Finish: Cast Bronze
• Body Material: Lead Free Copper Silicon Alloy
• Body Pattern: Inline
• Buy American Act Compliant: YES
• Bypass: No
• Cap And Tether: No
• Disc Material: Silicone
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 1/2 IN
• Inlet Connection Size Metric: 15 MM
• Inlet Connection Type: Female Threaded
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Lead Free: YES
• Maximum Temperature Fahrenheit: 180
• Maximum Working Pressure Bar: 12.10
• Maximum Working Pressure PSI: 175
• Meter Type: No Meter
• Minimum Temperature Celsius: 0.50
• Minimum Temperature Fahrenheit: 33
• Outlet Connection Size: 1/2 IN
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Seat Material: Polymer
• Series: LF919
• Strainer: Bronze
• Technologies: Flood Detection
• Check Valves: Two poppet-style
• Check Seats: Replaceable
• Relief Valve: Intermediate
• UPC: 098268541793
