Watts F065374 Watts F065374 1 1/4 In

Product Description

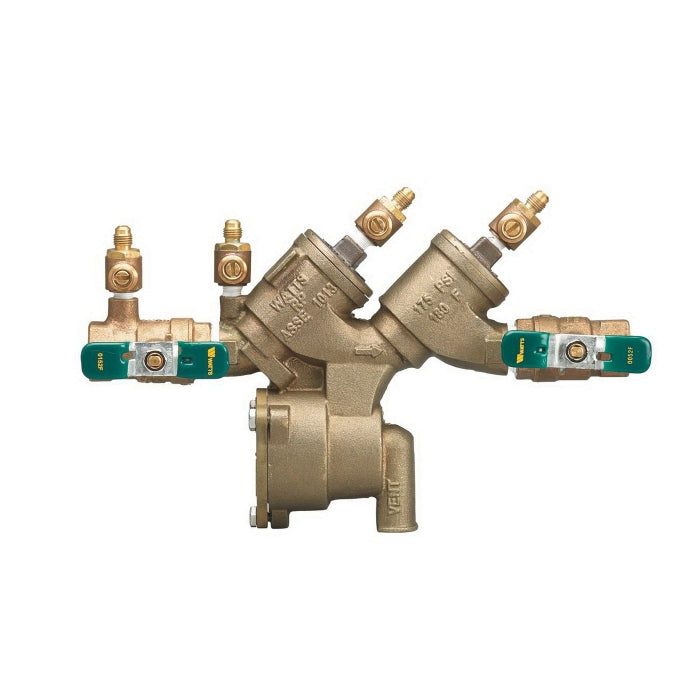

The Watts F065374 is a 1 1/4 In Lead Free Reduced Pressure Zone Backflow Preventer Assembly with Quarter Turn Ball Valves, Lever Handle, and Backflow Flood Sensor. Designed to prevent polluted water from entering the potable water supply due to backsiphonage or backpressure. Features a compact modular design for easy maintenance and in-line repairs. Ideal for continuous pressure piping applications and cross-connections identified as health hazards.

• Lead-free bronze body with NPT end connections
• Separate access covers for the check valves and relief valve for ease of maintenance
• Top entry all check internals easily accessible

Product Highlights

This assembly consists of a bronze body construction, NPT end connections, quarter turn ball valve shut-offs with lever handles, two poppet style check valves and replaceable check seats.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: F065374

Technical Specifications

• Description: 1 1/4 In Lead Free Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Ball Valves, Lever Handle, Backflow Flood Sensor
• Manufacturer: Watts
• PDW MFR CAT: F065374
• Pittman #: 231467
• Connection Size: 1-1/4 in
• Connection Type: FNPT
• Dimension: 18-1/8 in L x 11-7/16 in H
• Disc Material: Silicone
• Item Name: Reduced Pressure Zone Assembly with 1/4-Turn Ball Valve
• Material: Bronze
• Model: LF919-QT
• Pressure Rating: 175 psi
• Seat Material: Engineered Plastic
• Series: LF919
• Temperature Rating: 33 - 180 deg F
• Body Finish: Cast Bronze
• Body Material: Lead Free Copper Silicon Alloy
• Body Pattern: Inline
• Buy American Act Compliant: YES
• Bypass: No
• Cap And Tether: No
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 1 1/4 IN
• Inlet Connection Type: Female Threaded
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 180
• Maximum Working Pressure-PSI: 175
• Meter Type: No Meter
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 1 1/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Part Number: F065374
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Technologies: Flood Detection
• Tradename: None
• Maximum Working Pressure-BAR: 12.10
• Minimum Temperature - Celsius: 0.50
• Inlet Connection Size-Metric: 32 MM
