WATTS DUOVENT High Capacity Air Vents 1/8 inch

Product Description

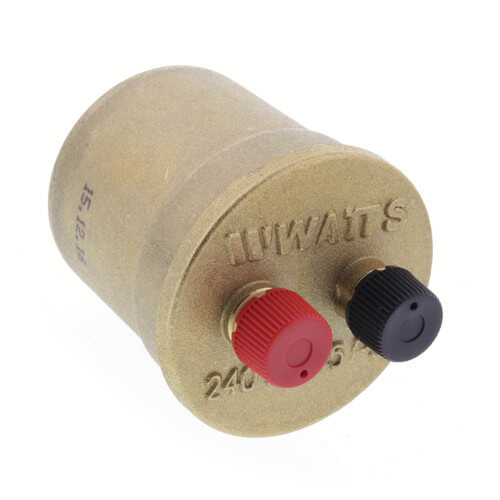

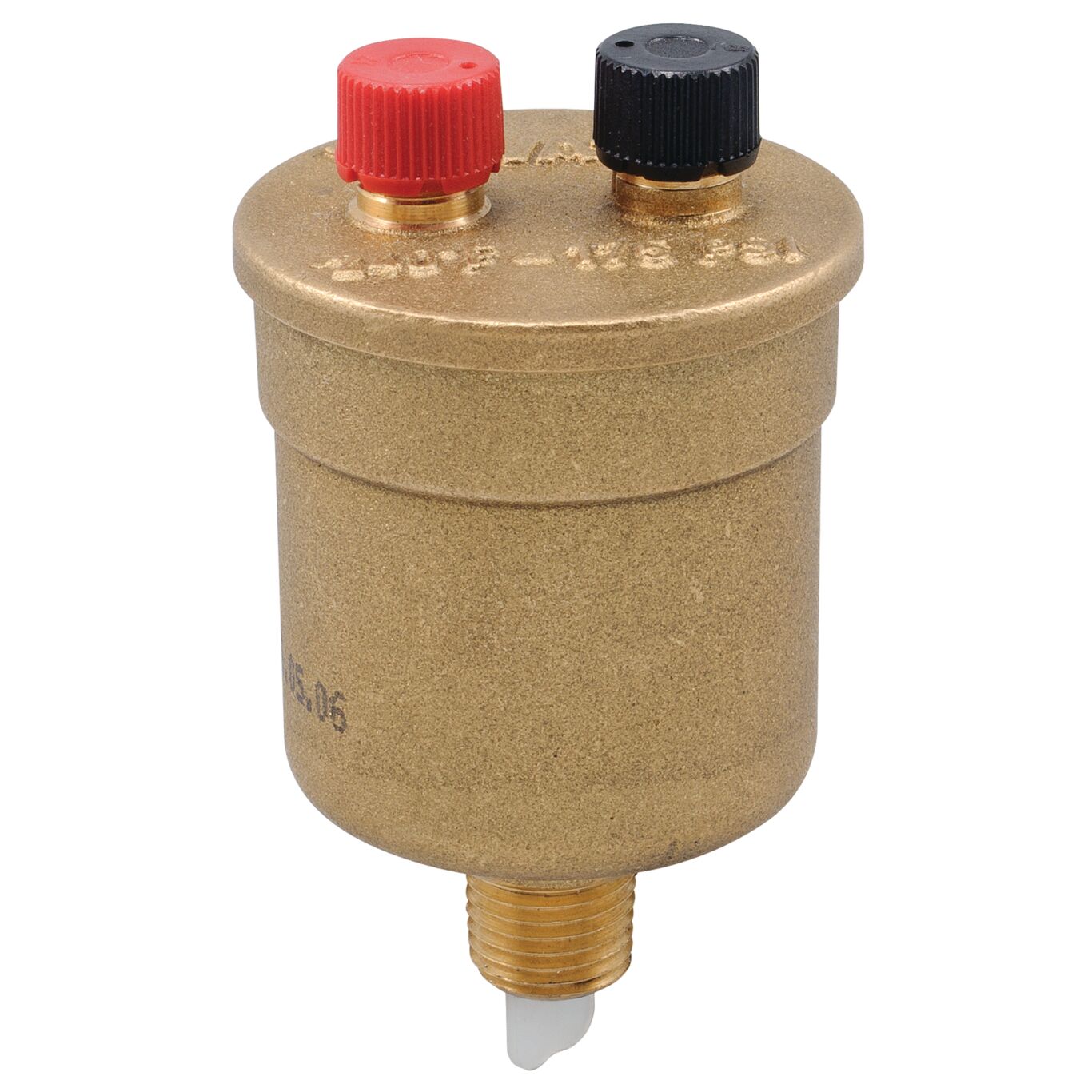

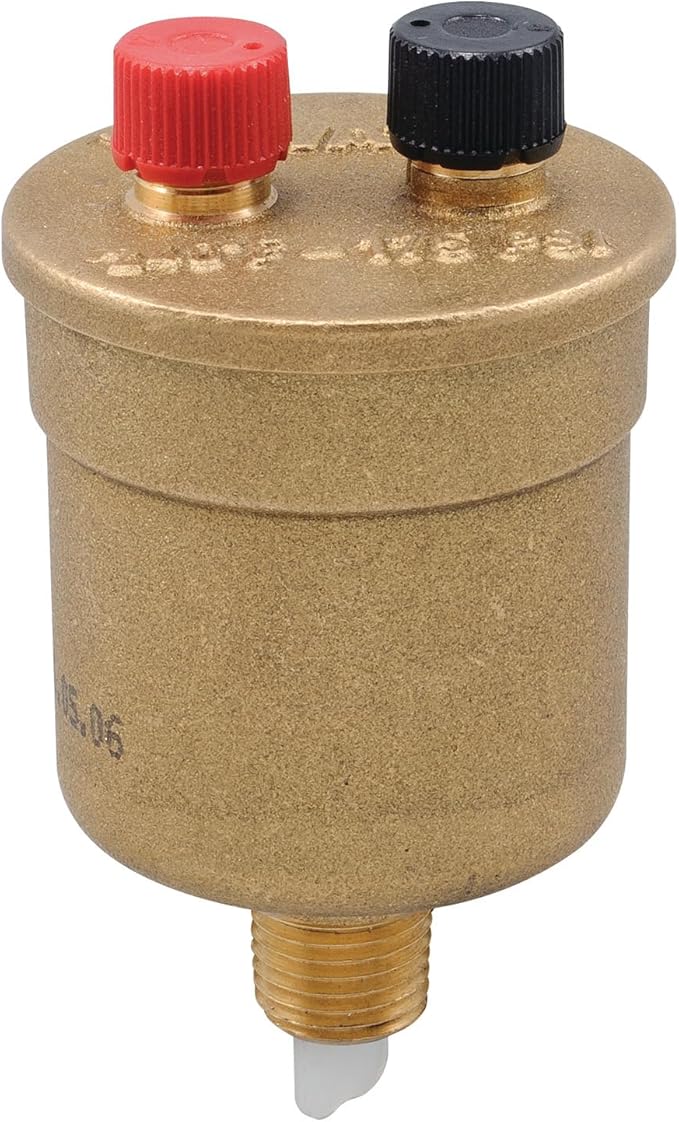

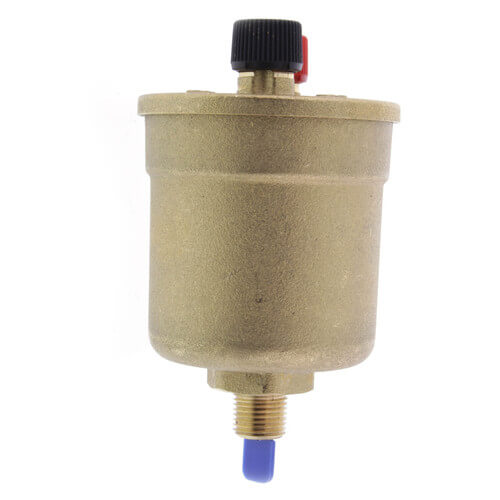

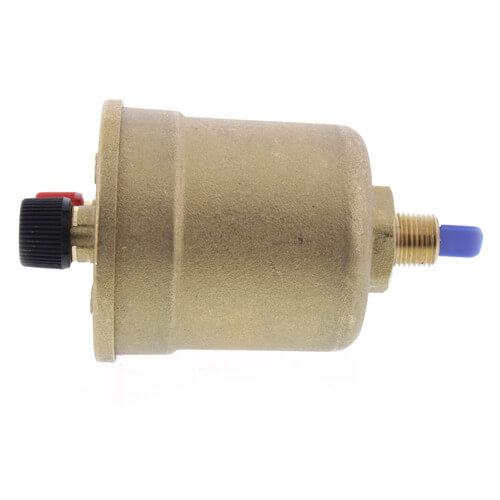

The WATTS DUOVENT Model DUOVENT is a 1/8 inch high-capacity air vent. It serves in both commercial and residential hydronic heating systems, allowing for effective air venting in hot or cold water distribution setups. The vent is crafted from brass and features a manual venting option. It includes a silicone rubber seal, ensuring a tight fit. The product can be disassembled for easy cleaning and maintenance, facilitating ongoing operation.

• Constructed with a brass body and cover
• Automatic and manual air venting capability
• Maximum pressure tolerance of 150 psi

Product Highlights

This air vent is suitable for use in glycol systems and is designed to handle varying temperatures.

Product Information

Standard Information

• Brand: WATTS
• MPN: DUOVENT

Technical Specifications

• System Type: Hydronic (Water)
• Material: Brass
• Size: 1/8 inch
• Max Pressure (PSI): 150
• Min Temp (F): 33°F
• Max Temp (F): 240°F
• Thread Type: Male
• Body Pattern: Straight
• Air Venting: Automatic and Manual
• Maximum Operating Temperature: 240°F
• Inlet Connection Size: 0.13 inches
• Outlet Connection Size: 0.13 inches
• Item Dimensions: 3 x 3 x 2 inches
• Country/Region of Manufacture: Italy
