WATTS C-FBV-1 3/8 Valve

Product Description

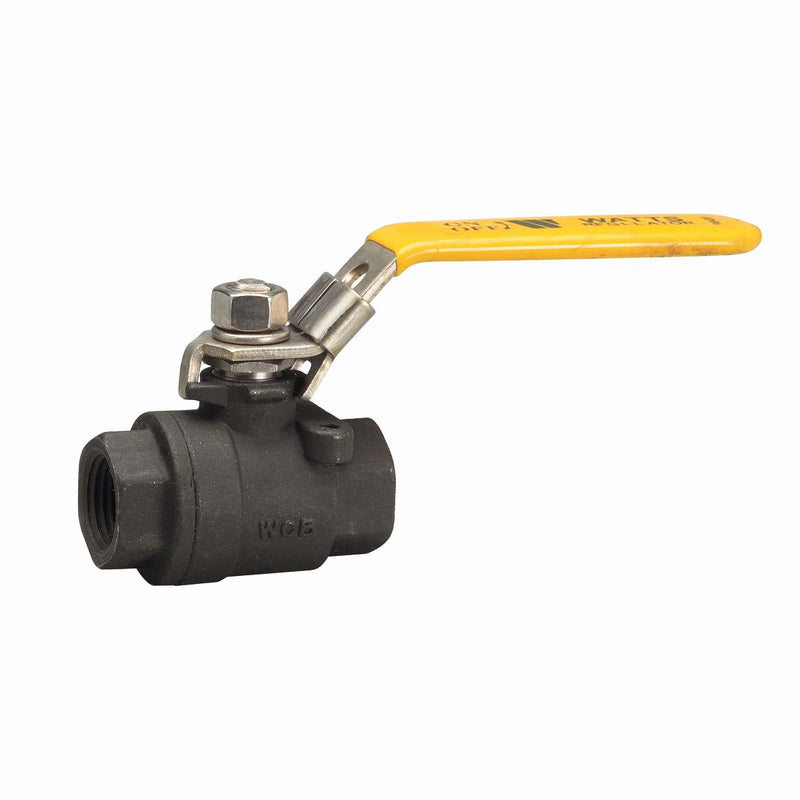

The WATTS C-FBV-1 3/8 valve is a two-piece full port ball valve with female threaded end connections suitable for commercial and industrial applications. It is designed to handle high operating temperature and pressure limits. The valve features a robust carbon steel body and a bottom-loaded blowout-proof stem. It also includes adjustable packing gland and reinforced PTFE seats.

• Two-piece carbon steel body construction
• Full port design reduces pressure drop
• Drilled and tapped mounting pads for easy installation

Product Highlights

This valve is ideal for applications requiring reliable flow control under demanding conditions.

Product Information

Standard Information

• Brand: Watts
• Part Number: 0548001

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Carbon Steel
• Control Type: Lever Handle
• CV Rating: 12
• Inlet Connection Size: 3/8 IN (10 MM)
• Inlet Connection Type: Female Threaded (NPT)
• Maximum Temperature: 400°F
• WOG Rating: 1000 PSI
