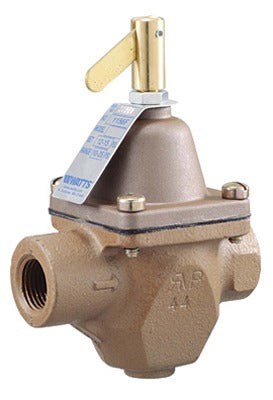

Watts Brass Tubular 1156F 1/2 Boiler Feed Regulator

Product Description

The WATTS BRASS TUBULAR 1156F 1/2 is a boiler feed water pressure regulator designed to maintain consistent water pressure in hydronic heating systems. It features 1/2 inch female pipe thread (FPT) inlet and outlet connections, plus a dedicated 1/2 inch FPT bottom connection for expansion tank installation. A built-in stainless steel strainer protects the valve disc from fouling, and a tight-seating check feature prevents backflow. Licensed plumbers and HVAC technicians install this valve during new boiler commissioning or as a replacement in residential and light commercial hot water heating systems.

This regulator is suited for residential and light commercial hydronic heating systems. It fills the boiler and system piping with supply water and maintains set operating pressure during normal system operation. The fast-fill feature accelerates initial fill and purges air from the piping, reducing commissioning time. A manual purge lever is included for field use. In the event of minor system leaks, the valve provides automatic make-up water to keep the system pressurized and operating.

Key Features

• 1/2 inch FPT inlet and outlet connections for standard pipe installation
• 1/2 inch FPT bottom connection for direct expansion tank hookup
• Fast-fill feature speeds initial system fill and air purging
• Manual purge lever included for field servicing
• Stainless steel strainer protects valve disc from debris fouling
• Tight-seating check feature prevents backflow into supply line

Compatibility

Designed as an OEM-style replacement or new-installation feed valve for residential and light commercial hydronic hot water boiler systems using 1/2 inch female pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the cold water supply and depressurize the boiler system before removing an existing regulator or installing this valve. Use thread sealant or PTFE tape on all pipe thread connections and verify there are no leaks before restoring system pressure. Do not exceed the valve rated pressure range during fast-fill or normal operation.
