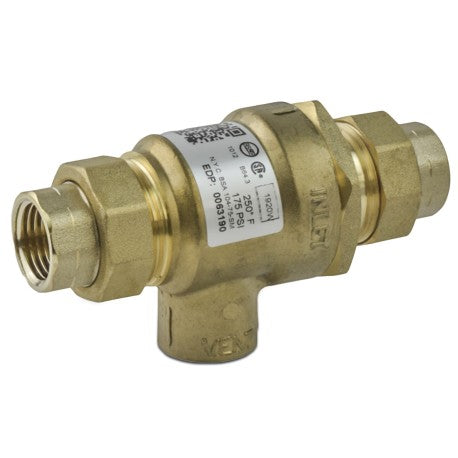

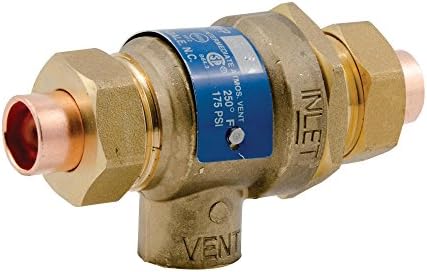

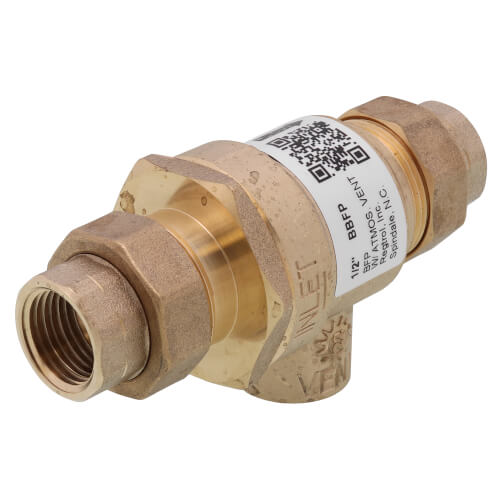

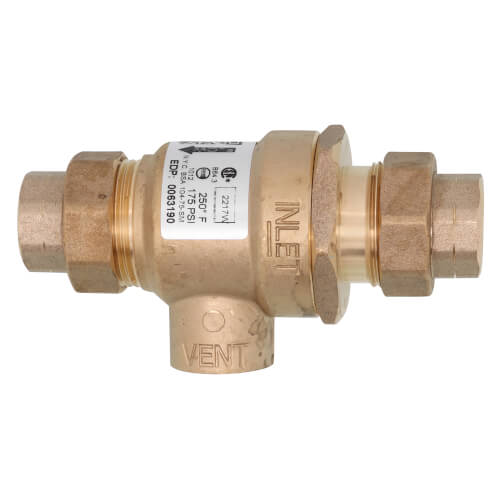

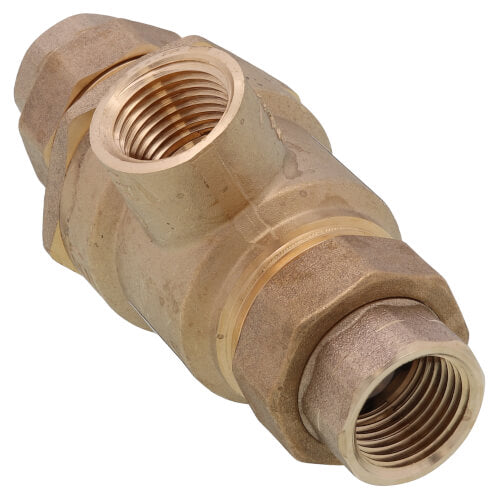

Watts BBFP 1/2 inches Ips Backflow Preventer

Product Description

The WATTS BBFP Dual Check Valves with Intermediate Atmospheric Vent prevent the reverse flow of hot or cold polluted water from entering into the potable water supply. It consists of a brass body with stainless steel internal parts, integral strainer, and two durable, tight-sealing, rubber check valves. Designed for continuous pressure, non-health hazard applications in smaller supply lines, such as laboratory equipment, processing tanks, sterilizers, dairy equipment, and specifically for boiler feed lines.

• 1/2" size
• Forged Brass material
• Maximum pressure of 175 PSI

Product Highlights

The WATTS BBFP backflow preventer is suitable for plumbing and heating applications, featuring FNPT x FNPT connections and a temperature range of 33°F to 250°F.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: BBFP

Technical Specifications

• Application: Plumbing, Heating
• Size: 1/2"
• Min Temp (F): 33°F
• Max Temp (F): 250°F
• Temperature Range (F): 33°F to 250°F
• Max Pressure (PSI): 175
• Min Pressure (PSI): 25
• Material: Forged Brass
• Height: 2-9/16"
• Width: 4-15/16"
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Operating Temperature Range: 33 - 250°F
• Max. Working Pressure: 175 psi
• Minimum Pressure: 25 psi
• Number of Ports: 2
• Outlet Connection Size: 0.5 Inches
• Specification Met: ASME B16.34
• Brand: Watts
• Manufacturer: Watts
• UPC: 098268039702
