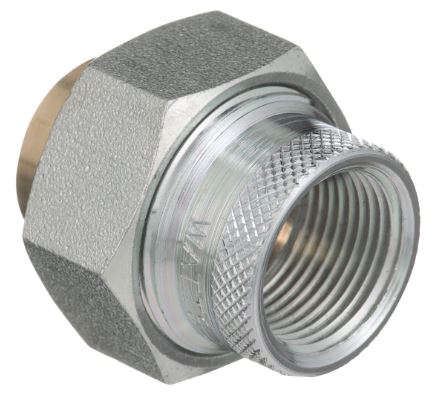

Watts 9865 3/4 In Lead Free Dielectric Union with Buna-N Gasket

Product Description

This Watts 9865 3/4 inch lead free dielectric union is designed for use in both commercial and residential plumbing applications. It prevents corrosion and deterioration in piping systems due to galvanic and stray current by separating pipes made from different metals. Commonly used in hot water tanks, air conditioners, and water piping, this product includes a female iron pipe thread to solder connection, a union nut, two tailpieces, and a Buna-N gasket, which separates the tailpieces to block electric current.

• Lead free design
• Built with 250 psi maximum pressure rating
• Suitable for temperatures up to 180 degrees F

Product Highlights

This dielectric union features a Buna-N gasket that prevents electric current, making it a necessary component for systems using dissimilar metals.

Product Information

Standard Information

• Brand: Watts
• Part Number: 9865

Technical Specifications

• Category: Dielectric Union
• Size: 3/4 In
• Material: Brass
• End Style: FNPT x Solder
• Maximum Pressure: 250 psi (17.2 bar)
• Maximum Temperature: 180 degrees F (82 degrees C)
• Item Weight: 0.42 lbs
