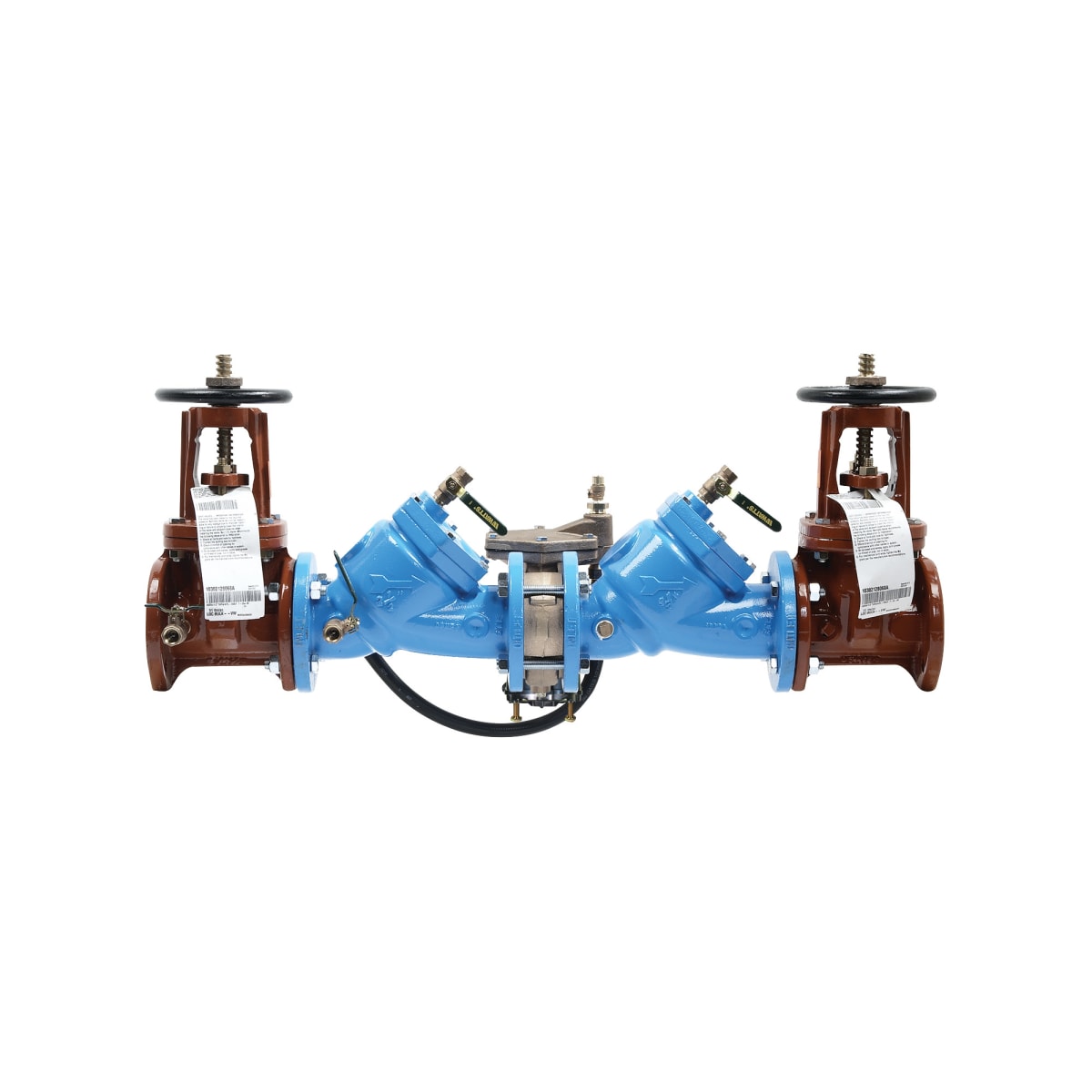

Watts 88009304 Series LF909-FS 3 in Cast Iron Flanged 175 psi Backflow Preventer

Product Description

The Watts 88009304 Series LF909-FS is a three-inch cast iron flanged backflow preventer designed for applications requiring a reduced pressure zone. This valve protects potable water from contamination by preventing the reverse flow of polluted water. Its cast iron body is epoxy coated, ensuring durability and resistance to corrosion.

• Features an integrated flood sensor for detecting excessive water discharges.
• Utilizes ArmorTek coating technology for enhanced corrosion resistance.
• Designed for industrial applications with a pressure rating of 175 PSI.

Product Highlights

This backflow preventer is suitable for continuous pressure piping applications and critical cross-connections.

Product Information

Standard Information

• Brand: Watts Regulator Company
• MPN: 88009304

Technical Specifications

• Backflow Type: Reduced Pressure Zone
• Ball Valve/Gate Valve Type: Outside Stem and Yoke Resilient Seated Gate Valve
• Body Material: Cast Iron
• Dimensions: 42.5 inches
• End Style: Flanged
• Finish: Epoxy Coated
• Media: Potable Water
• Nominal Size: 3 inches
• Pressure Rating: 175 PSI
• Series: LF909-FS Large
• Temperature Rating: 33 to 110 degrees F
• Type: Inline Pattern
