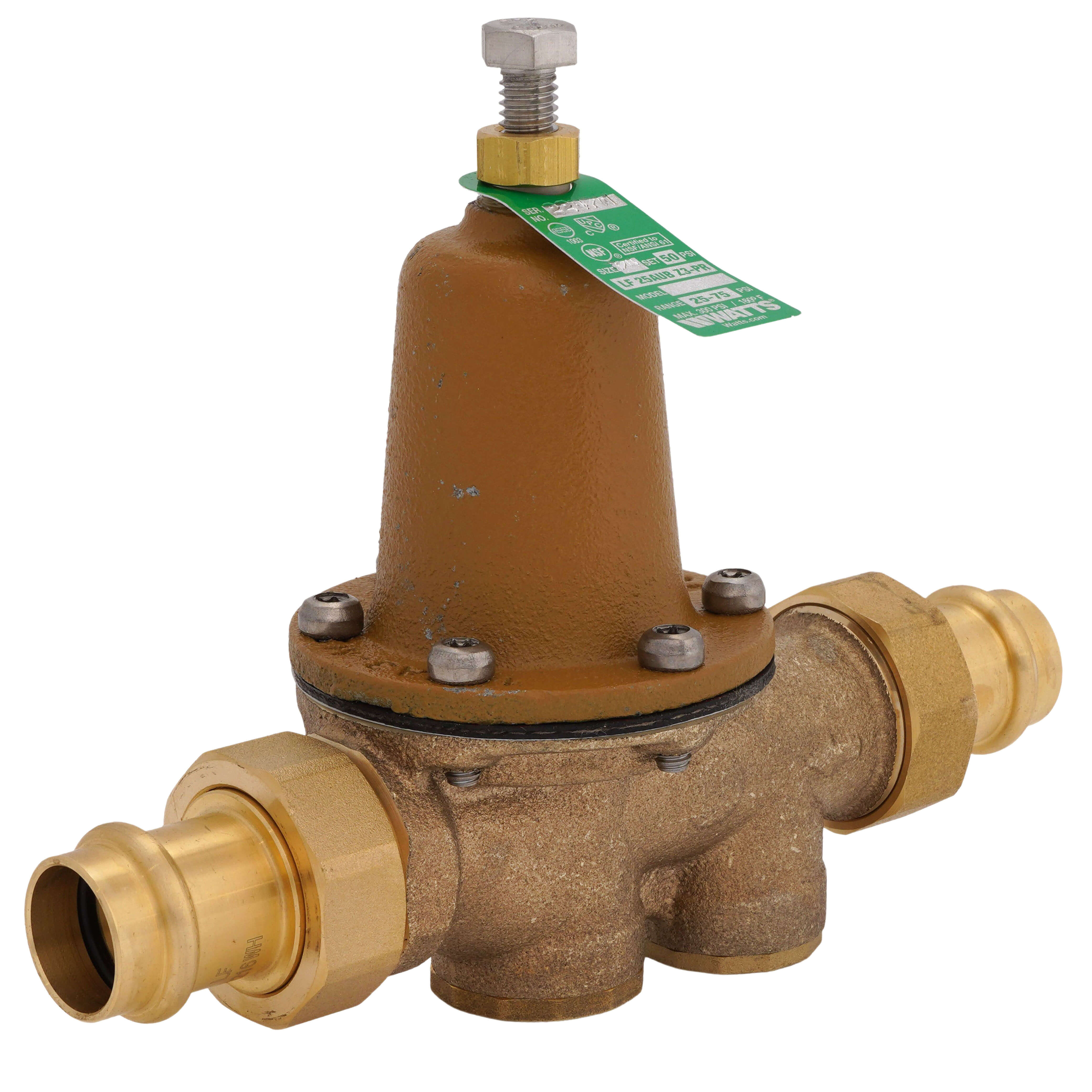

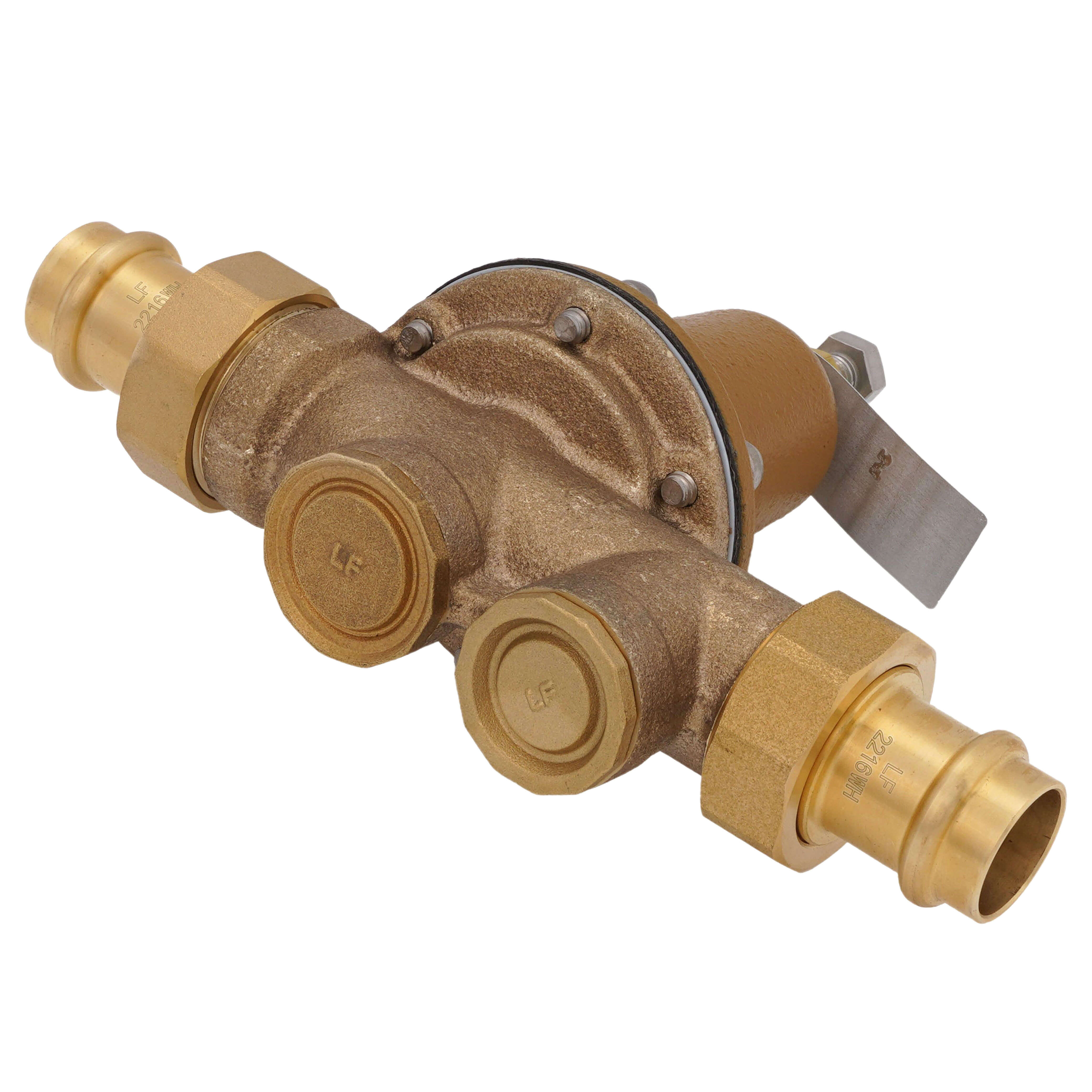

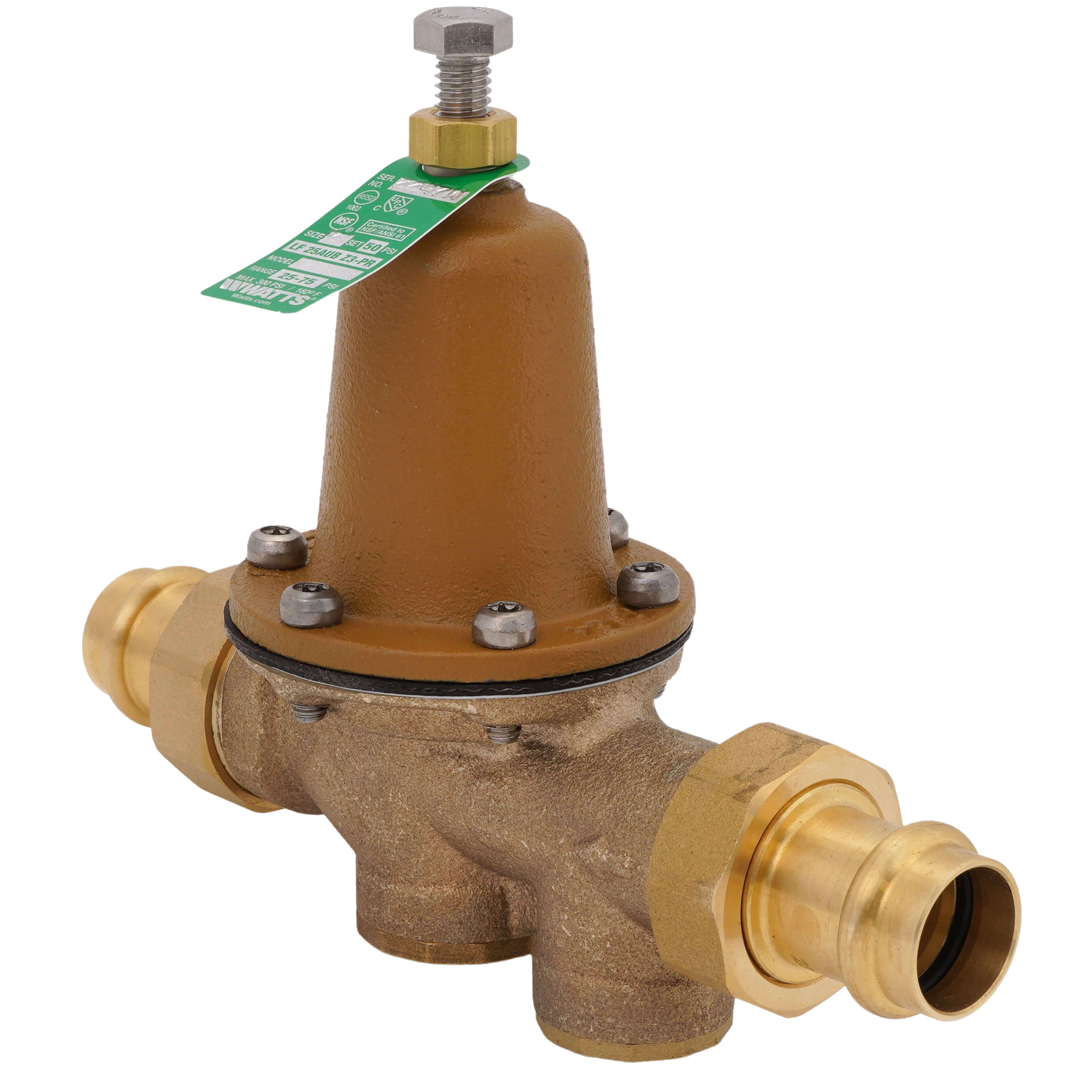

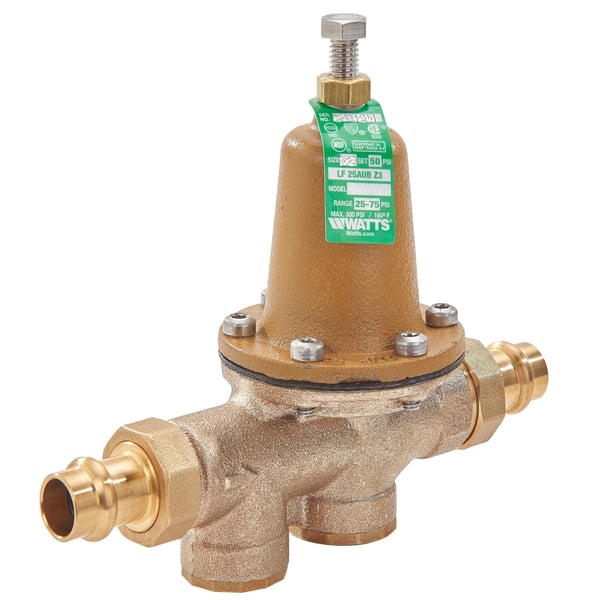

Watts 88006877 3/4 LF25AUB-DU-PR-Z3 IN Lead Free Water Pressure Reducing Valve Double Union Press Polymer Seat Adjustable 25-75 PSI

Product Description

The WATTS 88006877 3/4 LF25AUB-DU-PR-Z3 IN is a lead-free water pressure reducing valve with a double union press polymer seat, adjustable from 25-75 PSI. Designed to reduce incoming water pressure, it protects plumbing systems and reduces water consumption in commercial, industrial, and residential applications.

• Lead Free
• Integral stainless steel strainer removable for cleaning
• Sealed spring cage with stainless steel cage screws

Product Highlights

This valve features double union press connections, a replaceable seat module, and a bypass to control thermal expansion pressure.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 88006877

Technical Specifications

• Size: 3/4"
• Material: Copper
• Lead Free: Yes
• Pressure Range: 25 to 75 psi
• Max Inlet Pressure: 300 PSI
• Temperature Range (F): 33 to 160 deg F
• Adjustable Reduced Pressure Range: 25 to 75
• Body Material: Lead Free Copper Silicon Alloy
• Brand: Watts
• Disc Material: EPDM
• Inlet Connection Size: 3/4 IN
• Inlet Connection Type: Union Press
• Maximum Operating Temperature-Fahrenheit: 180
• Maximum Working Pressure-PSI: 300
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Union Press
• Part Number: 88006877
• Series: LF25AUB-Z3
• Standard Reduced Pressure Setting-PSI: 50
• Strainer: Yes
• Strainer Material: Stainless Steel
• Thermal Expansion Bypass: Yes
• Type: Kit
• Valve Style: Standard
• End Style: Double Union Press
• Media: Water
• Nominal Size: 3/4 in
• Temperature Rating: 33 to 180 deg F
• Top to Inlet Center: 5-1/2 in
• Brand Name: WATTS
