Product Description

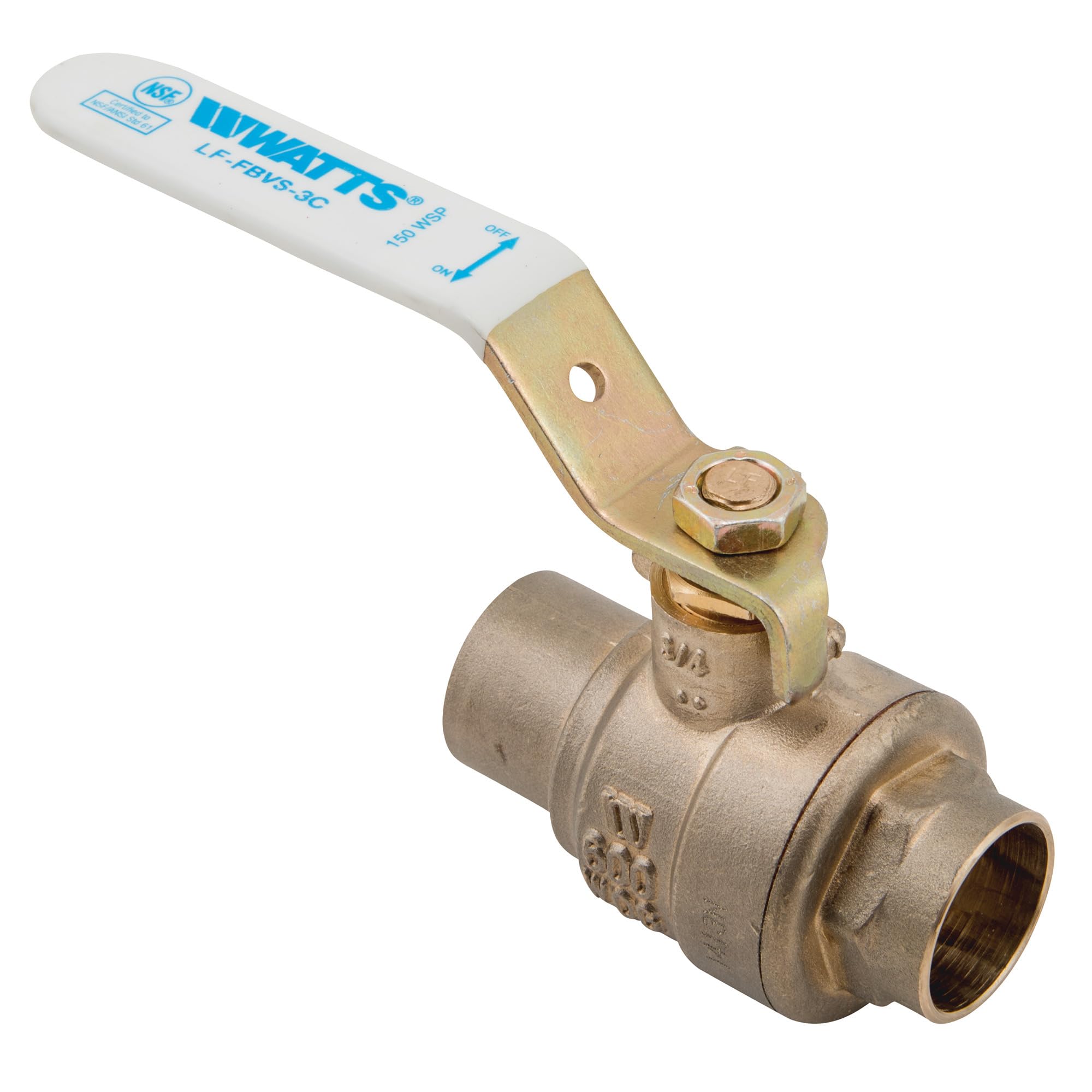

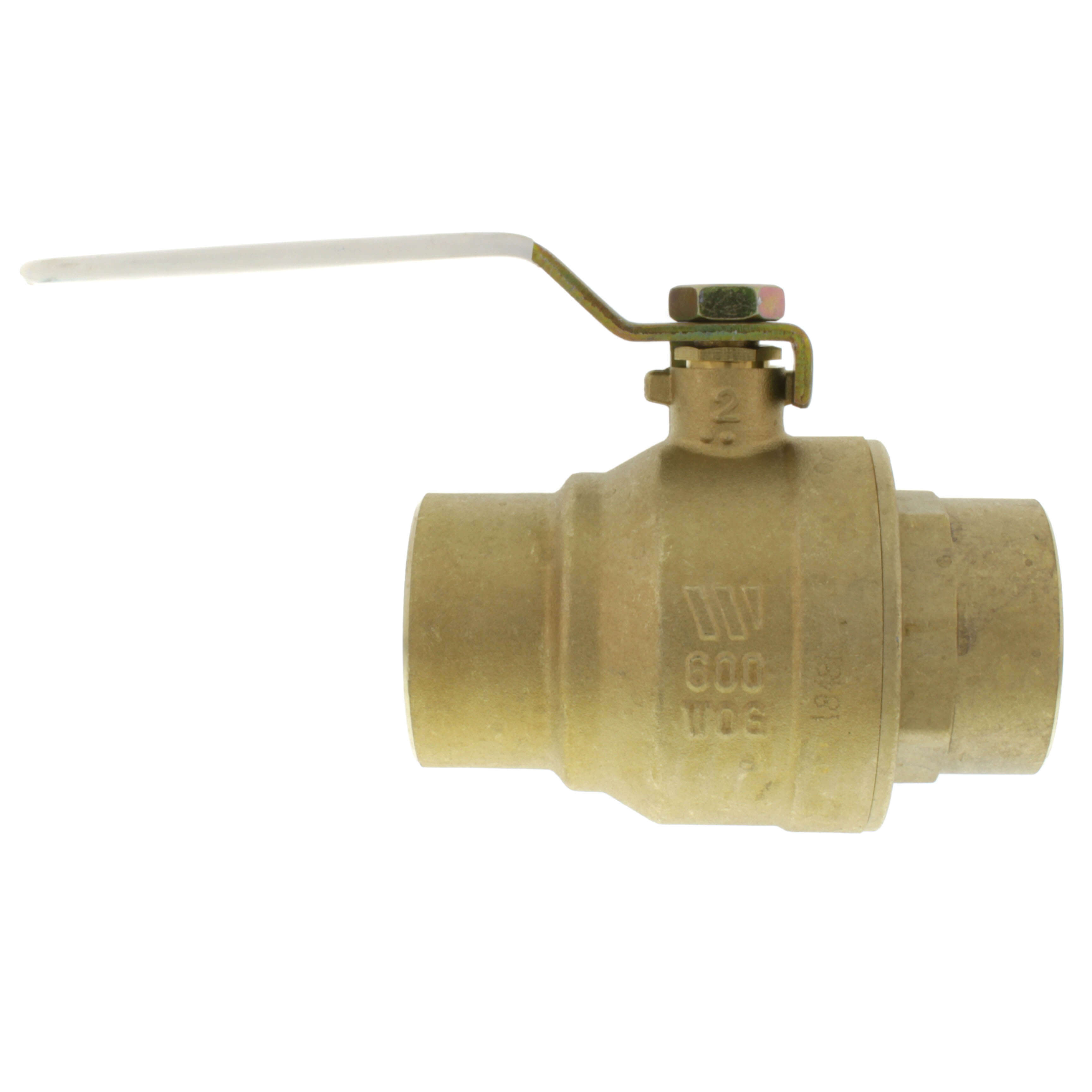

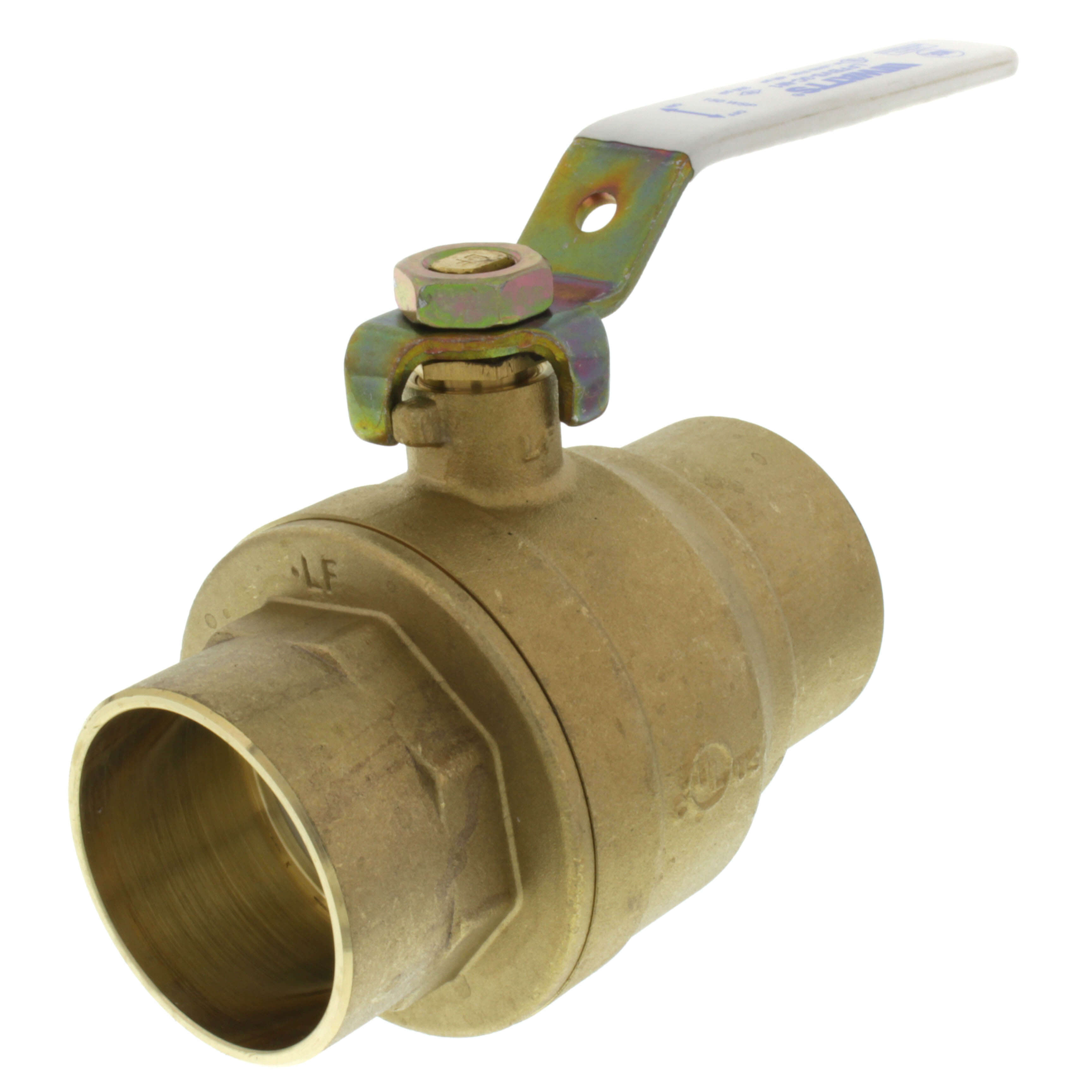

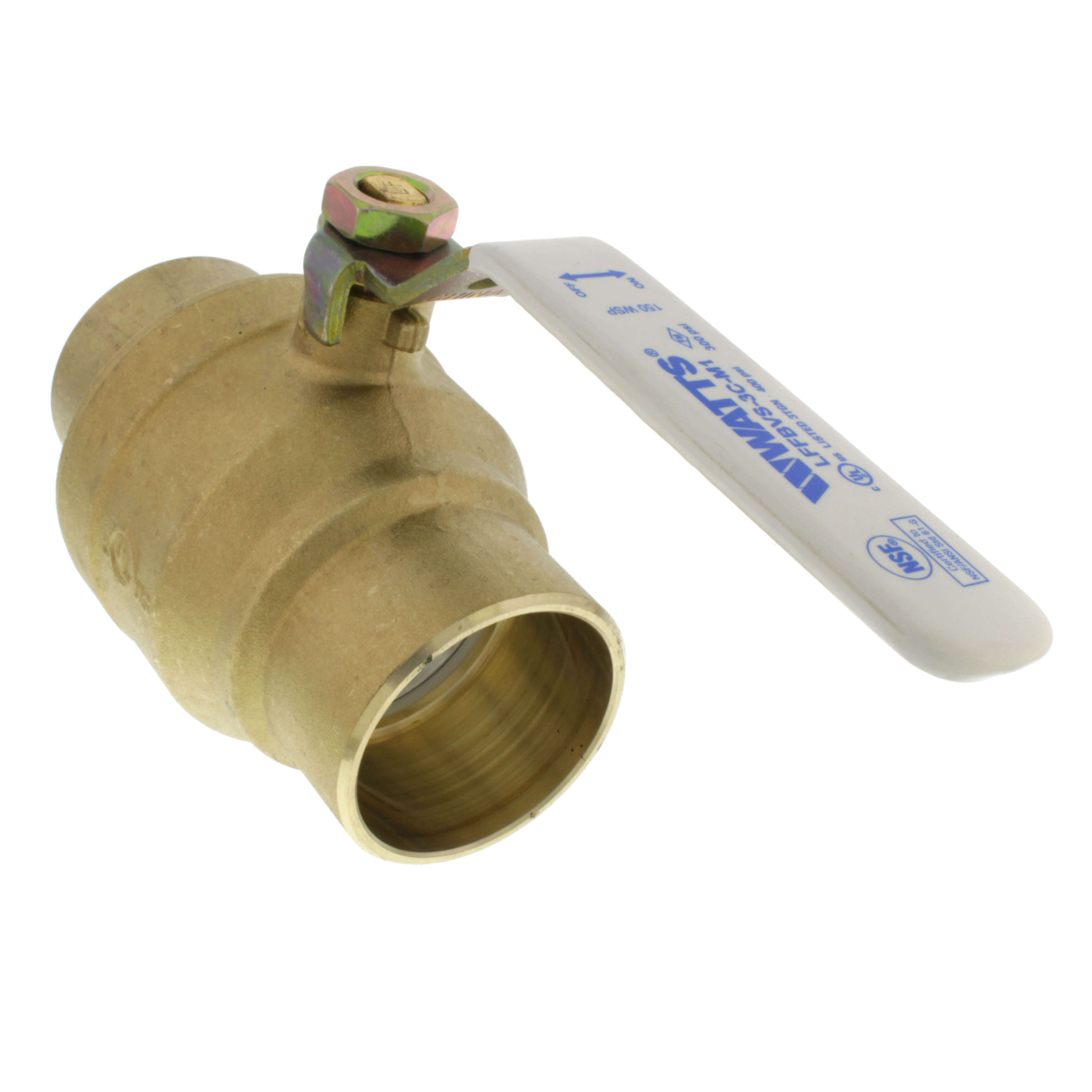

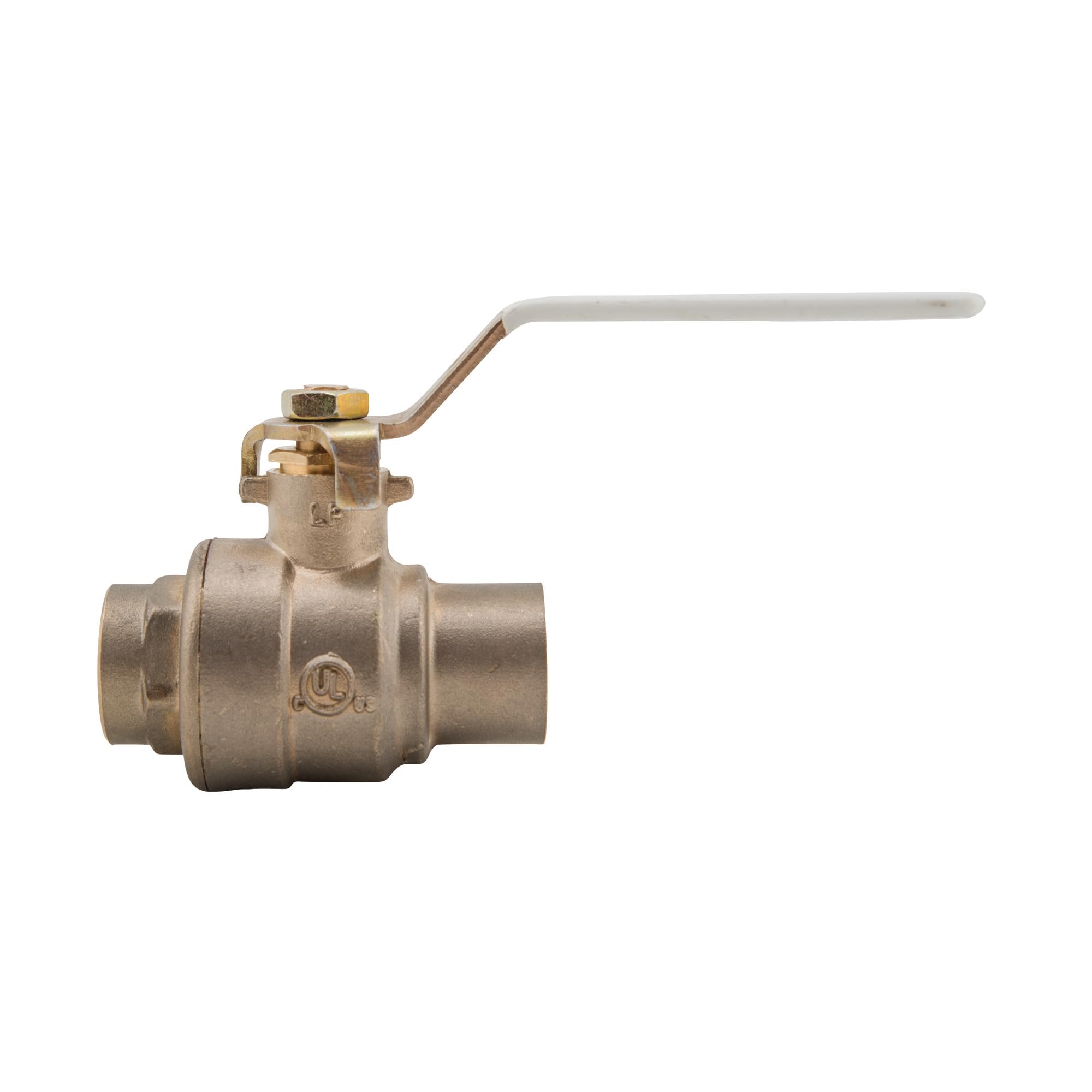

The WATTS 88005705 LFFBVS-3C-M1 is a 2-piece full port lead free ball valve used for liquids and gases in residential, commercial, and industrial applications. This 2 inch valve features a lead free brass body with solder end connections, and a bottom-loaded blowout-proof stem. It is certified to NSF/ANSI standard 61/8, UL listed, and FM approved.
- Constructed from high-quality lead-free copper silicon alloy with brass ball.
- Equipped with a chrome-plated lead-free brass ball, solder end connections, and adjustable packing gland.
- Rated for 600 psi (41 bar) WOG non-shock and 150 psi (10.3 bar) WSP with a temperature range of 0 to 400° F (-18 to 204° C).
Product Highlights
This 2-piece ball valve ensures reliable performance in potable water applications with its durable construction and comprehensive features.
Product Information
Standard Information
-
Brand: WATTS
-
Manufacturer Part Number: 88005705
-
Country of Origin: China
Technical Specifications
-
Ball Material: Chrome Plated Brass
-
Body Material: Lead Free Copper Silicon Alloy
-
Brand: Watts
-
Lead Free: YES
-
Part Number: 88005705
-
Port Type: Full
-
Seat Material: Virgin PTFE
-
Series: LFFBV-3C-M1
-
Stem Type: Bottom Loaded Blowout Proof
-
Valve Style: 2-piece
-
WOG Rating: 600 PSI
-
Inlet Connection Size: 2 IN
-
Inlet Connection Size-Metric: 50 MM
-
Inlet Connection Type: Socket
-
Outlet Connection Size: 2 IN
-
Outlet Connection Type: Socket
-
Maximum Temperature-Fahrenheit: 400
-
Minimum Temperature-Fahrenheit: -40
-
Minimum Temperature - Celsius: -40.00
-
Actuation: No
-
Control Type: Lever Handle
-
Stem Packing Material: PTFE
-
Stem Shaft Material: Brass
-
Thrust Washer Material: PTFE
-
Connection Type: Socket
-
Connection Method: Sweat
-
Max Pressure (PSI): 150
-
Valve Construction: 2 piece
-
Handle Style: Lever
-
Nominal Size: 2 in
-
Pressure Rating: 600 psi WOG, 150 psi WSP
-
Seal Material: PTFE
-
Handle Material: Steel
-
Packing Material: PTFE
-
Softgoods Material: PTFE/Virgin PTFE
-
Stem Material: Brass
-
Temperature Rating: 0 to 400 deg F
-
Trim Material: Brass/Virgin PTFE
-
Media: Gas, Liquid, Water
-
Configuration: 2-Piece
-
Inlet to Outlet Length: 5.25
-
Top to Inlet Center: 3.5
