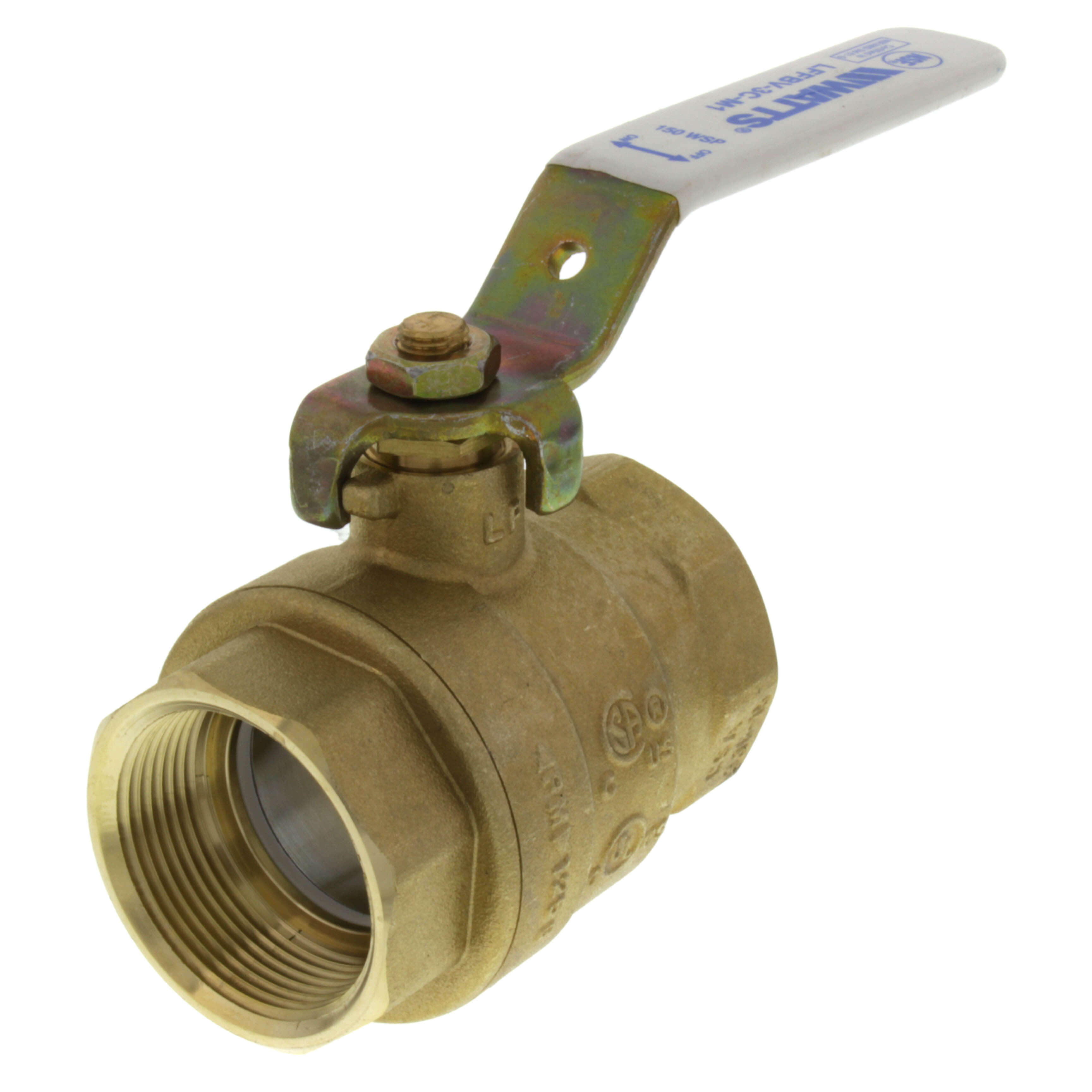

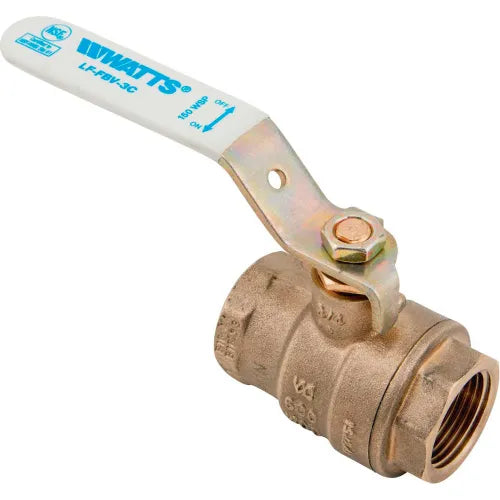

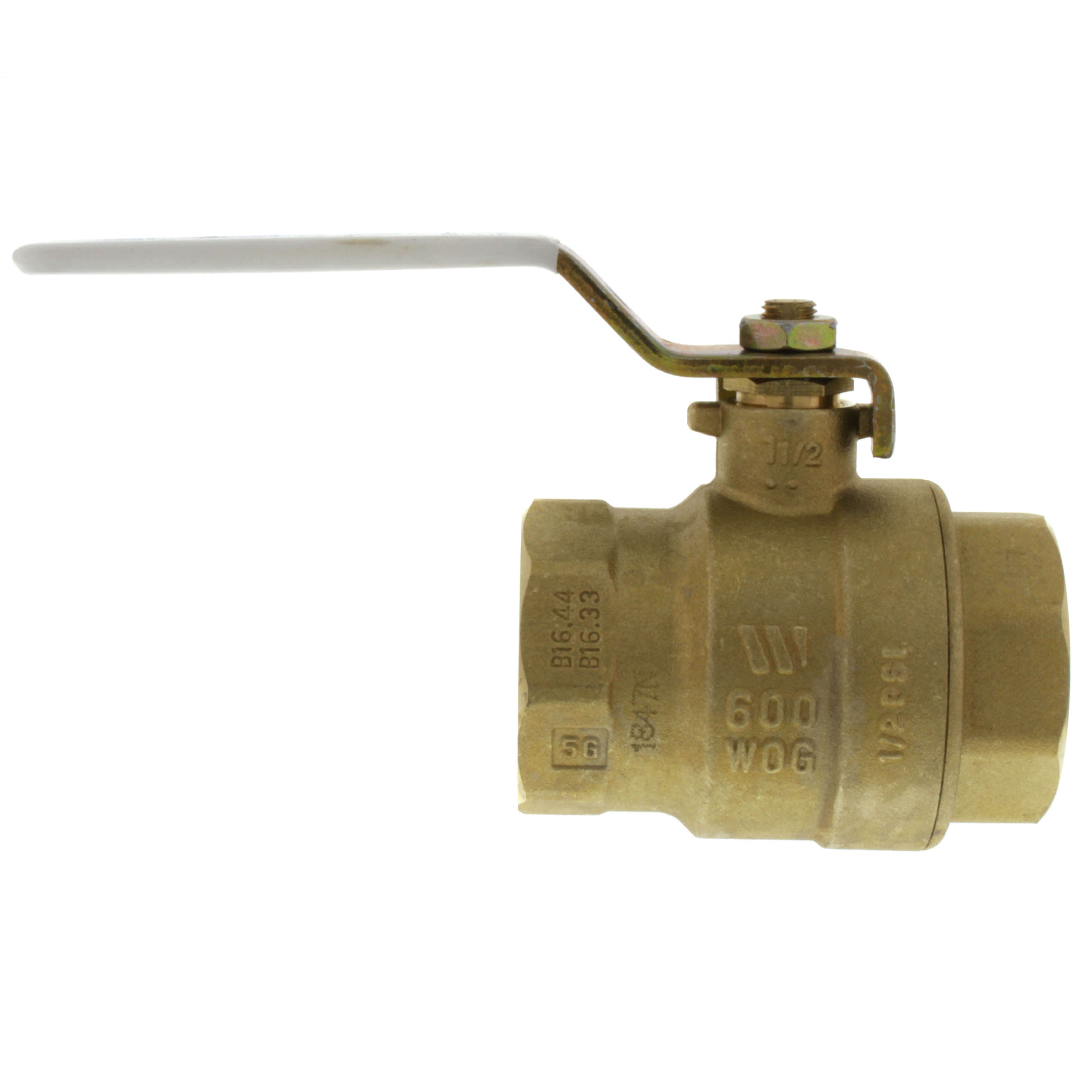

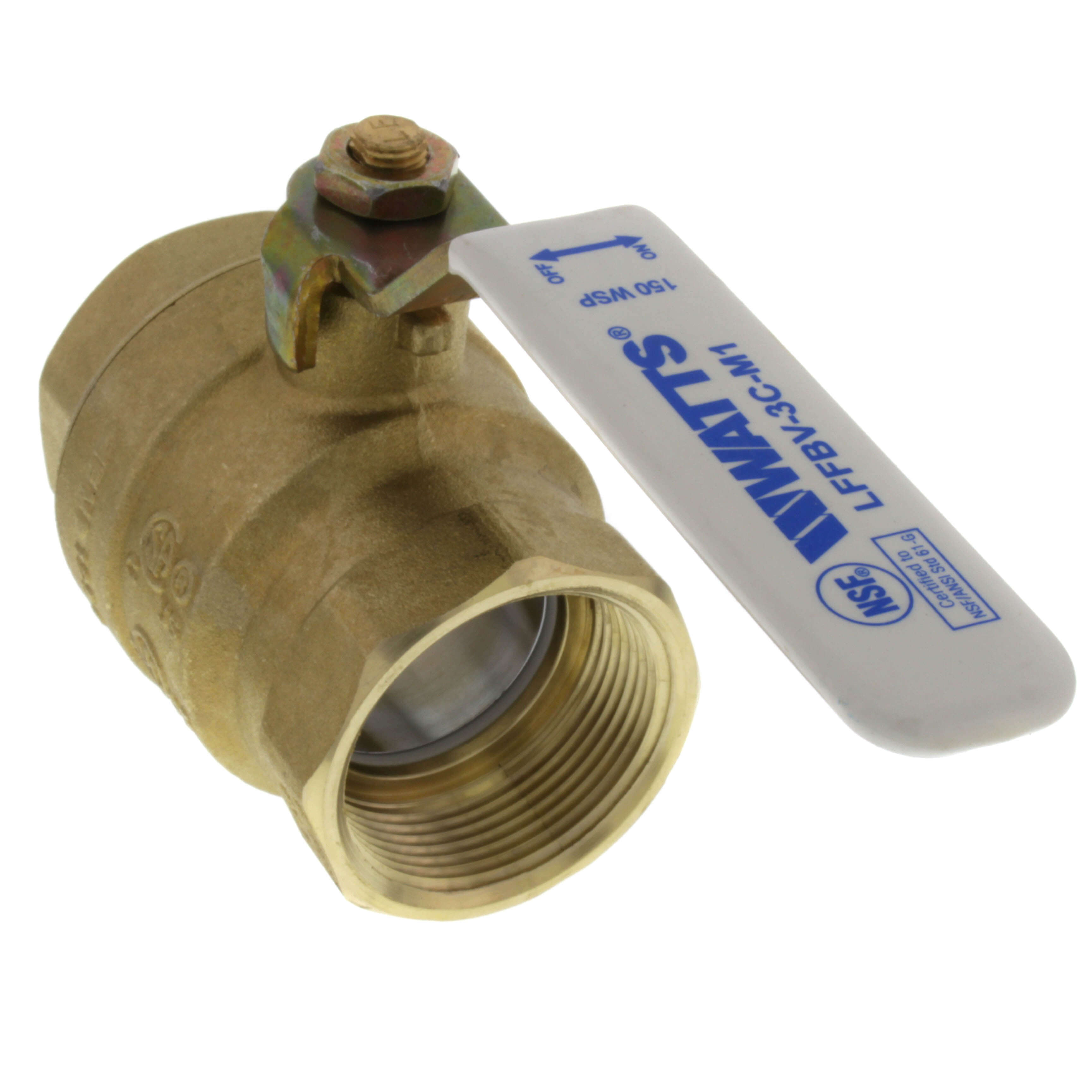

Watts 88005695 1 1/2 inches LFFBV-3C-M1 Ball Valve

Product Description

The Watts 88005695 1 1/2" LFFBV-3C-M1 ball valve is a 2-piece full port lead free ball valve used in residential and commercial potable water applications, suitable for a full range of liquids and gases. It features female threaded end connections, an adjustable packing gland, and a steel handle. The valve is designed for reliable performance in various industrial applications.

• Lead free brass body and adapter
• Female threaded end connections
• Adjustable packing gland

Product Highlights

This ball valve is suitable for a full range of liquids and gases, with a bottom loaded blowout proof stem and steel handle.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 88005695
• Country of Origin: China

Technical Specifications

• Brand: Watts
• Material: Brass
• Size: 1-1/2"
• Valve Type: Ball Valve
• Max Temperature: 400°F
• Connection Style: NPT
• Manufacturers Part Number: 88005695
• WOG: 600 PSI
• Port Type: Full Port
• Thread Type: Female
• Handle Style: Lever
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Max Pressure (PSI): 150
• Valve Construction: 2 piece
• Lead Free: Yes
• Temperature Range: minus 40 to 400 degrees f (minus 40 to 204 degrees c)
• Pressure Rating: 600 psi (41 bar) wog non-shock and 150 psi (10.3 bar) wsp
• End Connections: Female threaded
• Actuation: No
• Ball Material: Chrome Plated Brass
• Body Finish: Brass
• Body Material: Lead Free Copper Silicon Alloy
• Control Type: Lever Handle
• Inlet Connection Size: 1 1/2 IN
• Inlet Connection Size-Metric: 40 MM
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature - Celsius: -18.00
• Minimum Temperature-Fahrenheit: 0
• Outlet Connection Size: 1 1/2 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 88005695
• Seat Material: Virgin PTFE
• Series: LFFBV-3C-M1
• Stem Packing Material: PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: PTFE
• Valve Style: 2-piece
• WOG Rating: 600 PSI
• Configuration: 2-Piece
• Handle Material: Steel
• Inlet to Outlet Length: 3-3/4 in
• Lead-Free/Contains Lead: Lead-Free
• Media: Gas, Liquid, Water
• Nominal Size: 1-1/2 in
• Operator Type: Lever Handle
• Packing Material: PTFE
• Seal Material: PTFE
• Softgoods Material: PTFE/Virgin PTFE
• Stem Material: Brass
• Temperature Rating: 0 to 400 deg F
• Top to Inlet Center: 3 in
• Trim Material: Brass/Virgin PTFE
