Product Description

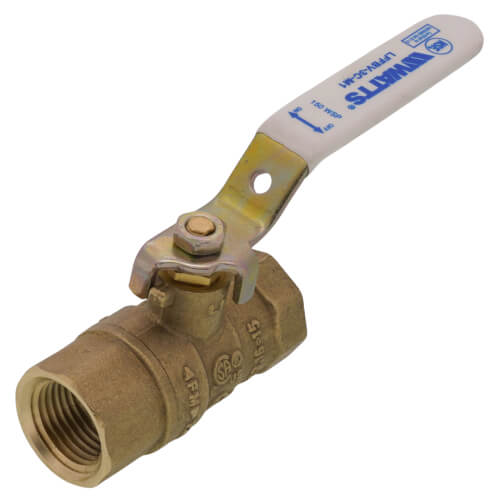

The Watts Regulator Company 88005687 is a 1/2 inch lead-free ball valve designed for both commercial and industrial applications. This two-piece valve features a full port design and is suitable for use with gas and liquids. It operates effectively at a maximum pressure of 150 psi WSP and 600 psi WOG. The valve is constructed with a copper silicon alloy body and has been engineered to prevent leaks through its fluorocarbon elastomer stem O-ring.
- Lead-free brass construction
- Lever handle actuator for easy use
- Suitable for high-temperature applications up to 400 degrees F
Product Highlights
This lead-free ball valve is compliant with various standards ensuring safety and reliability in plumbing systems.
Product Information
Standard Information
-
Manufacturer: Watts Regulator Company
-
Type: 2-Piece
Technical Specifications
-
Nominal Size: 1/2 inch
-
Orifice Size: 1/2 inch
-
Body Material: Copper Silicon Alloy
-
Ball Material: Polished Chrome Brass
-
End Style: FNPT
-
Pressure Rating: 150 psi WSP / 600 psi WOG
-
Temperature Rating: -40 to 400 degrees F
-
Length from Inlet to Outlet: 2-3/8 inches
-
Top to Inlet Center Measurement: 1-13/16 inches
