Watts 88005598 3/8 inches LFFBV-3C-M1 Ball Valve

Product Description

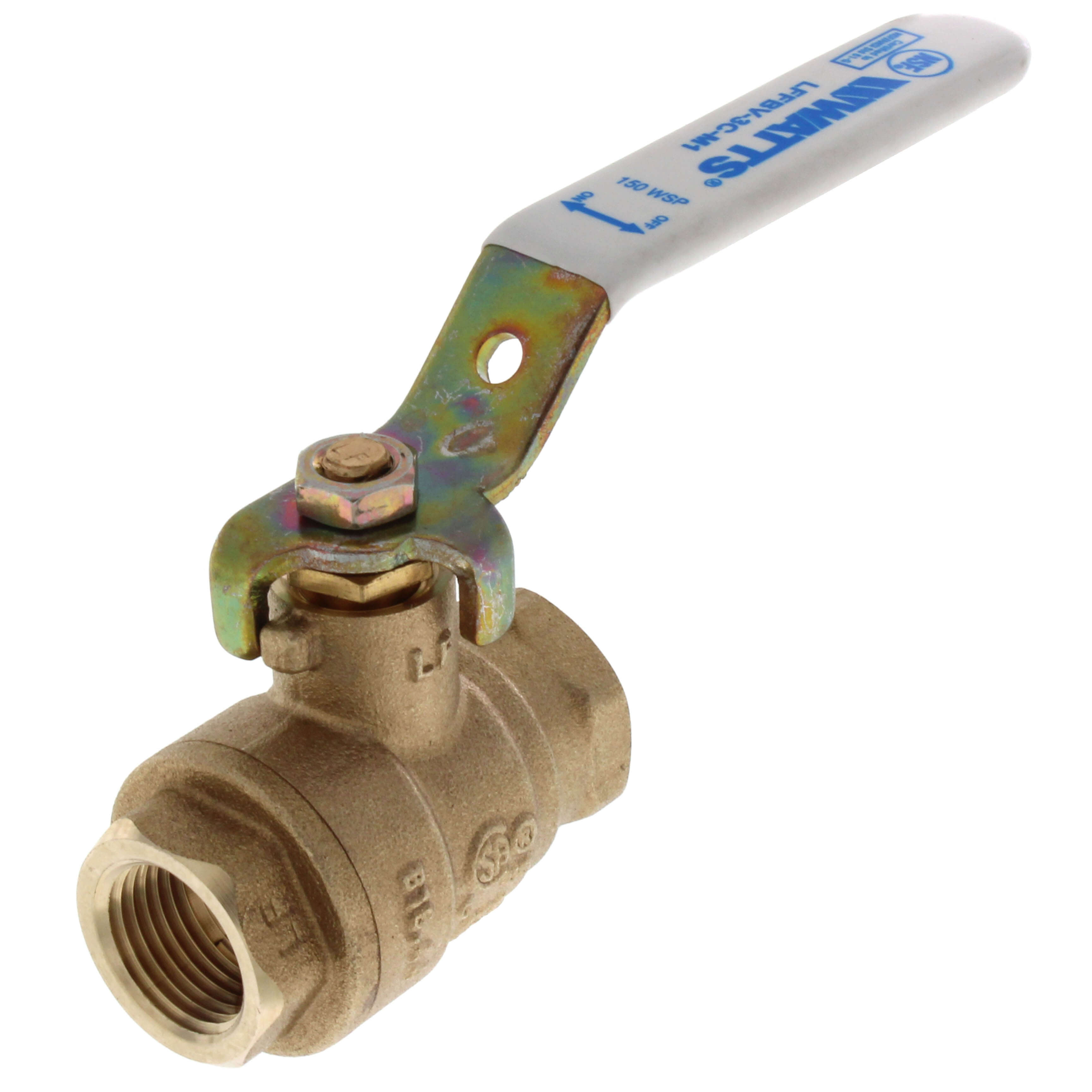

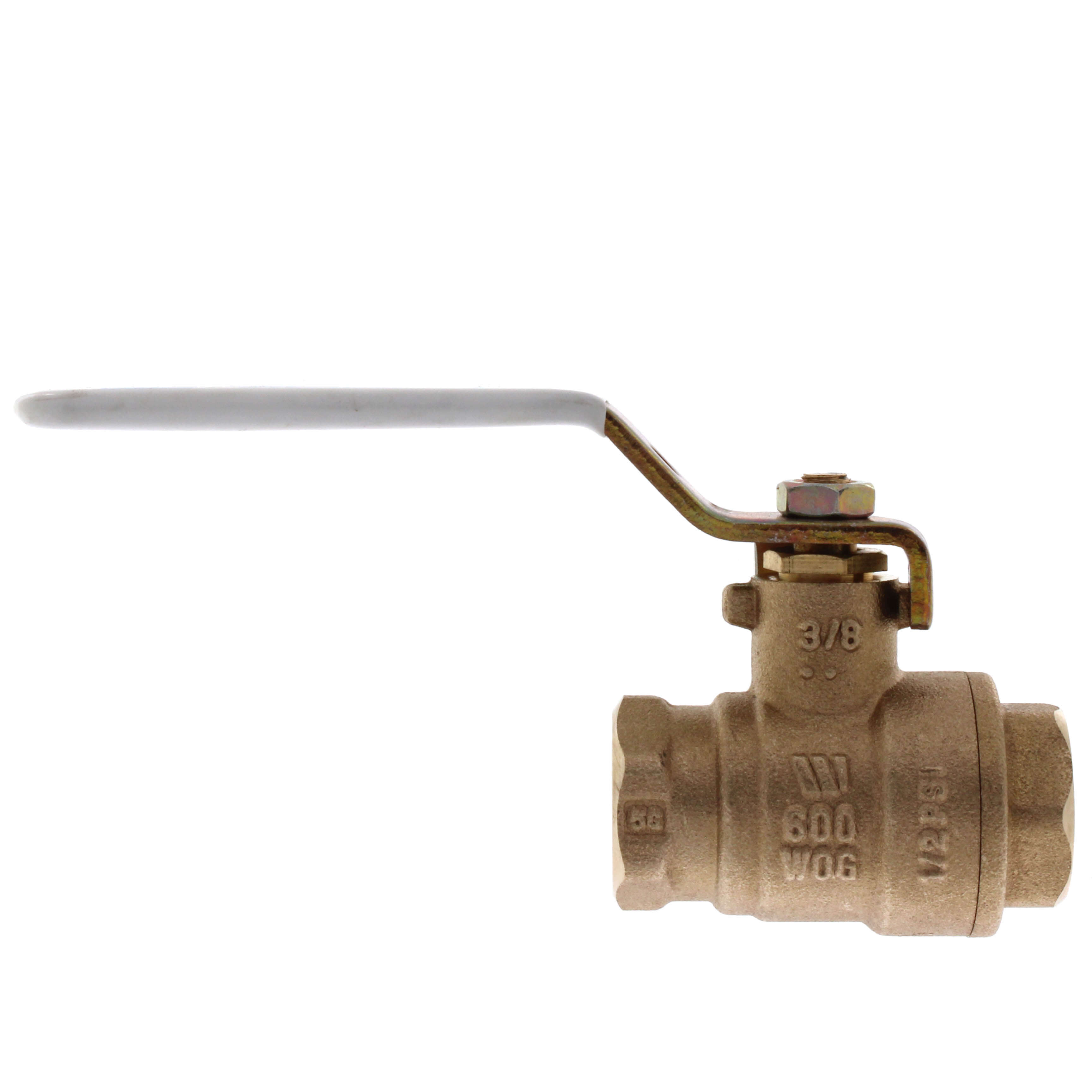

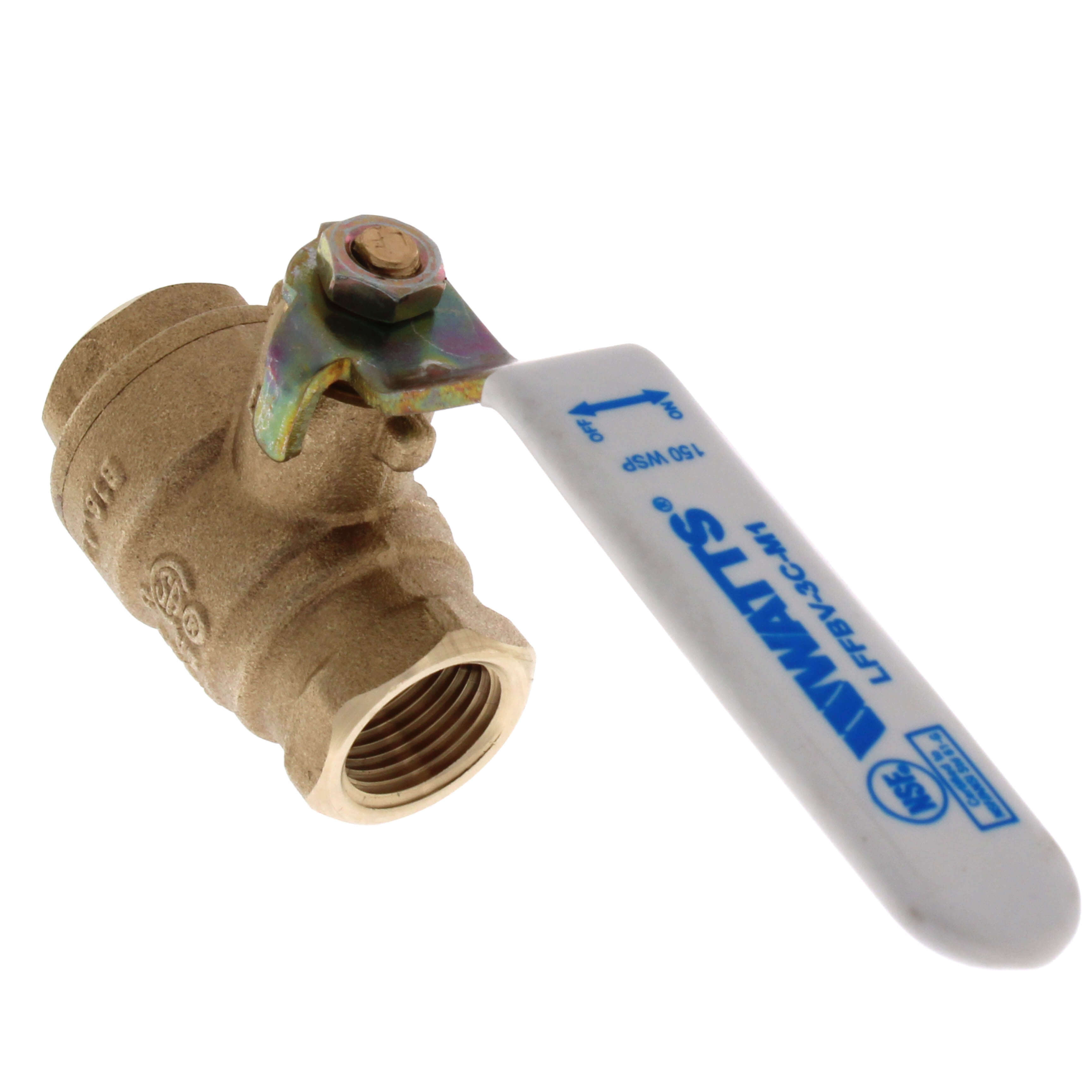

The Watts 88005598 3/8" 2-piece full port lead free ball valve is used in residential and commercial potable water applications, suitable for a full range of liquids and gases. It features a lead free brass body and adapter, female threaded end connections and a steel handle.

• Lead free brass body and adapter
• Female threaded end connections
• Adjustable packing gland

Product Highlights

This valve is suitable for a full range of liquids and gases with a temperature range of minus 40 to 400 degrees F and a pressure rating is 600 PSI WOG non-shock and 150 PSI WSP.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 88005598
• Country of Origin: China

Technical Specifications

• Warranty: 1 yr
• PSI: 150 psi
• Brand: Watts
• Material: Brass
• Size: 3/8"
• Valve Type: Ball Valve
• Max Temperature: 400°F
• Connection Style: NPT
• Manufacturers Part Number: 88005598
• Connection: Female Threaded End Connections
• Port Type: Full Port
• Application: Commercial and industrial applications for a full range of liquids and gases
• Handle: Steel Handle
• WOG: 600
• Lead Free: Yes
• Thread Type: Female
• Handle Style: Lever
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Max Pressure (PSI): 150
• Valve Construction: 2 piece
• Country of Origin (subject to change): China
• Actuation: No
• Assembled Dry: No
• Balance Stop Plate: No
• Ball Material: Chrome Plated Brass
• Body Finish: Brass
• Body Material: Lead Free Copper Silicon Alloy
• Buy American Act Compliant: NO
• Class Rating: Does Not Apply To Product
• Control Type: Lever Handle
• CV Rating: Does Not Apply To Product
• EAN: 098268163742
• Electrical Rating: Does Not Apply To Product
• Inlet Connection Size: 3/8 IN
• Inlet Connection Size-Metric: 10 MM
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature - Celsius: -18.00
• Minimum Temperature-Fahrenheit: 0
• Operating Torque: Does Not Apply To Product
• Outlet Connection Size: 3/8 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 88005598
• Seat Material: Virgin PTFE
• Series: LFFBV-3C-M1
• Stem Packing Material: PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: PTFE
• Type: Kit
• Valve Style: 2-piece
• WOG Rating: 250 PSI
