Watts 88005500 Ball Valve 3 Inch Full Port

Product Description

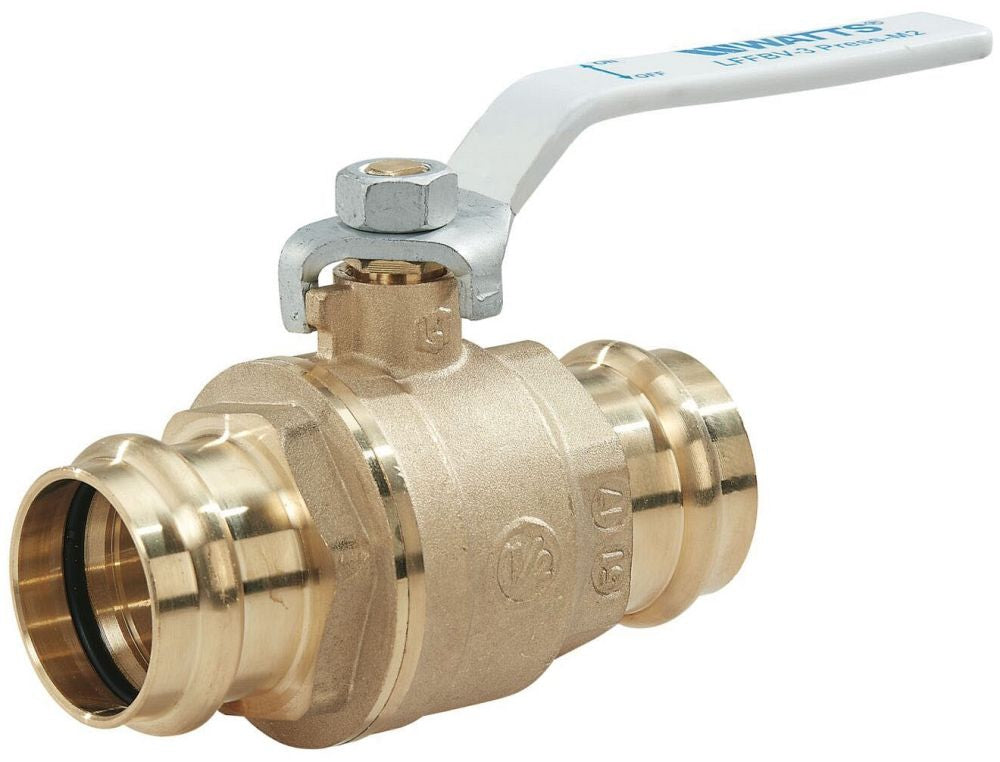

The Watts 88005500 ball valve is a 2-piece lever handle valve designed for plumbing applications. It has a nominal size of three inches and operates under a pressure rating of two hundred fifty PSI for water and steam. The valve is made from chrome plated brass and features a full port design for optimal flow.

• 3 inch nominal size with press connections
• Rated for temperatures up to two hundred fifty degrees Fahrenheit
• Low lead content complies with safety standards

Product Highlights

This valve is suitable for residential and commercial plumbing systems, providing reliable performance in various applications.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Model: LFFBV-3-PRESS-M2

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• End Style: Press
• Temperature Rating: 32 to 250 degrees Fahrenheit
• Pressure Rating: 250 PSI WOG
• Inlet to Outlet Length: 7.38 inches
• Nominal Size: 3 inches
• Orifice Size: 2.894 inches
• Port Type: Full
• Softgoods Material: PTFE/EPDM
