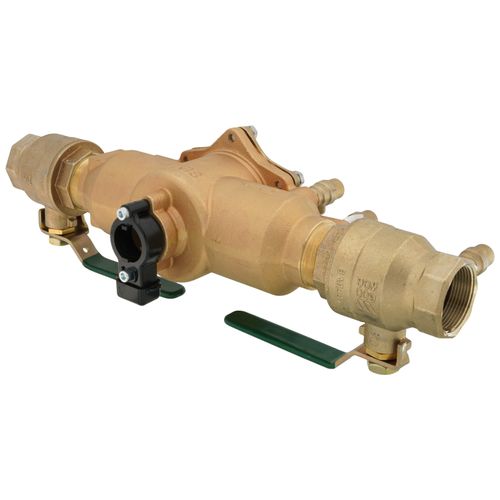

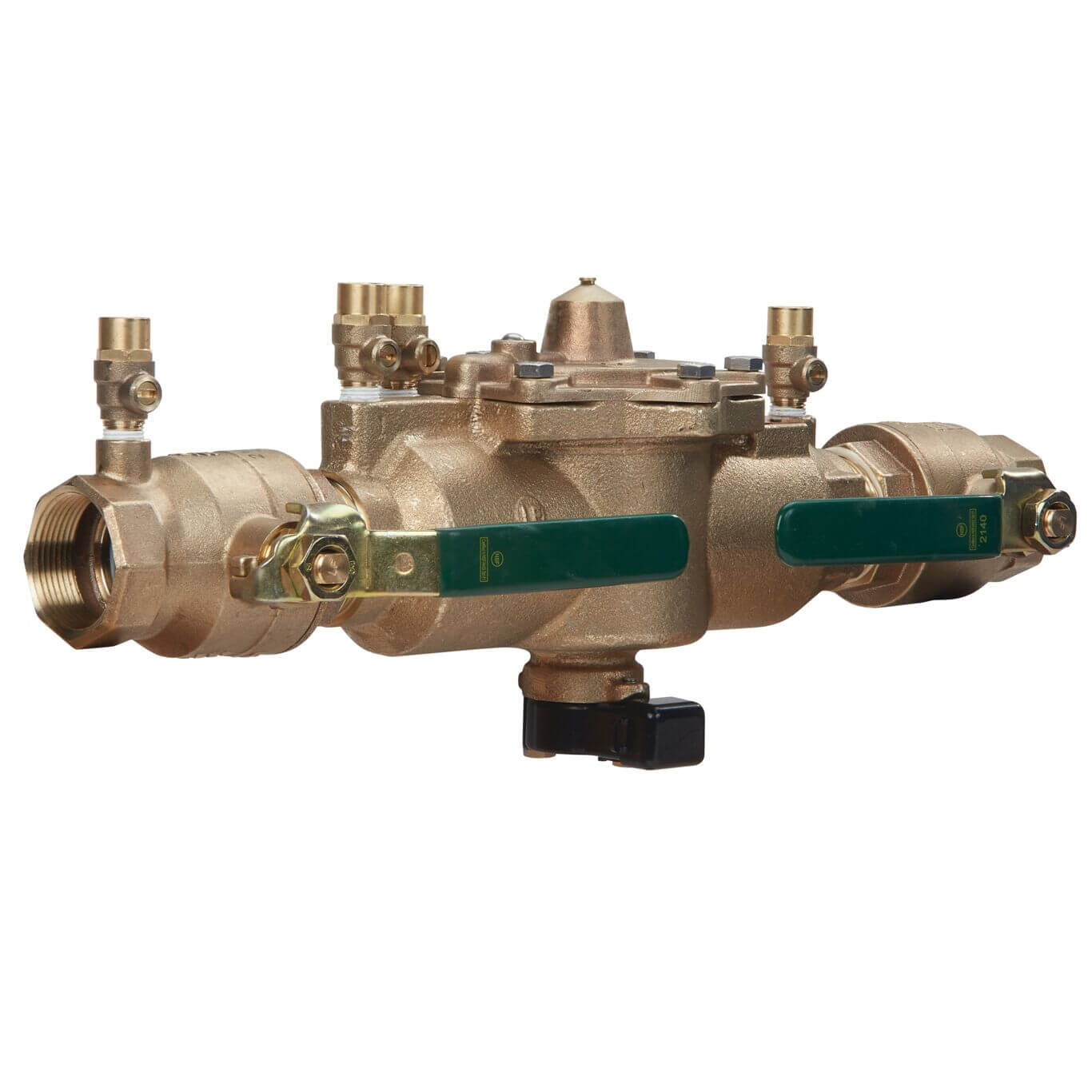

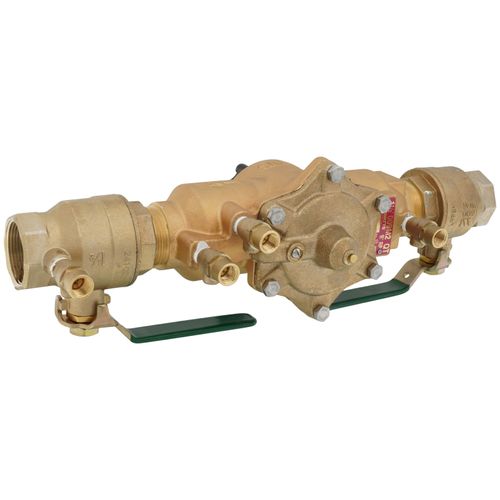

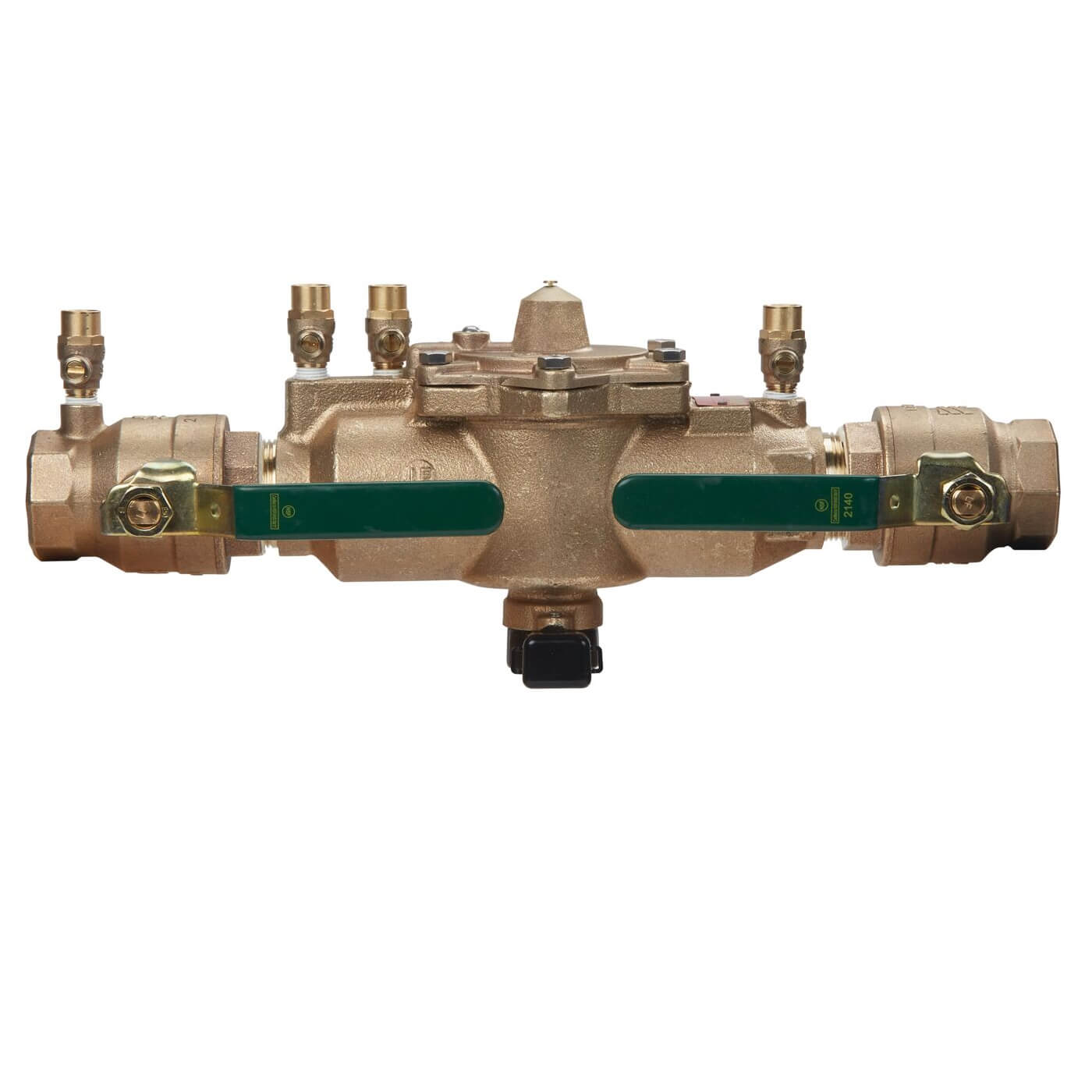

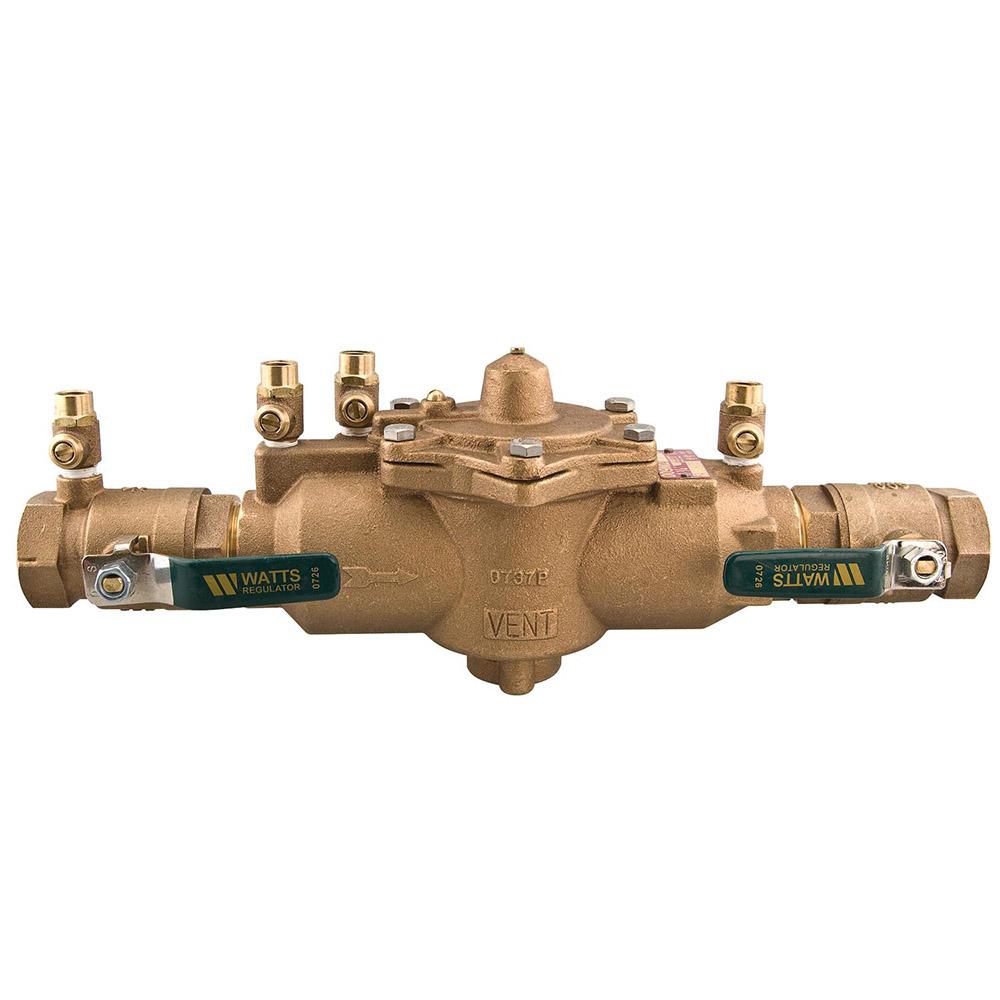

Watts 88004034 1 1/2 inches Bronze Reduced Pressure Zone Assembly Backflow Preventer, Quarter Turn Shutoff Valves, Backflow Flood Sensor

Product Description

The WATTS 88004034 1 1/2" reduced pressure zone assembly backflow preventer helps prevent polluted water from entering the potable water supply due to backsiphonage or backpressure, complying with plumbing codes. Its compact design allows easy maintenance with a single access cover. It is ideal for continuous pressure piping applications and cross-connections identified as health hazards.

• Features flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve.
• Bronze body construction for durability.
• Quarter turn full port resilient seated ball valve shutoffs.

Product Highlights

This assembly features NPT end connections, top-mounted test cocks, two in-line independent check valves, and replaceable check seats with an internal relief valve.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 88004034
• Country of Origin: US

Technical Specifications

• Type: Reduced Pressure Zone Assembly
• Bypass: No
• Material: Bronze
• Test_Status: Testable
• Connection_Size: 1 1/2"
• Connection_Type: Female Threaded
• Disc Material: Silicone
• Item Name: Reduced Pressure Zone Assembly with 1/4-Turn Ball Valve
• Model: 009M2-QT
• Pressure Rating: 175 psi
• Seat Material: Engineered Plastic
• Series: 009
• Temperature Rating: 33 - 180 deg F
• Includes: Flood Sensor, Quarter Turn Valve
• Lead Free: No
• Product Type: Backflow Preventer
• Max Pressure (PSI): 175
• Manufacturer (Brand): Watts
• Manufacturer Item Number: 88004034
• UPC: 098268346268
• Reduced Pressure: Yes
• Valve Size: 1 1/2 Inch
• Model Number: 009
• Inlet / Outlet Size: 1 1/2 Inches
