Watts 88004015 1/2 009-QT-FS

Product Description

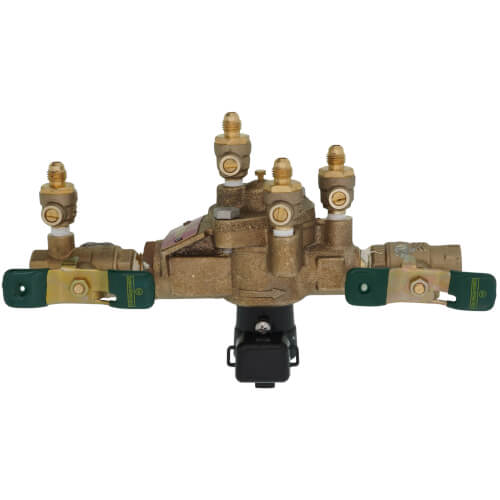

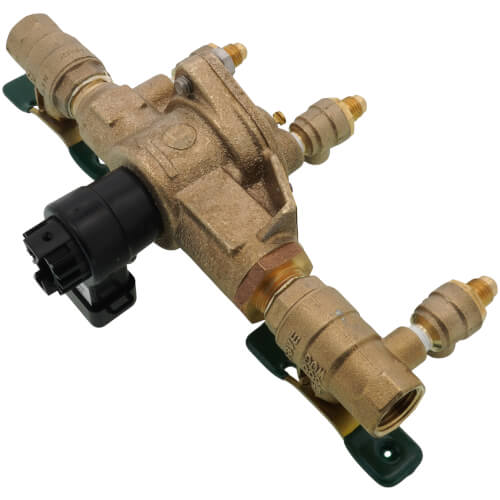

The Watts 88004015 is a 1/2 inch reduced pressure zone backflow preventer. It is designed to prevent contaminated water from entering the potable water supply due to back pressure or backsiphonage. This assembly is compliant with national plumbing codes and water authority standards.

• Compact modular design for easy maintenance.
• Integrated flood sensor with SentryPlus Alert technology.
• Constructed with durable bronze material.

Product Highlights

This backflow preventer is ideal for continuous pressure piping applications and cross-connections at health hazard points. It features an internal relief valve for minimized installation space and an accessible cover for in-line repairs.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268346145

Technical Specifications

• Backflow Type: Reduced Pressure Zone
• Ball Valve/Gate Valve Type: Quarter-Turn Ball Valve
• Body Material: Bronze
• Dimensions: 10 inches L x 5-7/8 inches H
• End Style: FNPT
• Media: Water
• Nominal Size: 1/2 inch
• Pressure Rating: 175 psi
• Temperature Rating: 33 to 180 degrees F
• Series: 009-FS
