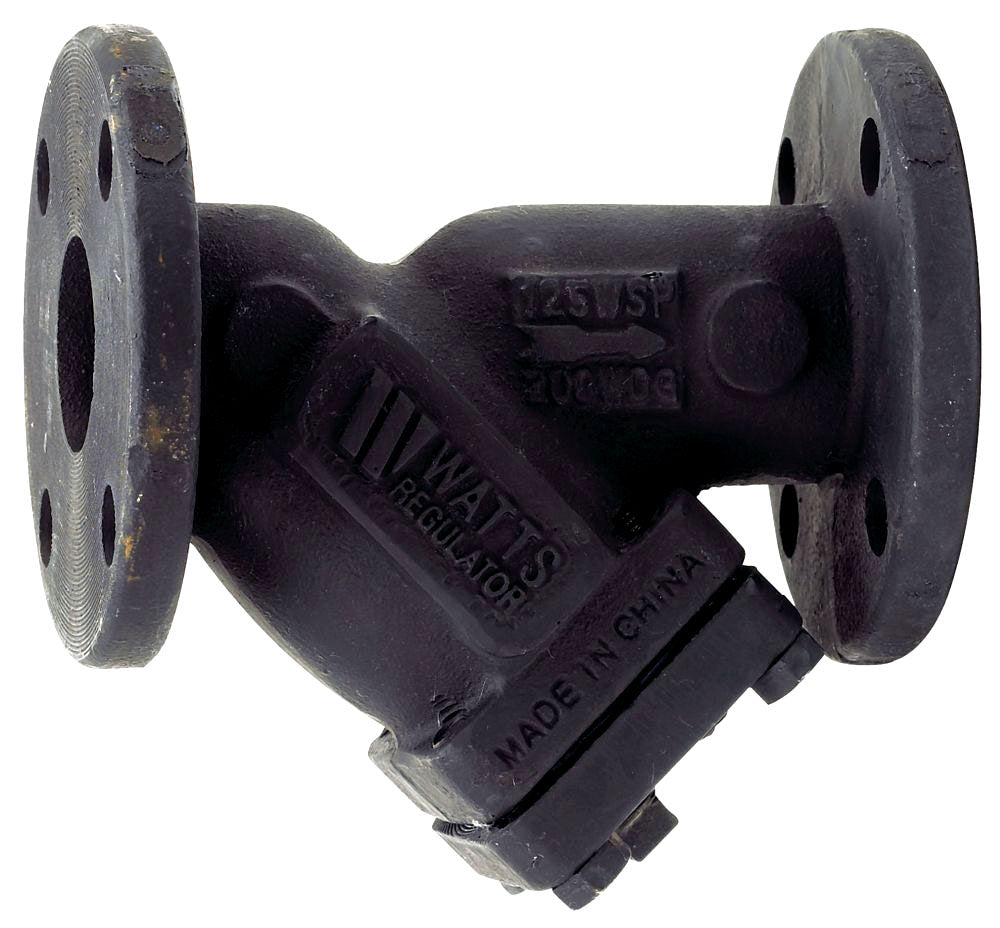

Watts 825202 3 Inch Flanged Cast Iron Wye Strainer

Product Description

The WATTS 825202 is a 3-inch flanged cast iron wye strainer designed to remove debris and particulate from pipelines in commercial and industrial fluid systems. The strainer body features a 1-inch FPT blowdown connection, allowing technicians to flush accumulated solids without fully disassembling the line. Rated for 125 lb flanged service, this unit suits high-flow liquid applications where protecting downstream equipment such as pumps, meters, and control valves is a priority. Licensed plumbers and pipefitters typically specify this strainer during new installation or retrofit of mechanical piping systems.

This wye strainer is suited for commercial plumbing, hydronic heating, cooling, and industrial process piping applications where a flanged 3-inch connection is required. The 125 lb flange rating aligns with standard ANSI Class 125 cast iron flanged piping systems common in large-scale mechanical rooms and industrial facilities. The 1-inch FPT blowdown port simplifies routine maintenance by providing a dedicated drain point for field servicing without full line shutdown.

Key Features

• 3-inch flanged end connections rated for 125 lb service
• Cast iron body for durability in commercial and industrial piping environments
• Integral 1-inch FPT blowdown connection for in-line debris flushing
• Wye-style configuration allows periodic cleaning with minimal system disruption
• Protects downstream pumps, meters, and control valves from particulate damage

Compatibility

Designed as an OEM-style replacement or new-installation strainer for ANSI Class 125 flanged cast iron piping systems in commercial plumbing and mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local mechanical codes and ASME B31 piping standards. Shut down and depressurize the pipeline fully before cutting in or replacing the strainer. Orient the wye body so the strainer basket leg points downward or at an angle to allow gravity-assisted sediment collection and easy blowdown. The 1-inch FPT blowdown port should be piped to a safe drain point before placing the system back in service.

Technical Specifications

• Fitting Size: 3 inches
• Connection Type: Flanged
• Flange Rating: 125 lb
• Blowdown Connection: 1 inch FPT
• Fitting Material: Cast Iron
• Item Weight: 37 pounds

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 825202
