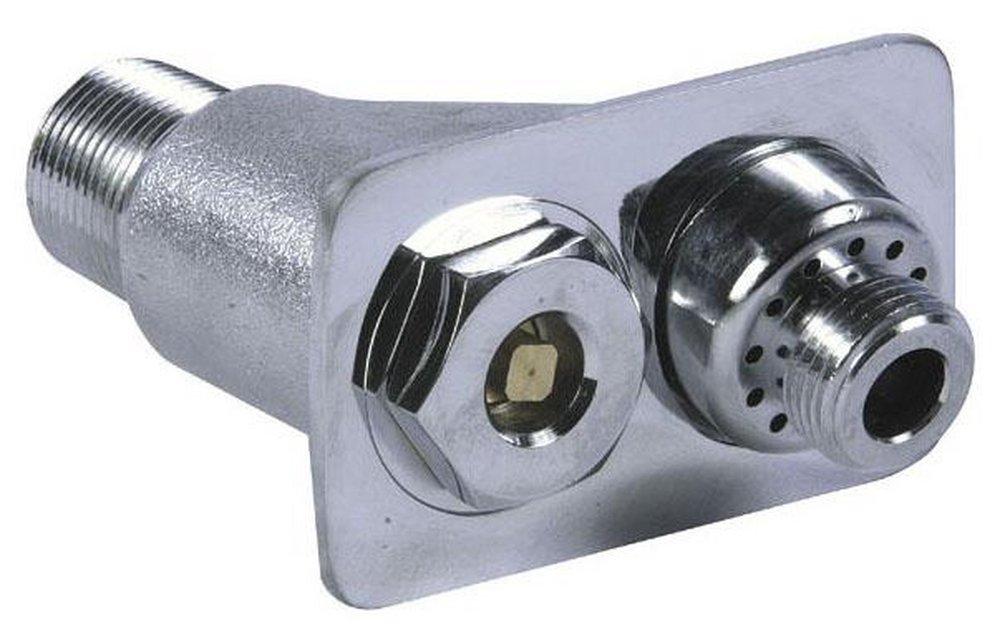

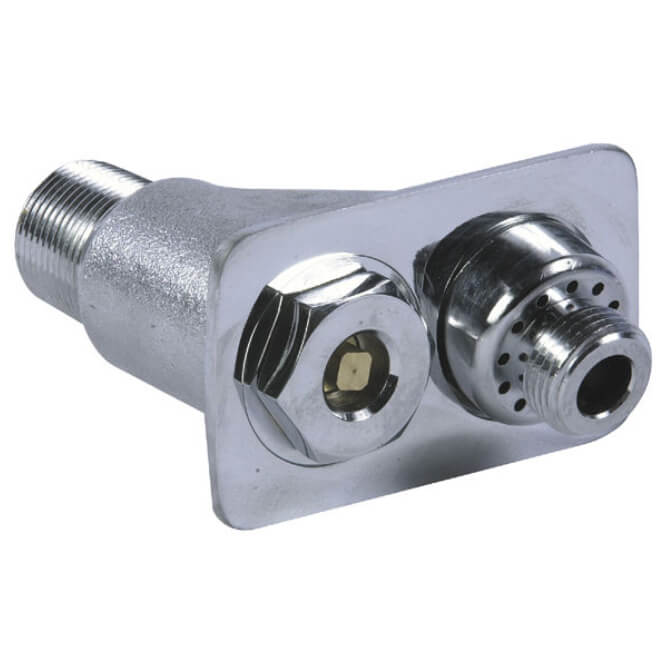

Watts 8142434 hy-430 wall hydrant 3/4 x 1 in.

Product Description

The WATTS 8142434 HY-430 is a moderate climate, key operated wall hydrant with a 3/4 x 1 inch pipe connection. It features an integral vacuum breaker and all bronze head, seat casting and internal working parts. It has a 3/4 inch hose connection and a loose key. Its maximum operating pressure is 125 psi.

• Female x Male pipe connection
• Vacuum breaker
• Key operated
• Moderate climate

Product Highlights

Wall hydrant features a chrome plated face, integral vacuum breaker, and all bronze head, seat casting and internal working parts. Complies with ASSE 1019-2004 and is UPC/IAPMO listed.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 8142434

Technical Specifications

• Maximum Operating Pressure: 125 psi
• Connection: 3/4 x 1 in. Female Threaded x Male Threaded
• Material: Chrome Plated
• Hose Connection: 3/4 IN
• Pipe Connection: 3/4 IN FIP x 1 IN MIP
• Climate: Moderate
• Size: 3/4" x 1"
• Inlet Type: FNPT x MNPT
• Anti-Siphon: Yes
• Application: Commercial
• Outlet Type: Male Hose
• Overall Size: 5"
• Product Type: Wall Hydrant
• Wall Thickness: 3-1/2"
• MPN: 8142434
• Manufacturer Part Number: 8142434
