WATTS 77SM1-20 PIPE FITTINGS
WATTS Watts 77SM1-20 1 1/2 IN ASTM A-126 CLASS B CAST IRON WYE PATTERN STRAINER 20 MESH SCREEN
WATTS 77SM1-20 PIPE FITTINGS

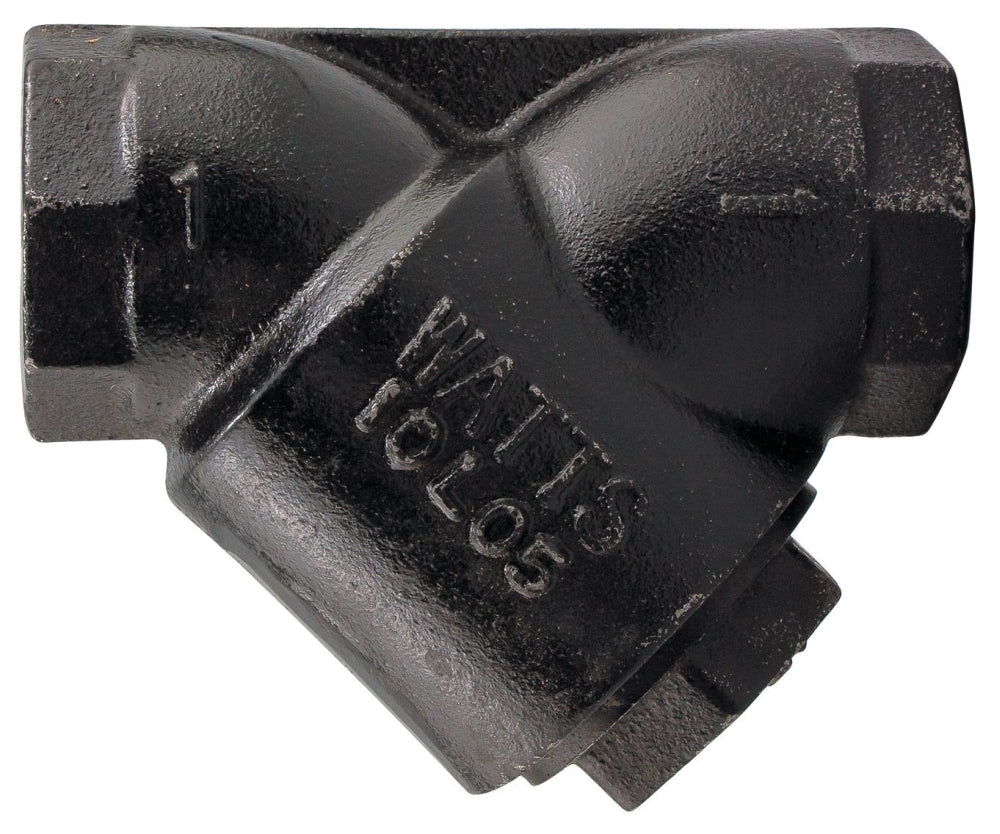

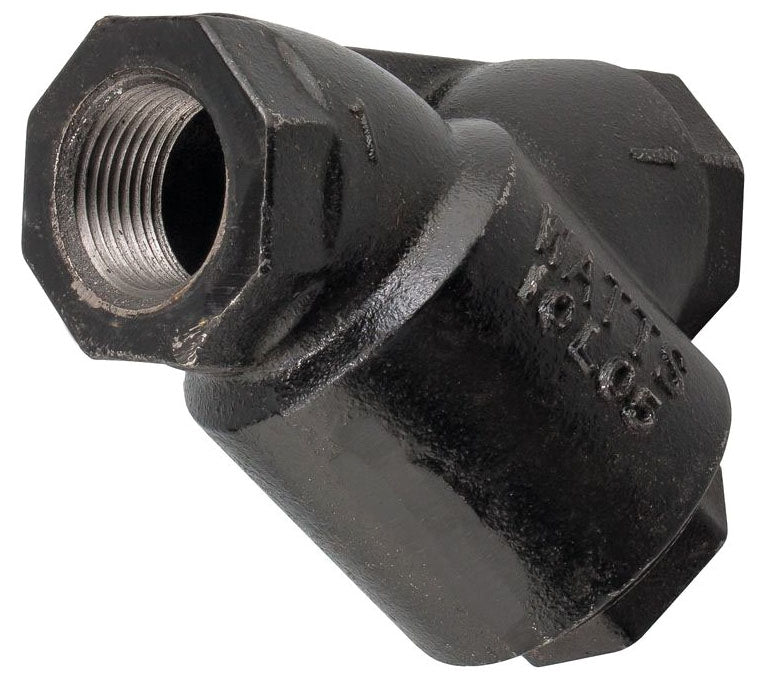

Watts 77SM1-20 1 1/2 IN ASTM A-126 CLASS B CAST IRON WYE PATTERN STRAINER 20 MESH SCREEN

Watts 77SM1-20 1 1/2 IN ASTM A-126 CLASS B CAST IRON WYE PATTERN STRAINER 20 MESH SCREEN

WATTS
Brand: WATTS
SKU: 77SM1-20
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Watts 77SM1-20 features a one and a half inch wye strainer designed for use in liquid and steam applications. This component helps prevent dirt and debris from damaging the piping system, ensuring smooth operation.

  • Constructed from ASTM A-126 cast iron
  • Includes a twenty mesh stainless steel screen
  • Designed for female threaded connections

Product Highlights

The Watts 77SM1-20 is efficient in filtering water and steam to protect system components from contaminants.

Product Information

Standard Information

  • Manufacturer: Watts
  • UPC: 98268643183
Technical Specifications
Type
Y Pattern
Nominal Size
1-1/2 Inch
Body Material
ASTM A-126 Cast Iron
Media Handled
Liquid, Steam
Mesh/Screen Material
Stainless Steel
Temperature Rating
150 to 406 Deg F
Pressure Rating
400 PSI WOG at 150 Deg F, 250 PSI WSP at 406 Deg F
Drain Connection
3/4 Inch Threaded
End Connection
Female Threaded x Female Threaded
End to End Distance
5-7/8 Inch
Inclusions/Features
Retainer Cap with Non-Asbestos Gasket and Tapped Blow Down Connection
Applicable Standard
MIL-S-16293
Blowdown Outlet Size
3/4 Inch
