Watts 77FDIFDA1254 77F-DI-FDA-125 Series Lead Free 4 in. x 4 in. x 1-1/2 in. Wye Pattern Strainer

Product Description

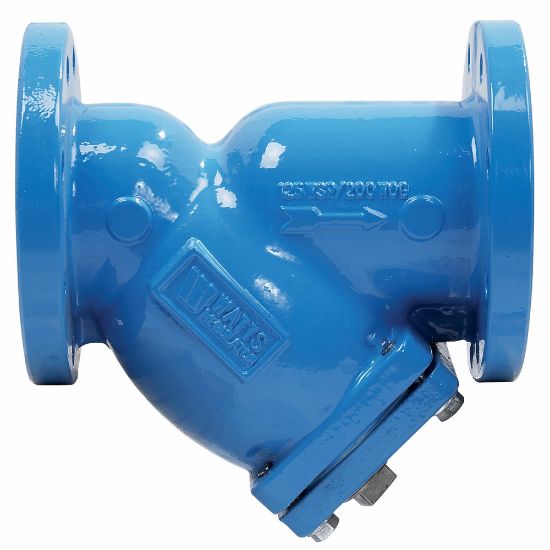

The Watts 77FDIFDA1254 is a 4 in. Model 77F-DI-FDA-125 cast iron flanged wye pattern strainer with 304 stainless steel perforated screens. It features a cast iron flanged retainer cap and a drain blow off connection furnished with a closure plug. The strainer also features a double coated, heat fused epoxy coating on the interior and exterior for FDA approved sanitary applications.

• Wye pattern
• Cast iron body
• 304 stainless steel perforated screens

Product Highlights

This wye pattern strainer has a cast iron body and 304 stainless steel perforated screens. It is flanged and epoxy coated.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 77FDIFDA1254
• Country of Origin: Canada

Technical Specifications

• Coating: Epoxy Coated
• Depth: 13-3/5 in.
• End Connection: Female Threaded x Flanged x Flanged
• End Connection 1: Female Threaded
• End Connection 2: Flanged
• End Connection 3: Flanged
• Fitting Size 1: 4 in.
• Fitting Size 2: 4 in.
• Fitting Sizes: 4 in. x 4 in. x 1-1/2 in.
• Height: 8-1/4 in.
• Lead Law Compliant: Yes
• Length: 12-1/8 in.
• Maximum Temperature: 353
• Minimum Temperature: 32
• Perforation Size: 1/16 in.
• Pressure - Maximum: 200 psi
• Pressure Class: 125#
• Specifications - ANSI: ANSI B16.1
• Specifications - ASTM: ASTM A-126
• Specifications - NSF: NSF 372
• Specifications - NSF Certified: Yes
• Style Name: 77F-DI-FDA-125 Series
• Valve Type: Y Strainer
• Product Type: Y Strainers
• Valve Body Material: Cast iron
• Width: 10-1/3 in.
• Specifications - UL Listed: No
• Strainer Type: Wye
• Mesh Size: 20
• Valve Body Style: Wye
