Product Description

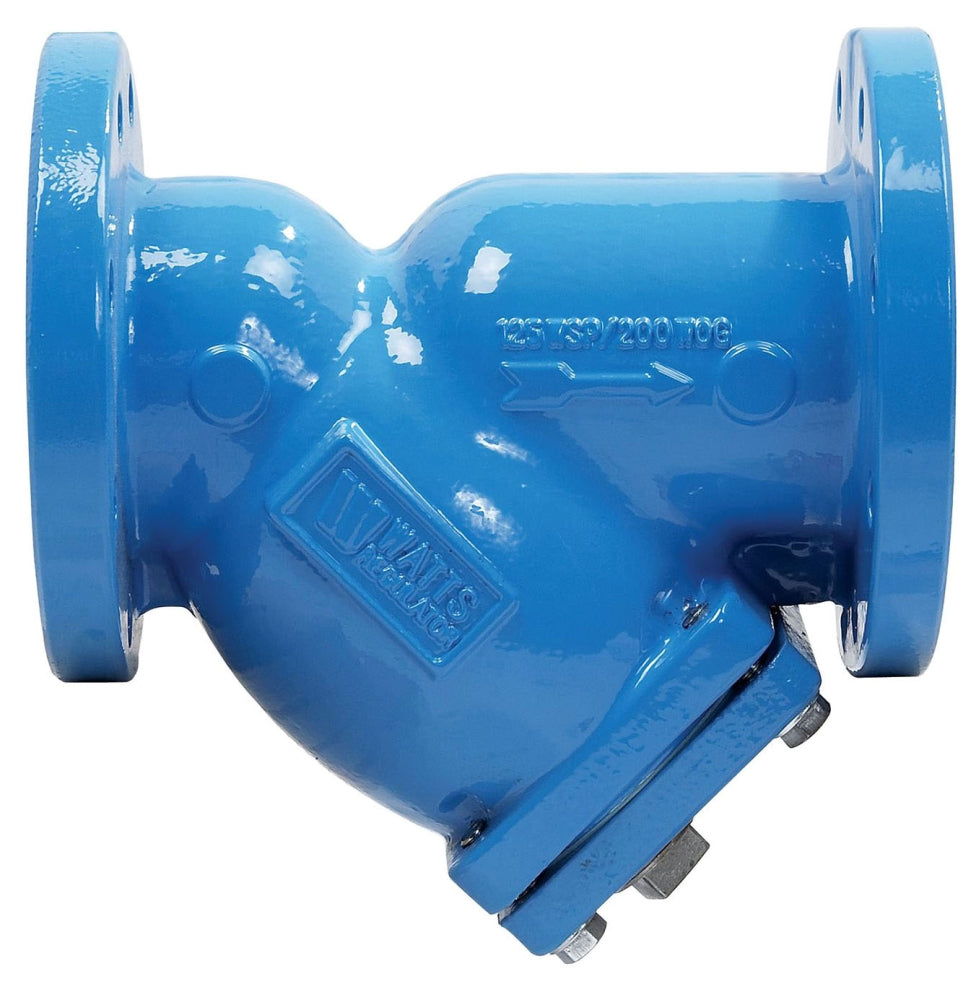

The Watts 77F-DI-FDA-125 is a six-inch cast iron Wye strainer designed for handling water and steam applications.
- Wye strainer with a Y pattern
- Flanged connections for secure installation
- Includes tapped retainer cap and closure plug
Product Highlights
This product meets ANSI B16.1 standards and features a lead-free design suitable for sanitary applications.
Product Information
Standard Information
-
Manufacturer: Watts
-
UPC: 98268051896
Technical Specifications
-
Nominal Size: 6 Inch
-
Type: Y Pattern
-
Body Material: ASTM A-126 Cast Iron
-
Mesh/Screen Material: Stainless Steel
-
Seal Material: Graphite
-
Drain Connection: 2 Inch Threaded
-
End Connection: Flanged x Flanged
-
End to End Distance: 18-1/2 Inch
-
Pipe Size to Vertical Dimension: 13-1/2 Inch
-
Mesh/Screen Size: 1/8 Inch
-
Temperature Rating: 210 to 353 Deg F
-
Pressure Rating: 200 PSI WOG at 210 Deg F, 125 PSI WSP at 353 Deg F
-
Media Handled: Water, Steam
-
Inclusions/Features: Tapped Retainer Cap, Closure Plug
-
Applicable Standard: ANSI B16.1, WW-S-2739, NSF/ANSI 372
-
Screen Area: 278 Square Inch
