Watts 77F-DI-125 4 Flg Wye Strn

Product Description

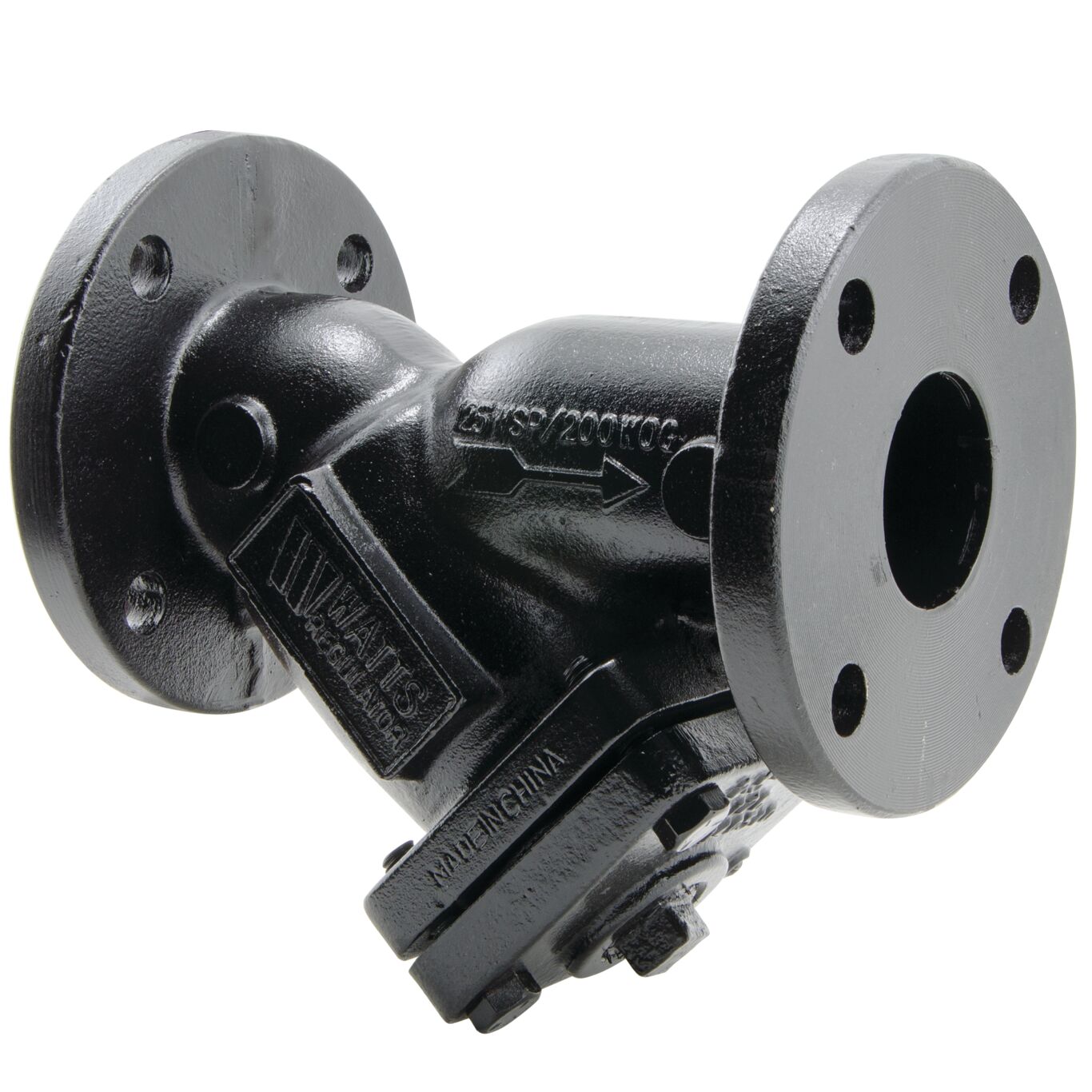

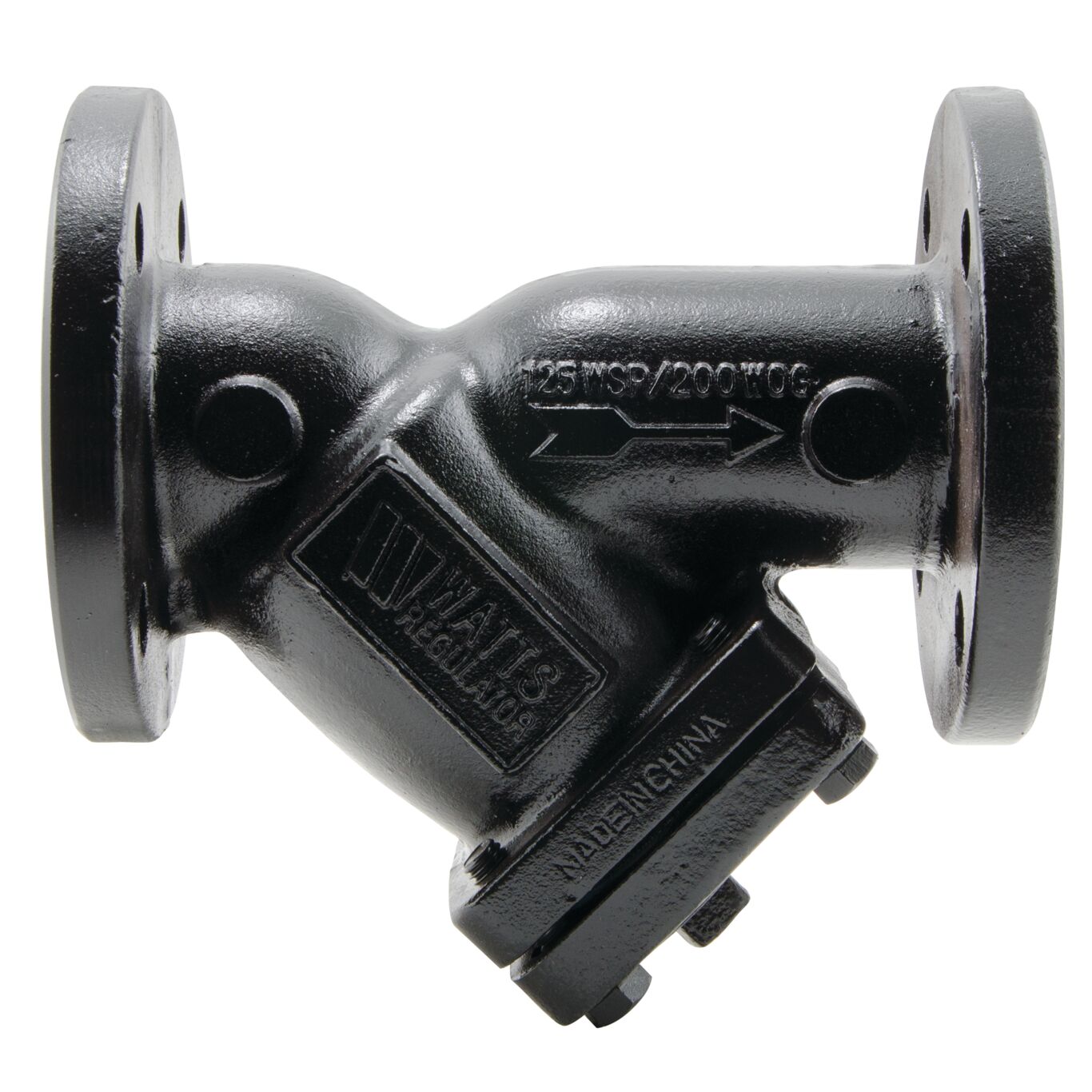

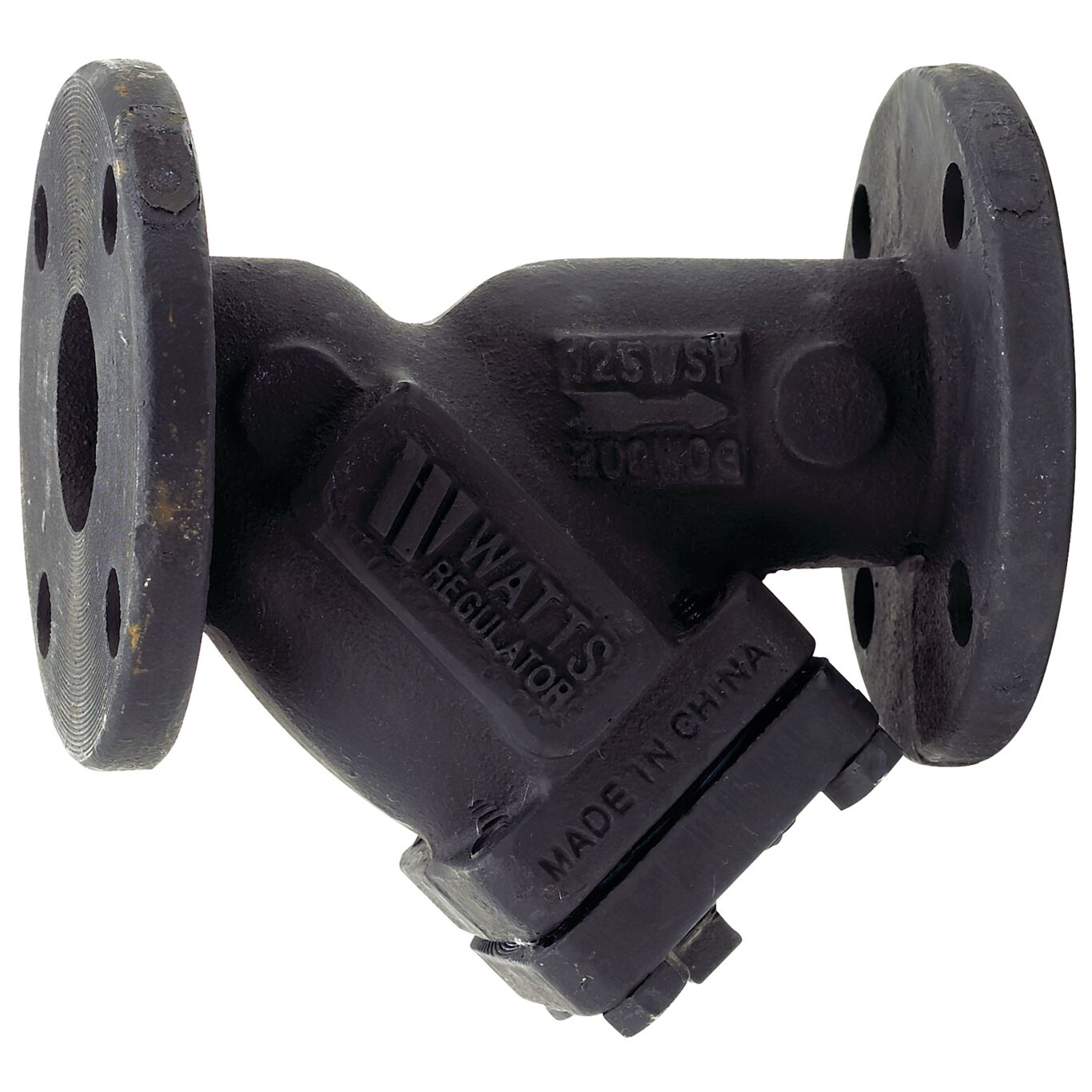

The WATTS 77F-DI-125 4 Flg Wye Strn features a wye pattern and a Class B cast iron body with Class 125 flanged connections. It also includes a cast iron blow down plug, stainless steel screen, and a bolted and tapped iron retainer cap with graphite gasket and iron blow down plug. Maximum Pressure (non-shock): 200psi (13.8 bar) at 210°F (99°C) WOG, 125psi (8.6 bar) at 353°F (178°C) WSP.

• Wye pattern
• Class B cast iron body
• Class 125 flanged connections

Product Highlights

The WATTS 77F-DI-125 is a durable cast iron, flanged wye strainer with a stainless steel screen and bolted retainer cap.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 77F-DI-125

Technical Specifications

• MPN: 77F-DI-125
• Material: Cast Iron
• Connection Type: Flanged
• Brand: WATTS
• Manufacturer: WATTS REGULATOR/DRAINAGE CO
• Body Material: Class B cast iron
• Class: 125
• Screen Material: Stainless steel
• Retainer Cap: Bolted and tapped iron retainer cap with graphite gasket and iron blow-down plug
• Maximum Pressure (non-shock): 200psi (13.8 bar) at 210°F (99°C) WOG, 125psi (8.6 bar) at 353°F (178°C) WSP
