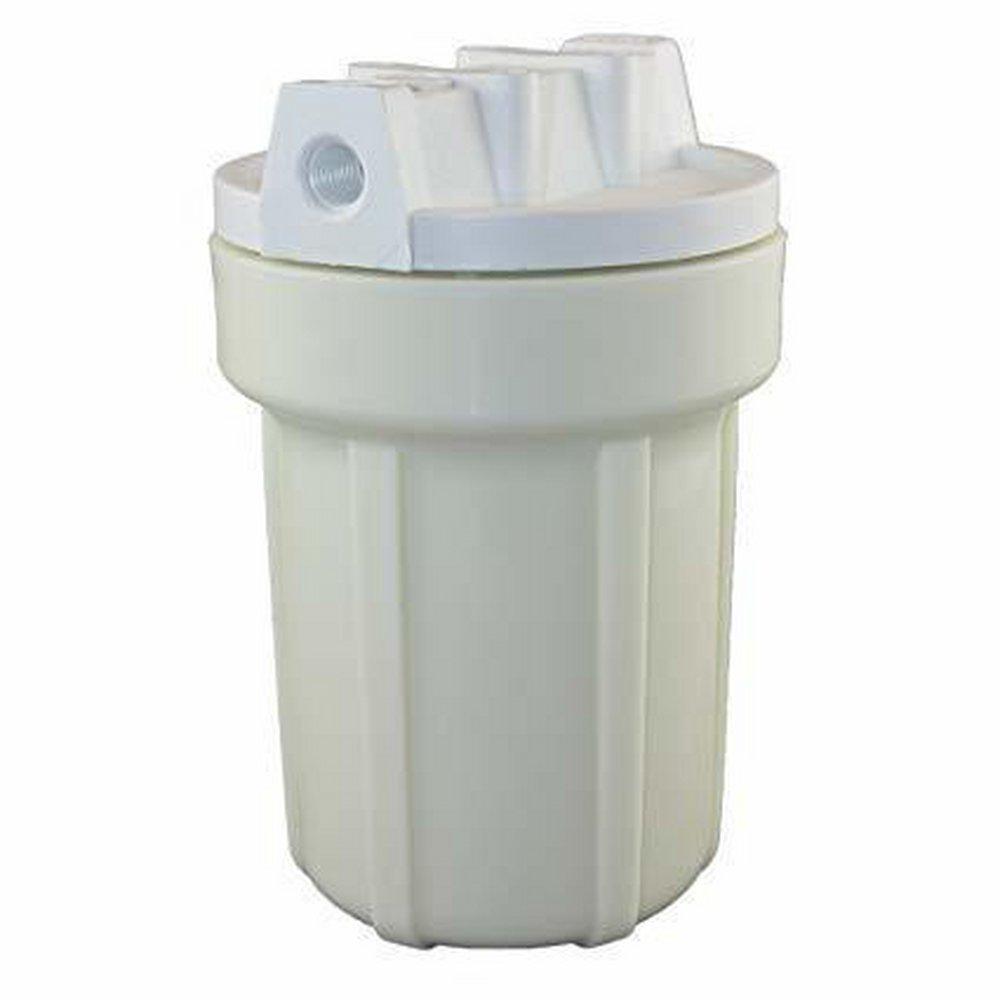

Watts 7100589 5 in White Housing and White Cap with 1/2 in Port

Product Description

The Watts 7100589 is a 5 inch white housing with a white cap that accepts slim-line filters. The housing cap features a 1/2 inch NPT pipe size and is made of heavy-duty construction using high-quality FDA grade polypropylene. It has superior chemical resistance from many aggressive chemicals.

• 7.5 Inches long
• Thick side walls
• Superior resistance from many aggressive chemicals

Product Highlights

The housing lid features a buttress thread design for superior sealing and security. It is rated at temperatures up to 125 degrees F (52 degrees C) and the water pressure is rated up to 125 psi (8.75 bar).

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 7100589

Technical Specifications

• Brand: Watts
• Buy American Act Compliant: NO
• Cap Color: White
• CAProp65-InScope: No
• EAN: 098268085310
• High Temperature: No
• Housing Finish: Smooth Plastic
• Housing Material: Polypropylene
• Inlet Connection Size: 1/2 IN
• Inlet Connection Thread Type: FPT
• Inlet Connection Type: Female Threaded
• Lead Free: YES
• Lid Closure Type: Screw-twist
• Maximum Pressure-PSI: 125
• Maximum Temperature-Fahrenheit: 100
• Minimum Temperature-Fahrenheit: 40
• O-ring Material: EPDM
• Outlet Connection Size: 1/2 IN
• Outlet Connection Thread Type: FPT
• Outlet Connection Type: Female Threaded
• Part Number: 7100589
• Pressure Drop: 0.6 to 1 PSI based on the micron
• Pressure Rating-BAR: 6.90
• Pressure Rating-PSI: 100
• Pressure Relief: No
• Series: PWHP
• Sump Color: White
• Collection: PWHP Series
• Connection Size: 1/2
• End Connection 1: Female Threaded
• End Connection 2: Female Threaded
• End Connections: Female Threaded
• Material: Plastic
• Material Type: Polypropylene
• Maximum Temperature: 100
• NSF Certified: No
• Pressure - Maximum: 125 psi
• Pressure Class: 100#
• UL Listed: No
• UPC: 098268085310
• Additional Information: FPT Thread Connection
• Filter/Cartridge Size: 5 in
• Size: 1/2 in
• Temperature Rating: 40 to 100 deg F
