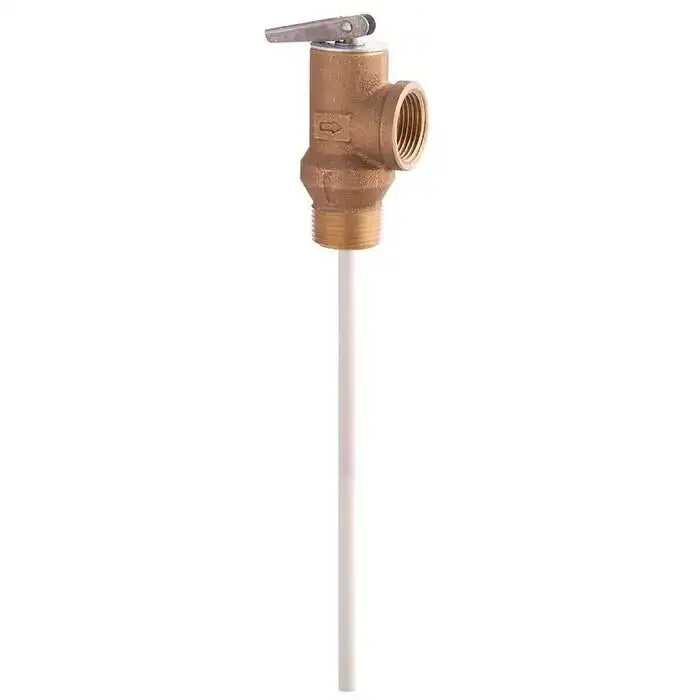

Watts 66110 100XL-8 150/210 temperature and pressure relief valve 150 psi 3/4 inch 8 inch

Product Description

The WATTS 66110 100XL Series Temperature and Pressure Relief Valve provides automatic temperature and pressure protection for water heaters and hot water storage tanks up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections. This valve includes a unique thermostat with a special thermo-bonded coating and an 8-inch extension thermostat for Model 100XL-8. It is ASME rated and CSA listed, with a temperature relief of 210°F and a pressure setting of 150 PSI.

• Features a unique thermostat with special thermo-bonded coating for accurate temperature sensing.
• Designed for emergency safety relief in water heater and hot water storage tank applications.
• ASME rated and CSA listed, ensuring compliance and reliable performance.

Product Highlights

Provides automatic temperature and pressure protection for hot water systems, featuring a brass body, NPT connections, and an accurate thermo-bonded thermostat.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 66110

Technical Specifications

• Brand: WATTS
• MPN: 66110
• UPC: 9826800723
• Model: 100XL-8
• Pressure/Temperature Rating: 150/210
• Nominal Size: 3/4 inch
• Valve Type: Temperature and Pressure Relief Valve
• Stem Length: 8 inch
• Pressure Setting: 150 PSI
• Part Number: 0066110
• Body Material: Brass
• Manufacturer: Watts Water Technologies
• Media: Water
• Series: 100XL
• Temperature Rating: 210 deg F
• Inlet Connection Type: NPT Male
• Outlet Connection Type: NPT Female
• Depth: 1.188 in
• Height: 3.172 in
• Number of Ports: 2
• Width: 1.156 in
• Category: Relief Valves
• Item Type: Relief Valves
• Sub Type: Relief Valve
