Watts 6551631 Lead Free Thermostatic Mixing Valve 1/2 IN Replacement MPN 6551631

Product Description

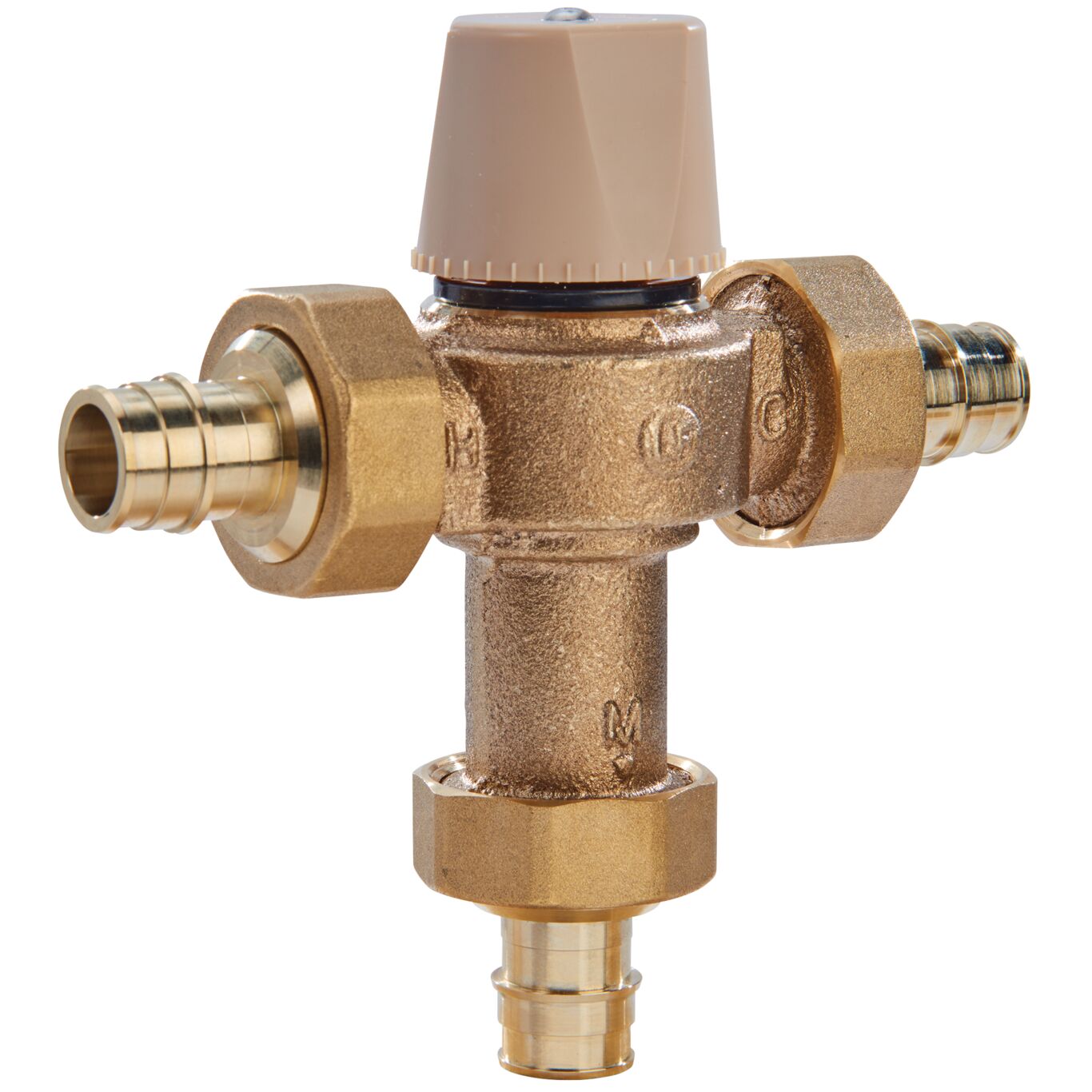

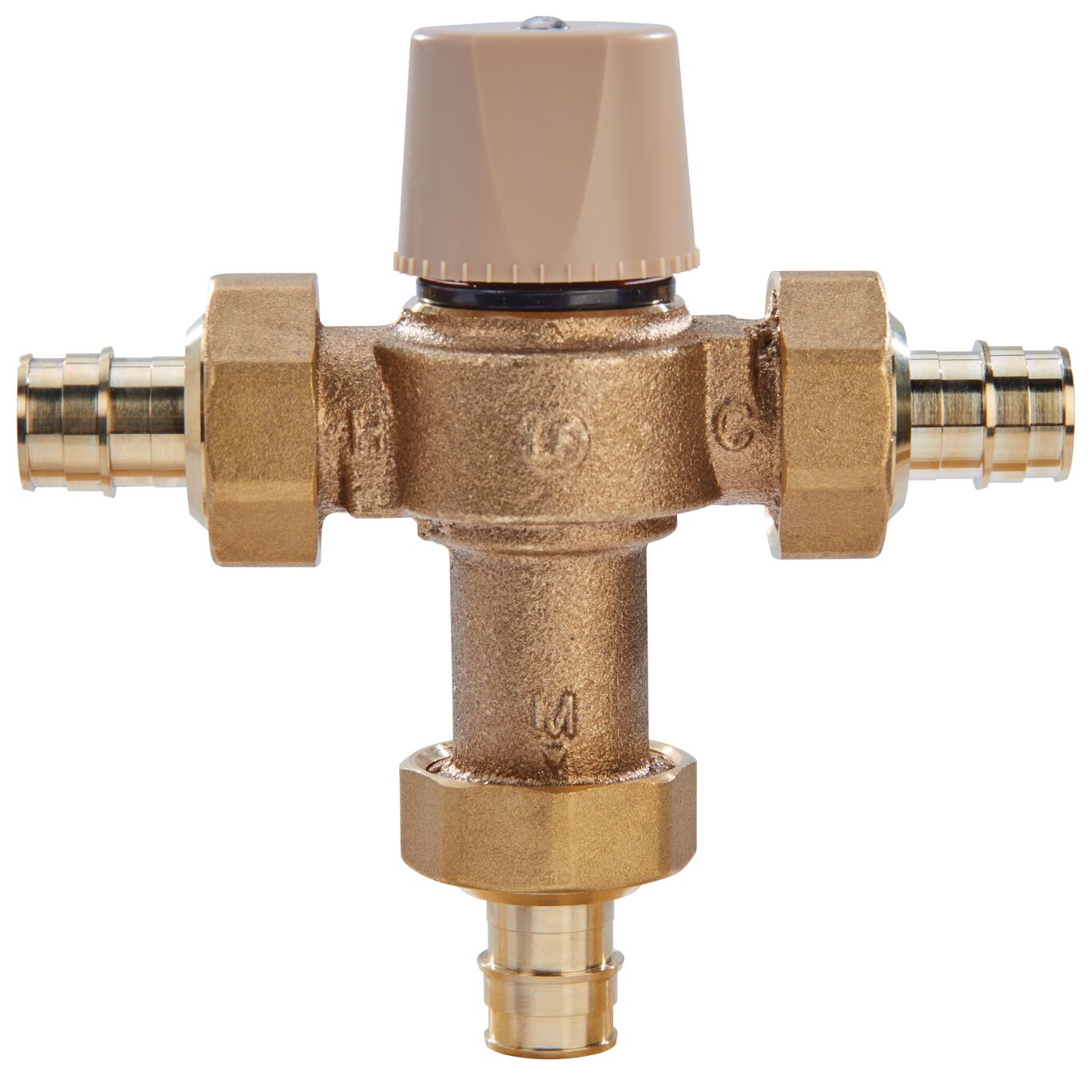

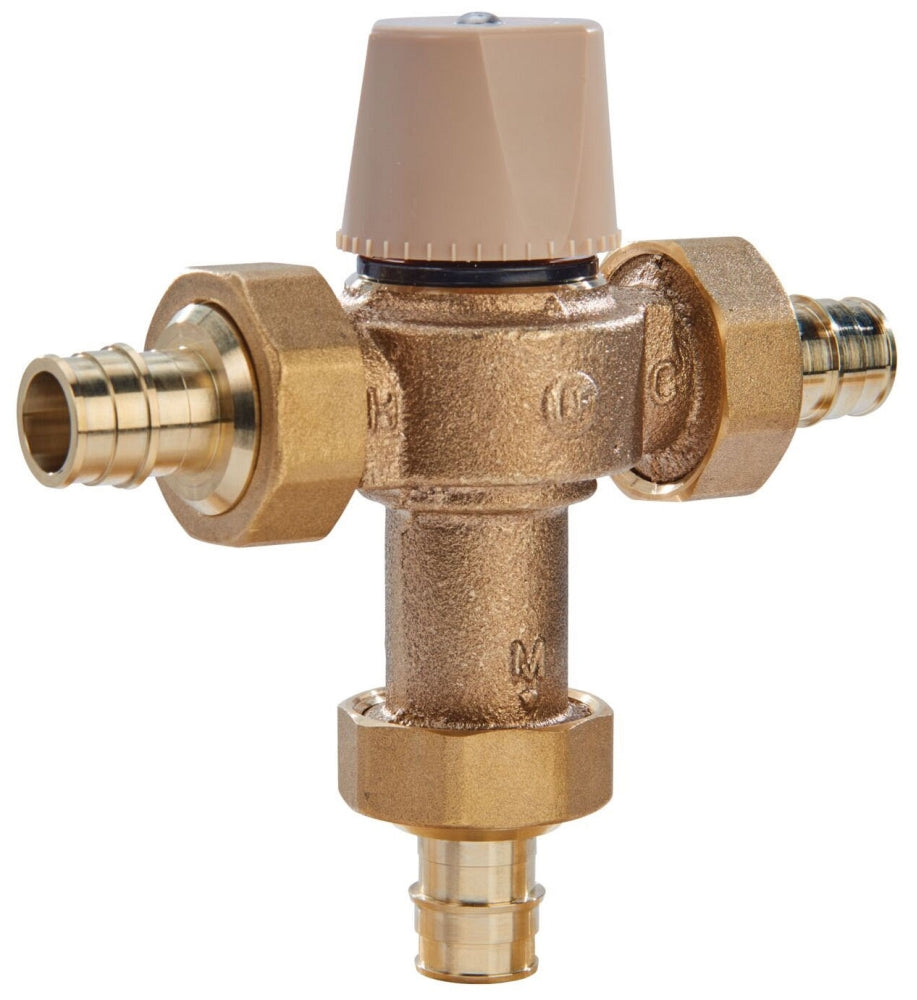

The Watts 6551631 is a 1/2 inch lead-free thermostatic mixing valve designed for various applications, including residential and commercial. It delivers tempered water efficiently to bathrooms and lavatories. The valve employs a double throttling design which enables precise control of both hot and cold water before it reaches the mixed outlet. The adjustable temperature range at the mixed outlet is from eighty to one hundred twenty degrees Fahrenheit.

• Lead-free brass construction ensures safety.
• Thermal actuation provides accurate temperature management.
• Locking mechanism maintains the set temperature.

Product Highlights

This mixing valve is crucial for maintaining safe water temperatures.

Product Information

Standard Information

• Brand: Watts
• Part Number: 6551631

Technical Specifications

• Body Material: Lead Free Copper Silicon Alloy
• Flow Rate: 0.5 to 20 GPM
• Hot Inlet Connection Size: 1/2 IN
• Cold Water Inlet Connection Size: 1/2 IN
• Temperature Adjustment Range: 80 to 120 degree F
• Pressure Rating: 150 PSI
• Maximum Working Pressure: 150 PSI
• Nominal Size: 1/2 INCH X 1/2 INCH
