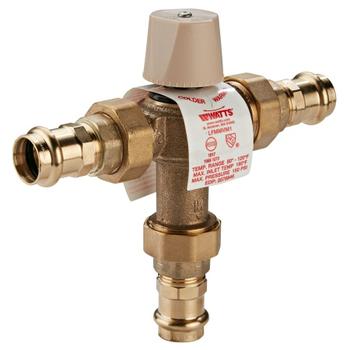

Watts 6550793 1 LFMMVM1-UT (w/press) Thermostatic Mixing Valve

Product Description

The Watts 6550793 is a thermostatic mixing valve designed for residential, commercial, and institutional use. This valve controls the mixing of hot and cold water for domestic applications. The valve has a nominal size of one inch and offers features like thermal actuation technology for precise temperature control.

• Lead free copper silicon alloy body
• Maximum pressure rating of 150 psi
• Adjustable temperature range of 80 to 120 degrees F

Product Highlights

Built with a double throttling design, the valve ensures effective control of both hot and cold water supplies. It features Viega ProPress connections, solid wax hydraulic principle thermostat, integral filter washers, and check valves to prevent cross flow.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Type: Thermostatic Mixing Valve

Technical Specifications

• Body Material: Copper Silicon Alloy
• Flow Capacity: 20 gpm
• Temperature Rating: 200 degrees F
• Pressure Rating: 150 psi
• Inlet to Outlet Length: 5-5/16 inches
• End Style: Threaded Union
• Series: LFMMV
• Softgoods Material: Buna-N/EPDM O-Ring
