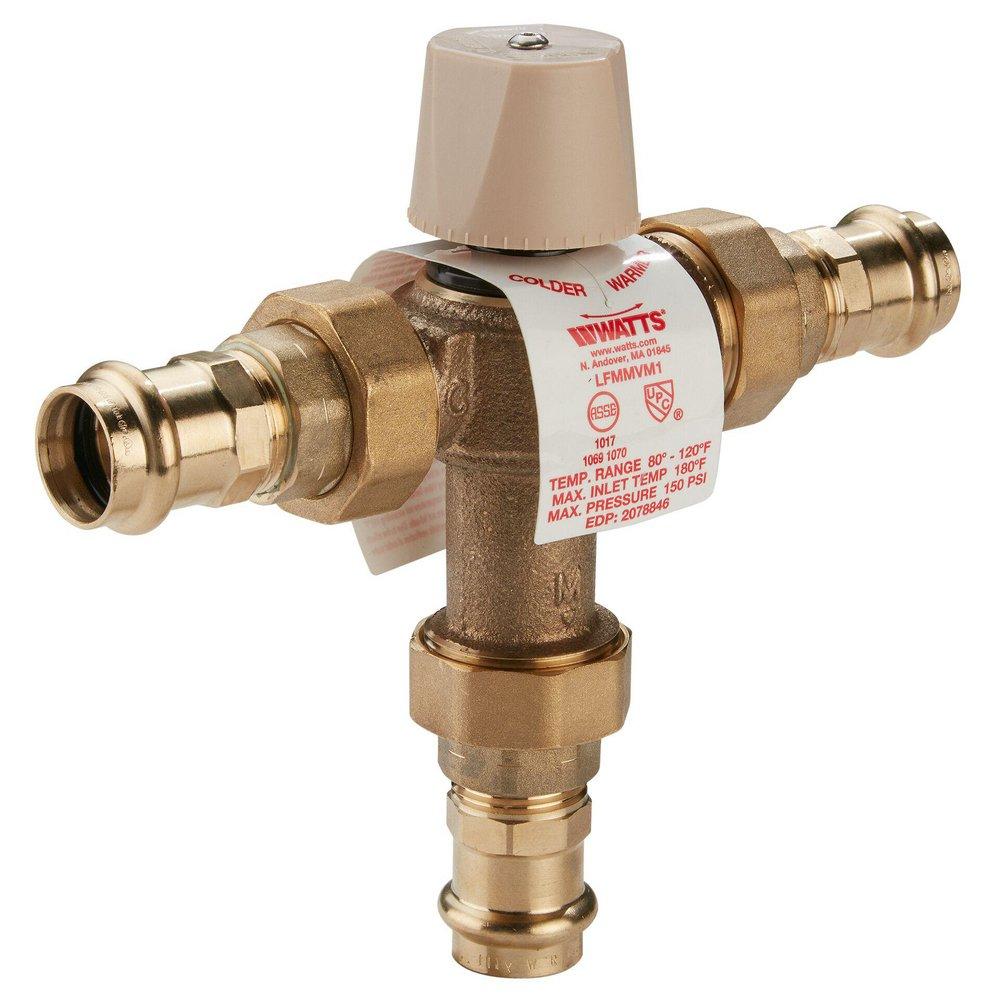

Watts 6550792 Series LFMMV 3/4 in. Union Threaded Thermostat Mixing Valve

Product Description

The Watts 6550792 Series LFMMV is a 3/4 inch union threaded thermostat mixing valve designed for effective temperature regulation in water supply systems. This valve utilizes thermal actuation technology to maintain precise temperature control for both hot and cold water sources.

• Compatible with Viega ProPress connections.
• Offers a maximum pressure rating of 150 psi.
• Temperature range adjustable from 80 to 120 degrees Fahrenheit.

Product Highlights

This valve features a locking mechanism to secure temperature settings, integral filter washers, and check valves to prevent cross flow.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Model Number: 6550792

Technical Specifications

• Nominal Size: 3/4 inch
• Body Material: Copper Silicon Alloy
• Flow Capacity: 20 gpm
• Pressure Rating: 150 psi
• Temperature Rating: 200 degrees Fahrenheit
• Inlet to Outlet Length: 4-7/8 inches
• End Style: Threaded Union
• Trim Material: Stainless Steel
