Product Description

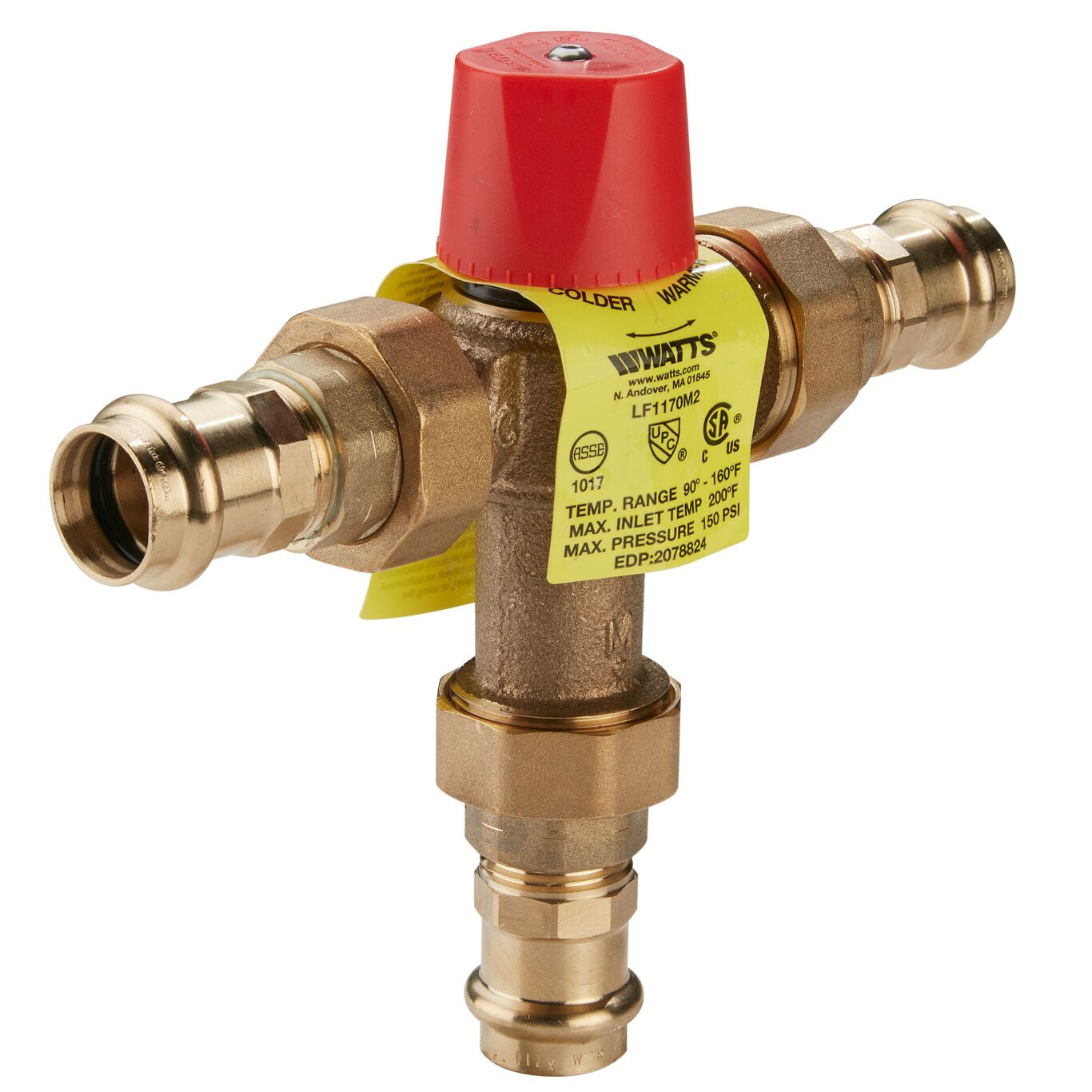

Watts 6550788 LF1170 thermostat mixing valve is a lead-free hot water temperature control valve that uses a solid wax hydraulic thermostat for thermal actuation. The 1/2 in press x press Viega ProPress connections combine hot and cold flows via a double-throttling mixing chamber to maintain an adjustable temperature range of 90 to 160 F across 0.5 to 23 GPM and a maximum working pressure of 150 psi. Includes integral filter washers, check valves, virtual shutoff, and a locking temperature setting.
- Adjustable temperature range 90 to 160 F (32 to 71 C); outlet accuracy ±7 F; minimum differential temperature 5 F.
- Press x press Viega ProPress connections, 1/2 in size; flow rate 0.5 to 23 GPM; maximum working pressure 150 psi.
- Lead-free copper silicon alloy body with integral filter washers and check valves; solid wax hydraulic thermostat; virtual shutoff on loss of cold water and locking mechanism for temperature setting.
Product Highlights
1/2 in lead-free thermostatic mixing valve; adjustable 90 to 160 F; press x press Viega ProPress; 0.5 to 23 GPM; 150 psi; CSA B125, ASSE 1017, IAPMO, UPC listed.
Product Information
Standard Information
-
Brand: WATTS
-
Manufacturer Part Number: 6550788
Technical Specifications
-
Brand: Watts
-
MPN: 6550788
-
Model / Series: LF1170
-
Manufacturer Part No.: WLF1170M2D
-
Product Name: Thermostat Mixing Valve
-
Size: 1/2 in
-
Connection Type: Press x Press (Viega ProPress)
-
Connection Size: 1/2 in
-
Connection Method: Press
-
Material: Lead free copper silicon alloy (lead-free brass)
-
Lead Free: Yes
-
Thermostat Principle: Solid wax hydraulic
-
Temperature Range: 90 to 160 F (32 to 71 C)
-
Min Temperature: 90 F
-
Max Temperature: 160 F
-
Flow Rate: 0.5 to 23 GPM
-
Capacity: 23 GPM at 45 PSI
-
Maximum Pressure: 150 psi (10.3 bar)
-
Maximum Working Pressure-PSI: 150
-
Minimum Differential Temperature-F: 5
-
Minimum Static Pressure-PSI: 30
-
Outlet Temperature Accuracy: +/- 7 F
-
Weight: 2.0 lb
-
Certifications: CSA B125; ASSE 1017; IAPMO; UPC
-
Compatibility: Viega ProPress
-

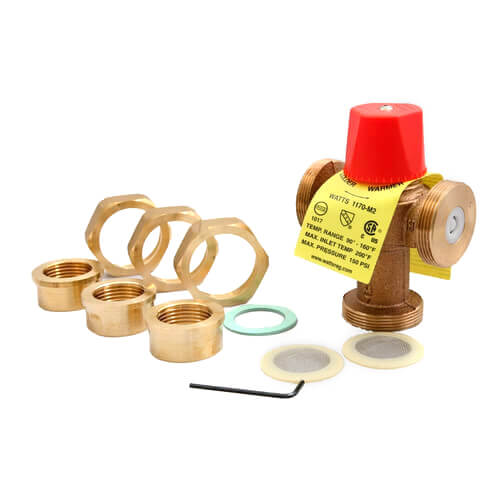

Valve Features: Integral filter washers and check valves; double-throttling design; virtual shutoff on loss of cold water; locking mechanism for temperature setting
-
Application: Point of use; heating; radiant heat
