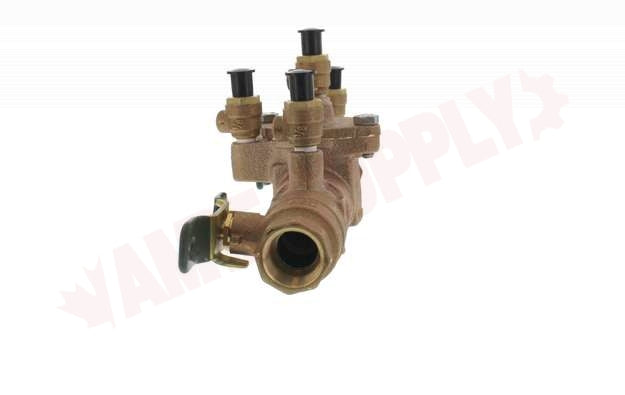

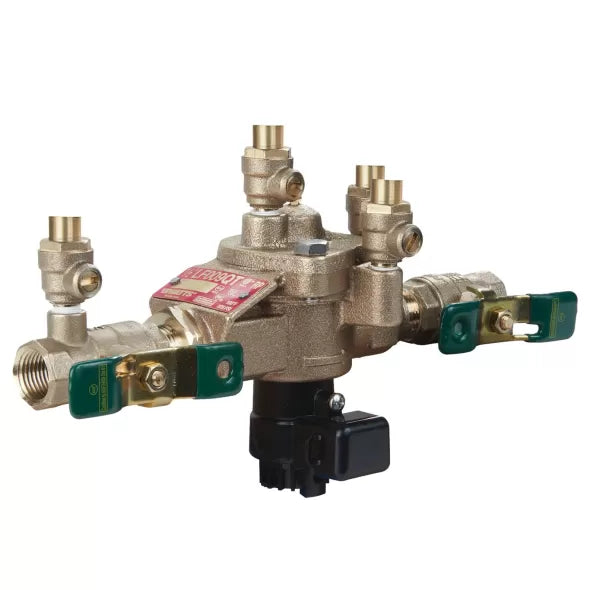

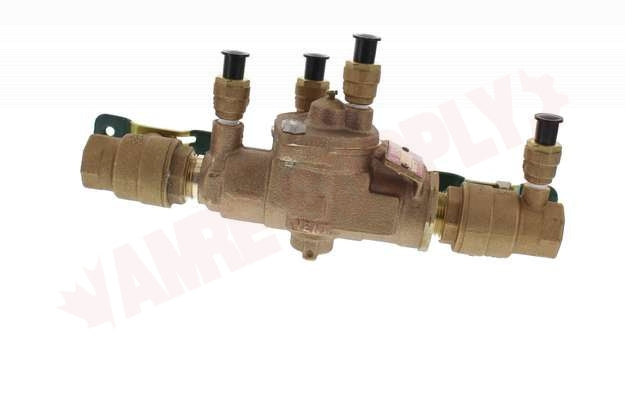

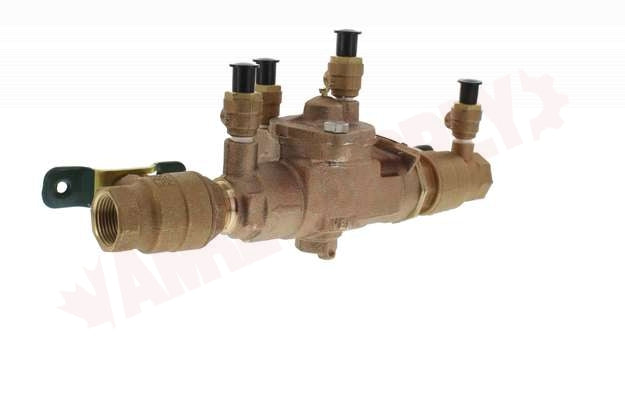

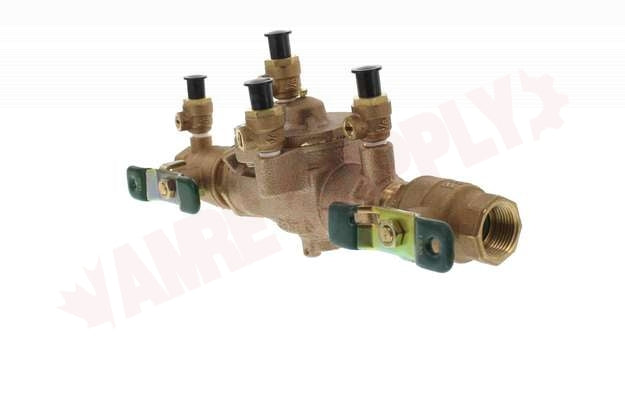

WATTS 63030 Watts 009M3-QT 3/4 Reduced Pressure Zone Assembly

Product Description

The Watts 009M3-QT is a three-fourths inch reduced pressure zone assembly that serves to prevent the backflow of contaminated water into the clean water supply. This assembly is a reliable solution for backsiphonage and backpressure conditions.

• Constructed with a bronze body for durability.
• Features quarter-turn ball valve shutoffs for easy operation.
• Equipped with replaceable check seats for maintenance.

Product Highlights

This assembly offers protection in continuous pressure piping applications and at cross-connections considered health hazards.

Product Information

Standard Information

• Brand: Watts
• MPN: 63030

Technical Specifications

• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Inlet Connection Size: 3/4 inches
• Outlet Connection Size: 3/4 inches
• Body Material: Bronze
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Maximum Working Pressure: 175 PSI
• Maximum Temperature: 180 degrees Fahrenheit
