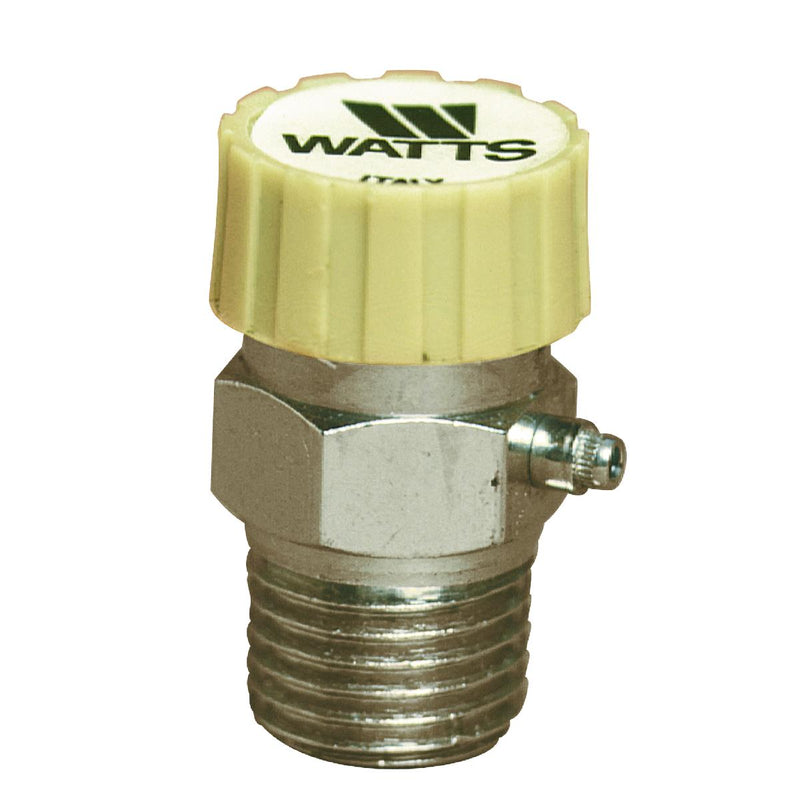

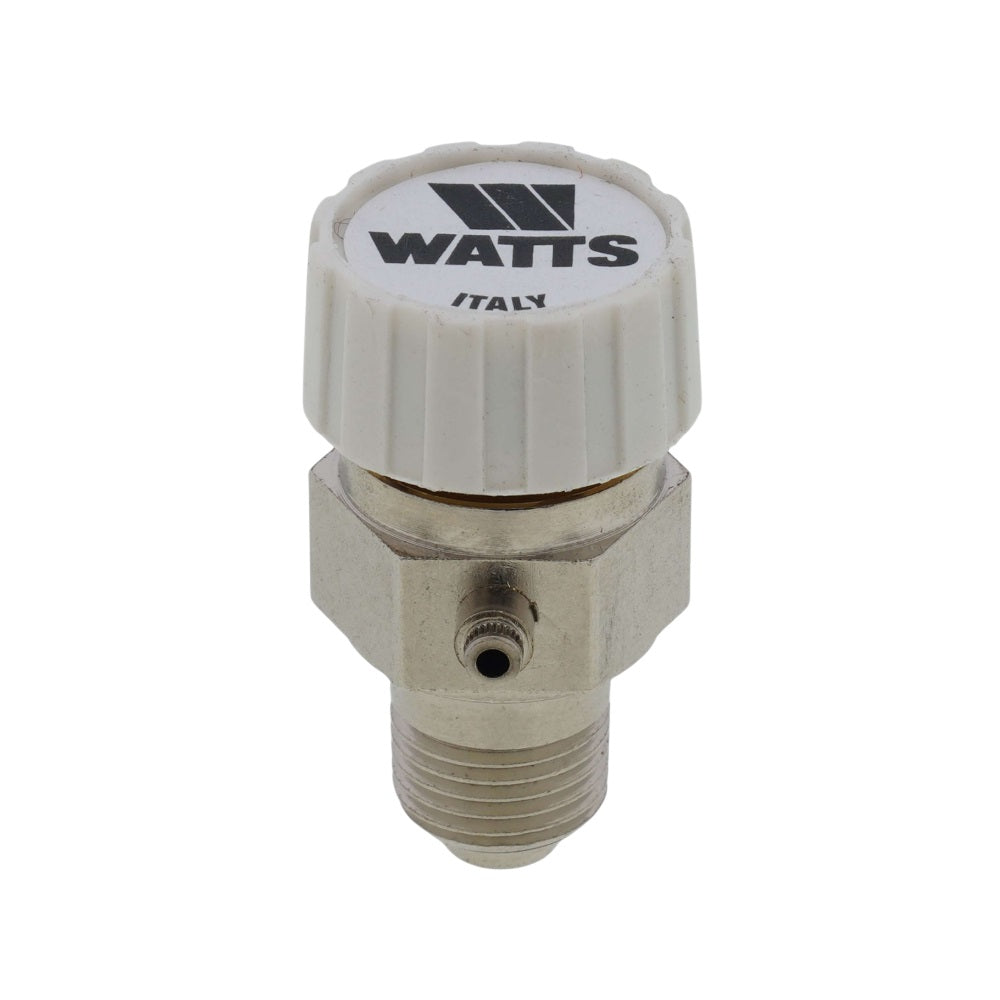

Watts 590712 HAV-1/8 inches Air Vent

Product Description

The WATTS 590712 HAV-1/8" Air Vent is designed for automatic or manual air release in hydronic heating applications. It is used in commercial, residential, and industrial settings for baseboards, convectors, radiators, and high points in piping systems. The valve has a maximum pressure of 125 psi and a temperature range of 140 to 240 degrees F.

• Features a chrome brass body
• Includes a durable check valve
• Offers a quick venting design

Product Highlights

This air vent provides automatic or manual air venting in hydronic heating systems. Its cartridge can be easily maintained or replaced without system shutdown.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 590712

Technical Specifications

• Air Venting: Automatic and Manual
• Body Material: Brass
• Body Pattern: Vertical
• Bottom Tapping: Yes
• Bottom Tapping Size: 1/8 IN
• Brand: Watts
• Hydronic Item Type: Air Vent
• Inlet Connection Size: 1/8 IN
• Inlet Connection Size-Metric: 3 MM
• Inlet Connection Type: Male Threaded
• Inlet Thread Type: NPT
• Maximum Operating Temperature-Fahrenheit: 240
• Maximum Pressure-PSI: 125
• Maximum Steam Pressure-PSI: 10
• Maximum Temperature-Fahrenheit: 240
• Maximum Water Pressure-PSI: 125
• Maximum Working Pressure-PSI: 125
• Minimum Working Pressure-PSI: 1.45
• Part Number: 0590712
• Pipe Plug: No
• Series: HAV
• Side Tapping: No
• Strainer: No
• Temperature Range: 140 to 240 degrees F
• Top Tapping: No
• Vacuum Breaker: No
• Venting Capacity: 1.06 SCFM at 71 PSI
• Height: 1.61 Inch
• Connection Type: Male NPT
• Finish: Chrome-Plated
• Material: Brass
• Nominal Size: 1/8 in
• Pressure Rating: 1.45 to 125 psi Working, 130 psi Test, 10 psi Steam
• Product Type: Automatic Air Vents
• Temperature Rating: 140 to 240 deg F
