WATTS 556016 3/4 Lead Free T&P Relief Valve w/ Flood Sensor Connectivity 150 psi

Product Description

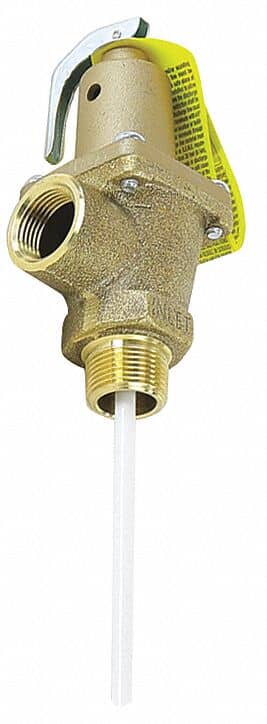

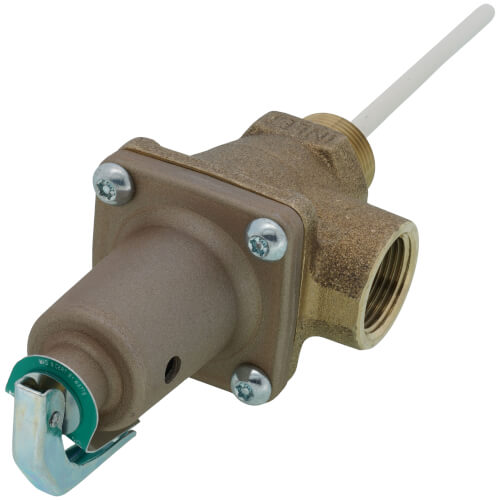

The Watts 556016 is a lead free automatic reseating temperature and pressure relief valve designed for use with hot water systems. With a three-fourths inch NPTF male inlet and a three-fourths inch NPTF female outlet, it suits various applications. This valve has a pressure relief setpoint of 150 psi and a temperature relief setpoint of 210 degrees Fahrenheit.

• Features SentryPlus Alert technology for flood detection.

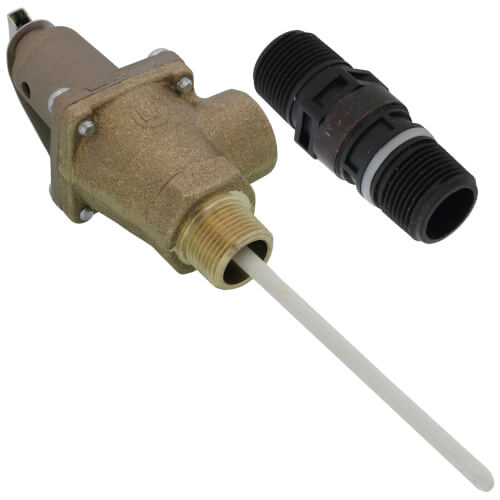

• Requires activation kit for the flood sensor.
• Constructed from lead-free copper silicon alloy.

Product Highlights

Designed to protect hot water tanks and heaters, this valve includes tamper-resistant features and can be installed in commercial hot water outlets.

Product Information

Standard Information

• Brand: Watts
• MPN: 556016

Technical Specifications

• Body Material: Lead Free Copper Silicon Alloy
• Inlet Connection Size: 3/4 IN
• Inlet Connection Type: Male Threaded
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Pressure Relief Setting: 150 psi
• Thermostat Probe Length: 5 IN
• Maximum Temperature: 210 Fahrenheit
• Application: Heating
• Valve Size: 3/4 IN
• Piping Configuration: Angle
• BTU Rating: 205,000 BTU/HR
