Product Description

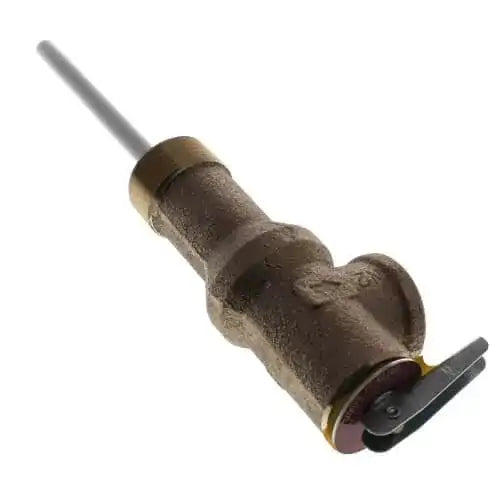

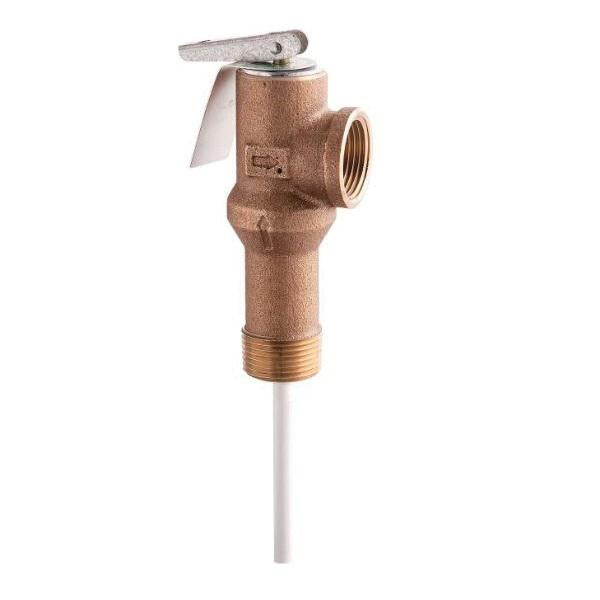

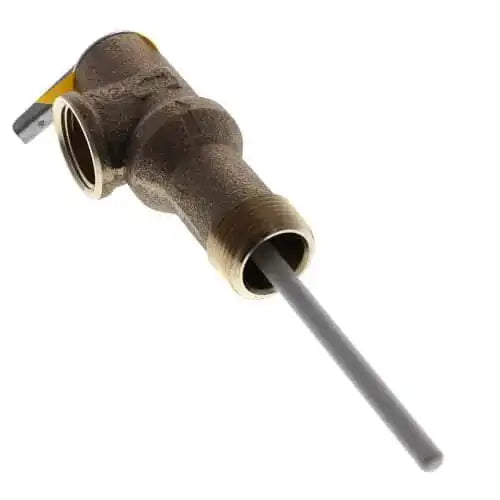

The Watts 556003 is a temperature and pressure relief valve designed for water heaters and storage tanks. It offers automatic protection against excessive temperature and pressure, accommodating hot water supply tanks and heaters with a capacity of up to one hundred five thousand BTU per hour. The valve features a lead-free copper alloy body with male threaded and female threaded outlet connections for easy installation.
- Lead-free construction for safe drinking water use.
- Unique thermostat design with enhanced durability.
- Stainless steel spring for reliability and longevity.
Product Highlights
This device ensures the safe operation of water heating systems by preventing pressure buildup and temperature spikes.
Product Information
Standard Information
-
Manufacturer: Watts
-
Manufacturer #: 556003
Technical Specifications
-
Parts Town #: WATT556003
-
Applicable Standard: ANSI Z21.22, ASME, CSA
-
Application: Water Heater, Hot Water Storage Tank
-
Body Material: Brass
-
End Connection: Male Threaded x Female Threaded
-
Inclusions/Features: Test Lever
-
Inlet Size: 3/4 Inch
-
Outlet Size: 3/4 Inch
-
Pressure Rating: 150 PSI
-
Set Pressure Range: 75 to 150 PSI
-
Spring Material: Stainless Steel
-
Temperature Rating: 210 Deg F
-
Type: Spring Operated
-
Sub Type: Spring Operated
-
End Style: MNPT x FNPT
-
Nominal Size: 3/4 in
-
Media: Water
-
Warranty: Limited
-
Actuator Type: Lever
-
Connection Type: MNPT x FNPT
-
Series: LFL100XL Series
