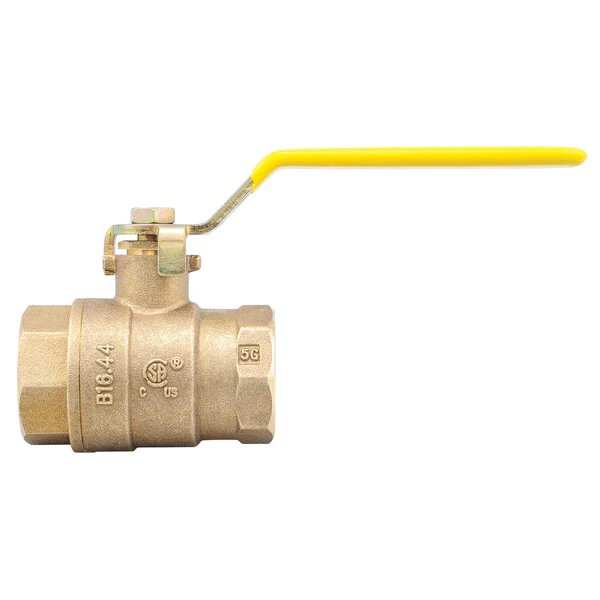

Watts 555125 2-piece Full Port Ball Valve 2 LFFBV-4

Product Description

The Watts 555125 is a 2-piece full port ball valve. Constructed from lead-free brass, this valve is suitable for a full range of liquids and gases in residential and commercial applications. It features threaded ends and a blowout proof stem, and is rated to 600 psi wog and 150 psi wsp.

• Lead-free brass construction
• Full port design
• Threaded ends
• Blowout proof stem
• Suitable for commercial and industrial applications

Product Highlights

Controls flow of liquids and gases in residential and commercial potable water applications with on/off lever.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 555125

Technical Specifications

• Ball/Stem Material: Brass
• Conn. Size: 2" Threaded
• Model #: LFFBV-4
• Size: 2 inch
• Cold Working Pressure: 600 lb.
• Working Steam Pressure: 150 lb.
• Standards/Approvals: California AB1953 lead-free approved, CSA approved under z21.15a for 1/2 psig (1/2"), CSA approved under 3-88 for 5 psig (1/2" - 2")
• Exterior Finish: Brass
• Inlet Connection Size: 2 Inches
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: NPT
• Maximum Pressure: 600 Pound per Square Inch
• Number of Ports: 2
• Thread Type: NPT
• Connector Type: Threaded
• Thread Size: 2 inches
• Valve Type: Ball Valve
• Outlet Connection Size: 2 Inches
• Brand Name: WATTS
• Model Number: LFFBV-4
• Manufacturer: Watts
• Set Name: 2-piece
• Number of Pieces: 1
• Unit Count: 1 Count
• Specification Met: NSF, RoHS
