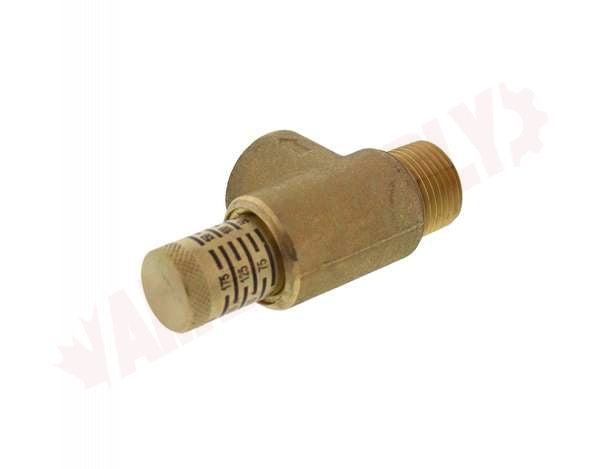

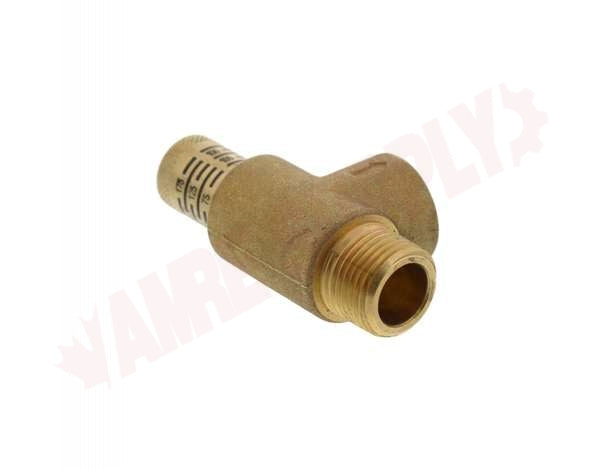

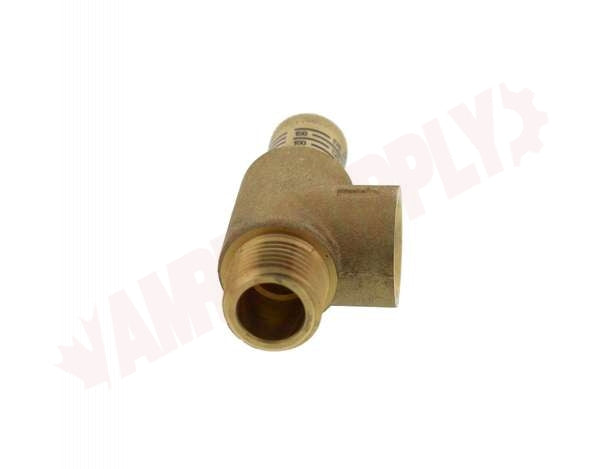

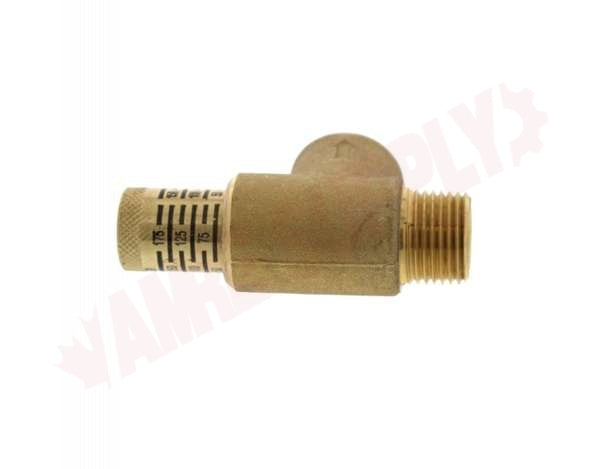

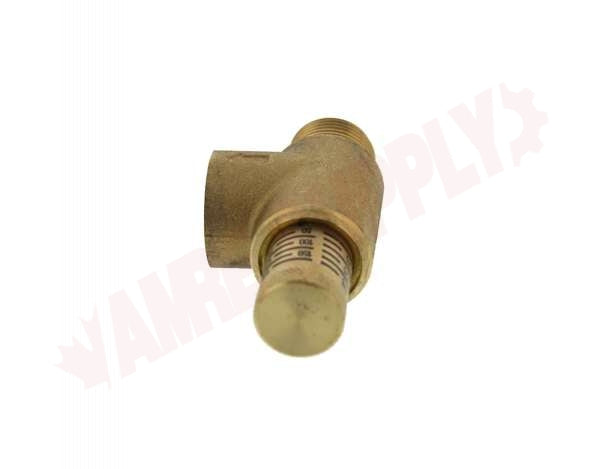

WATTS 530C.75 Series LF530C 1/2 in. Brass Pressure Relief Valve

Product Description

The WATTS 530C.75 is a pressure relief valve for commercial, residential, and industrial use. This valve protects systems with water, oil, or air from excessive pressure. It has a bronze body, MNPT threaded male inlet, and FNPT threaded female outlet. The design includes a stainless steel spring, brass bonnet, and Buna-N disc and O-ring. The valve adjusts for the necessary relief pressure.

• Bronze body with threaded connections for reliable performance.
• Calibrated adjustment to control relief pressure effectively.
• Suitable for systems containing air, oil, and water.

Product Highlights

This valve is essential for managing pressure in various applications, preventing potentially hazardous situations caused by pressure buildup.

Product Information

Standard Information

• Manufacturer Part Number: 530C.75
• Application: Water Heaters

Technical Specifications

• Valve Size: 1/2 in
• End Connection 1: MNPT
• End Connection 2: FNPT
• Pressure Class: 75#
• Max Pressure: 175 psi
• Max Temperature: 180
• Valve Body Material: Brass
• Valve Disc Material: Buna-N
• Height: 3 in
• Width: 1-5/8 in
• Weight: 0.625 lb
• Lead Law Compliant: Yes
• ANSI: ANSI Z21.22
