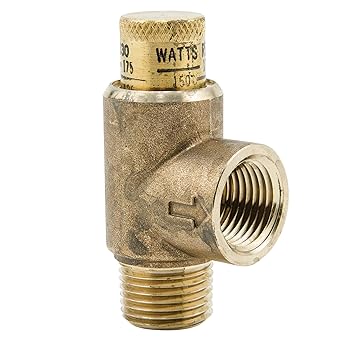

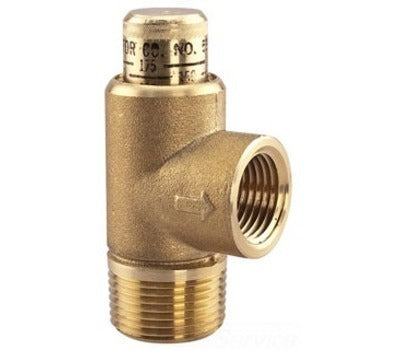

WATTS 530C 1/2 in. Male x Female Brass Calibrated Pressure Relief Valve

Product Description

The WATTS 530C is a 1/2 inch calibrated pressure relief valve designed for commercial, residential, and industrial use. This valve protects systems from excessive pressure in water, oil, or air applications. It features a robust bronze body, MNPT threaded inlet, and FNPT threaded outlet connections.

• Calibrated adjustment for setting required relief pressure.
• Compatible with thermal expansion systems.
• Constructed with stainless steel spring, brass bonnet, and Buna-N components.

Product Highlights

This valve is ideal for use when bypass thermal expansion relief is needed.

Product Information

Standard Information

• Brand: WATTS
• MPN: 530C

Technical Specifications

• Body Material: Bronze
• Inlet Connection Type: MNPT
• Outlet Connection Type: FNPT
• Spring Material: Stainless Steel
• Bonnet Material: Brass
• Disc Material: Buna-N
• O-ring Material: Buna-N
• Application: Not ASME approved for thermal expansion relief
