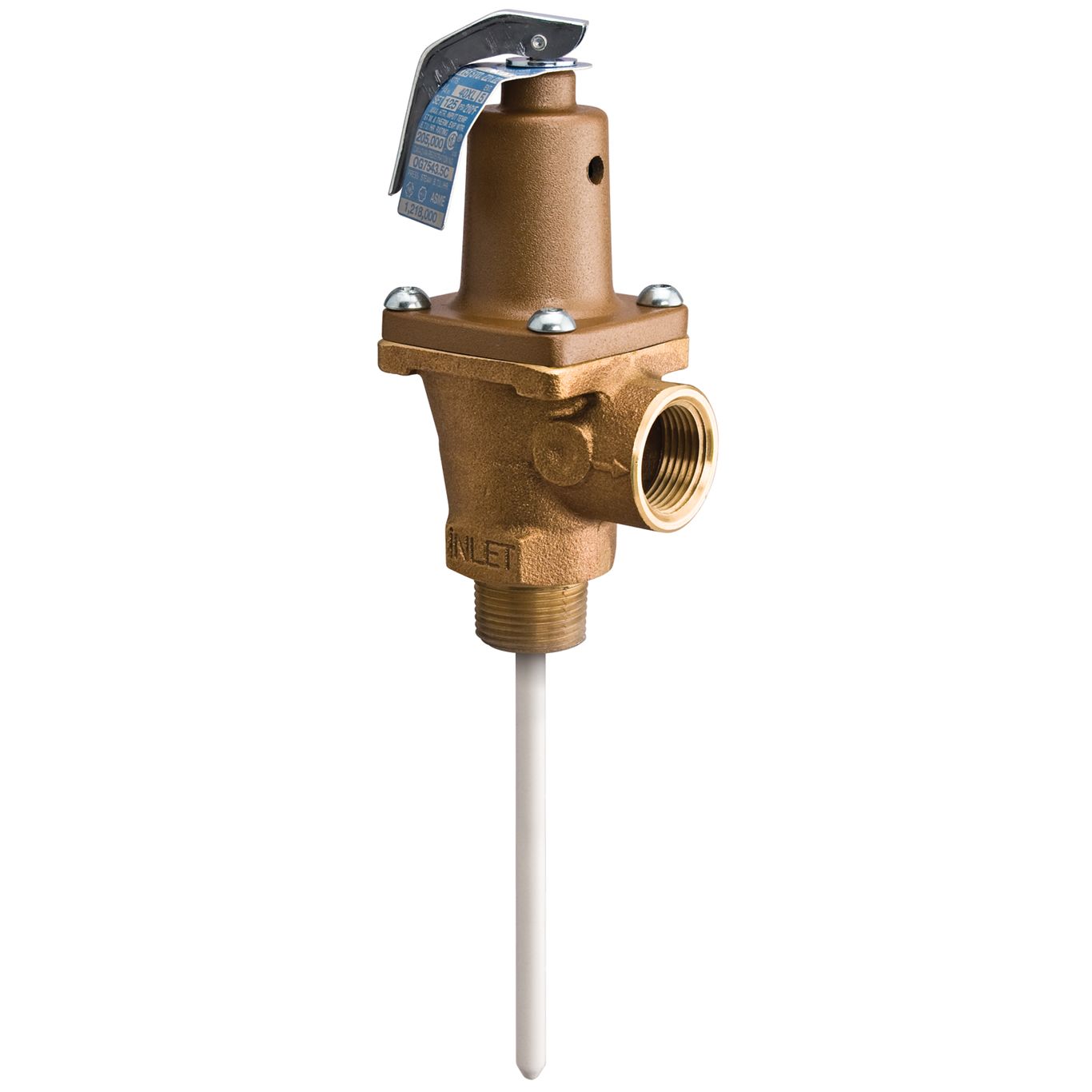

WATTS 40XL-7 T&P Relief Valve 150 psi

Product Description

The WATTS 40XL-7 is a temperature and pressure relief valve designed for commercial water heater applications. This valve ensures automatic temperature and pressure protection for hot water supply tanks and heaters.

• Bronze body with NPT male inlet and female outlet connections
• Pressure range of 75 to 150 psi and maximum temperature relief of 210°F
• Features a thermostat with a thermo-bonded coating and a test lever

Product Highlights

Use the WATTS 40XL-7 in heating applications to maintain safe operating conditions and prevent overheating.

Product Information

Standard Information

• Application: Heating
• Item: Temperature and Pressure Relief Valve

Technical Specifications

• Size: 1 inches
• CSA Rating (BTU/HR): 500000
• ASME Rating (BTU/HR): 2134000
• Pressure Set Point: 150 psi
• Material: Bronze
• Max Temperature: 210°F
• Inlet Type: MNPT
• Outlet Type: FNPT
• Body Material: Bronze
• Discharge Capacity: 1481000 BTU/h
• Inlet Size: 1 inches
• Inlet Connection Type: Male Threaded
• Maximum Working Pressure: 150 psi
• Outlet Size: 1 inches
• Outlet Connection Type: Female Threaded
• Protection Type: Temperature, Pressure
• Thermostat Material: Copper
