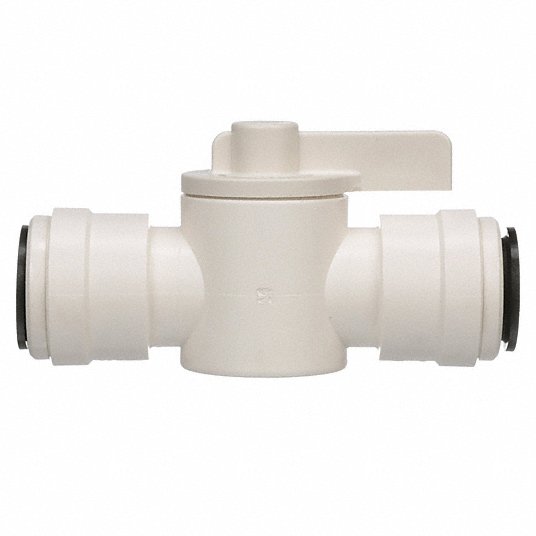

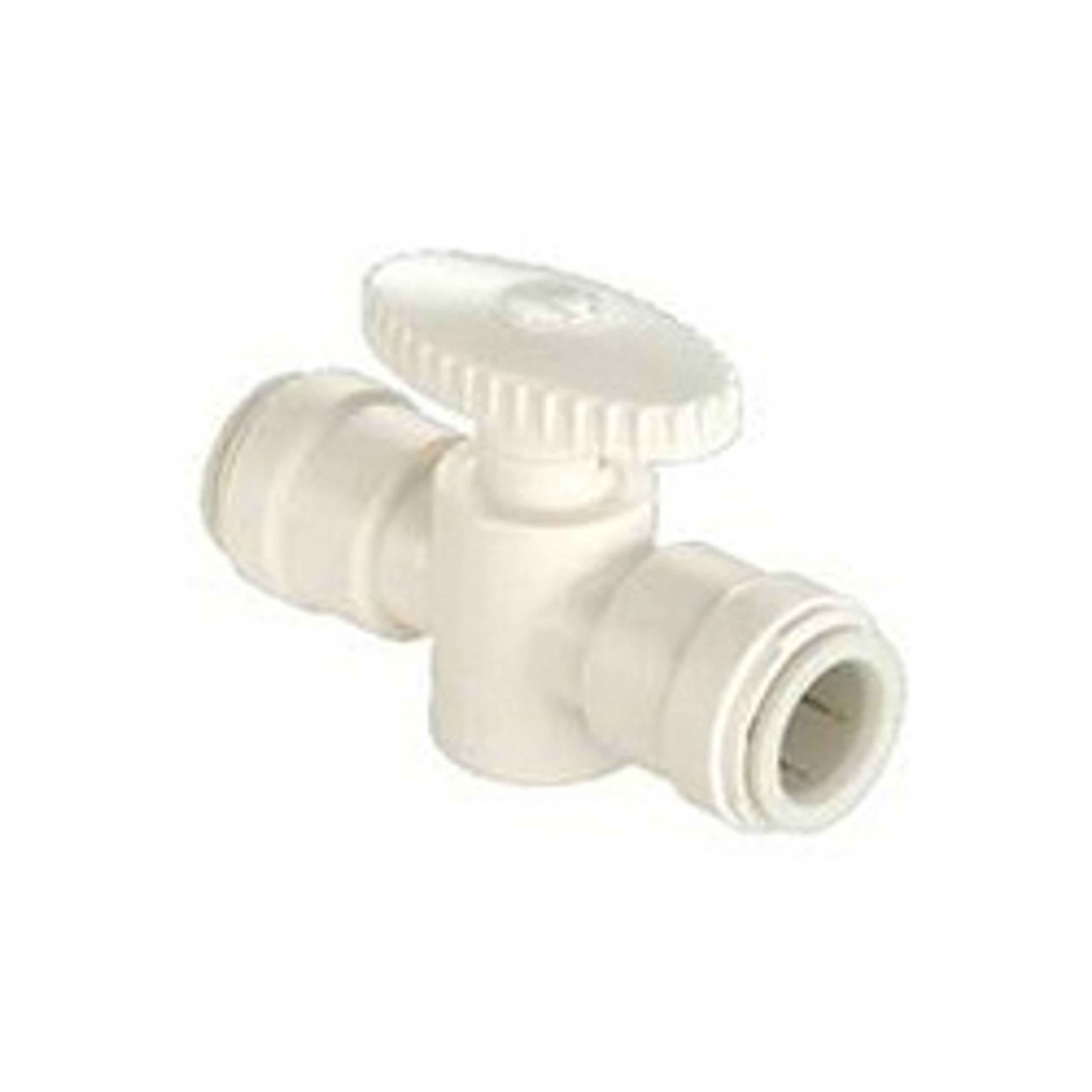

Watts 3539-14 Straight Valve 3539 3/4 in

Product Description

The Watts 3539-14 Straight Valve is a three-fourth inch CTS AquaLock plastic valve designed for use with copper, CPVC, PEX, and CTS rated pipe. This product simplifies installation as it requires no tools or tube inserts. It can handle both hot and cold water applications efficiently. The O-ring guide provides a secure, leak-free connection.

• No tools required for installation or removal.
• Rotates under pressure after installation for flexible adjustments.
• Suitable for both hot and cold water systems, including concealed applications.

Product Highlights

Designed for easy installation and versatility in plumbing systems.

Product Information

Standard Information

• Brand: Watts
• Series: Straight Valve 3539

Technical Specifications

• Inlet Connection Size: 3/4 inches
• Inlet Connection Type: Push to connect
• Outlet Connection Size: 3/4 inches
• Outlet Connection Type: Push to connect
• Body Material: PSU
• Handle Type: Tee
• Overall Length: 4.5 inches
• Max Operating Pressure: 250 psi
• Media Temperature Range: 0 °F to 180 °F
